Fusion FWD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
Splice Locations

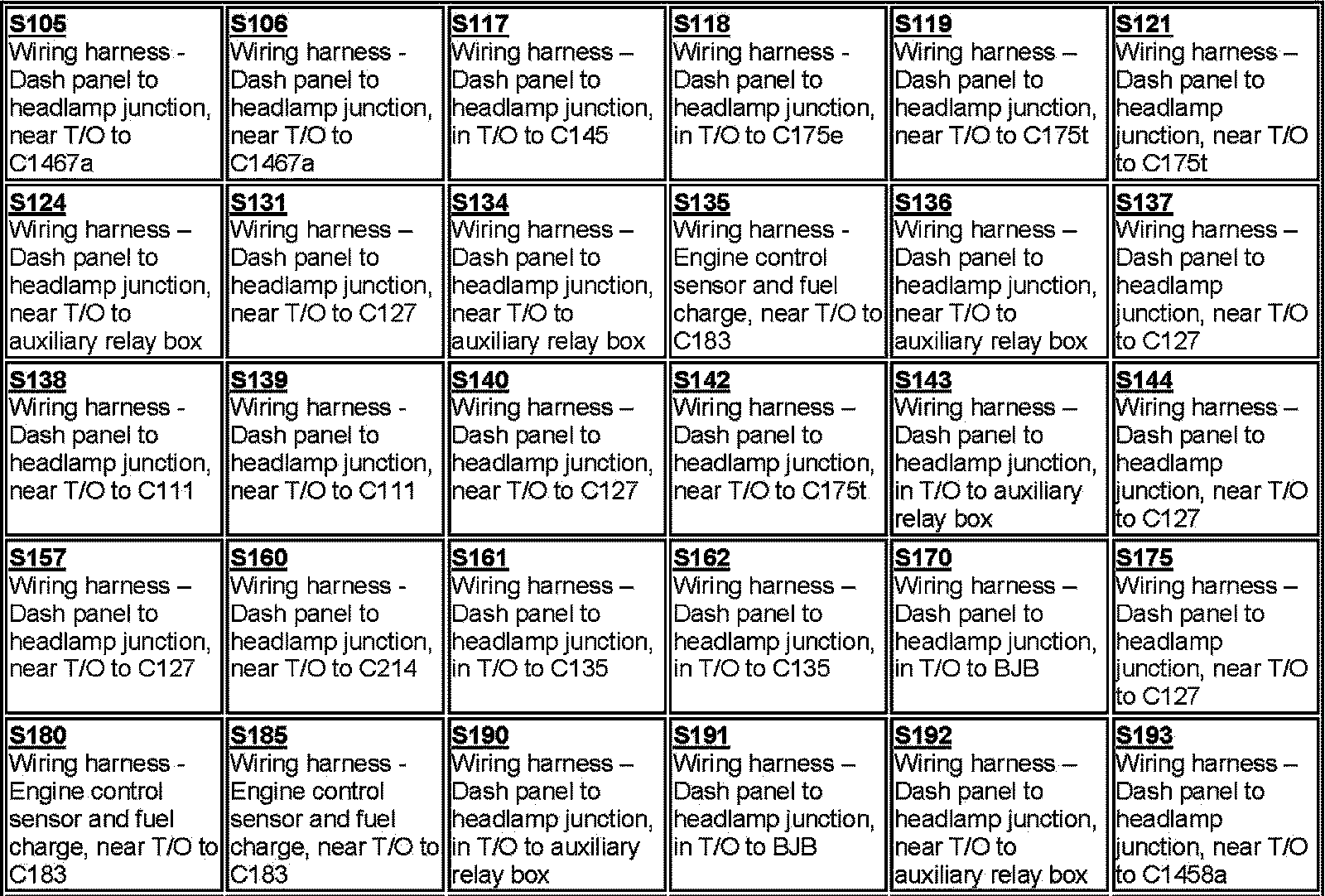

S106-S193:

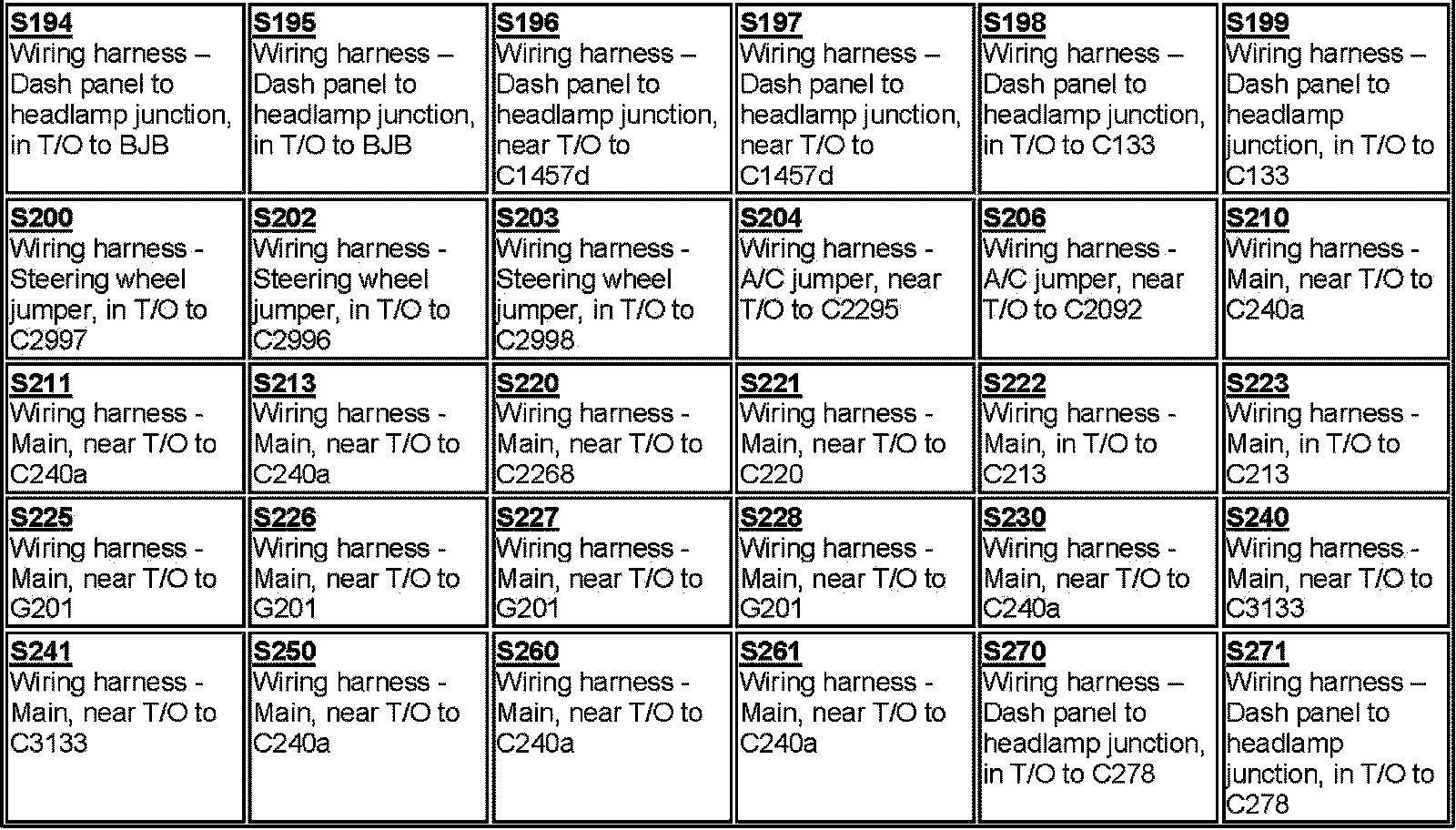

S194-S271:

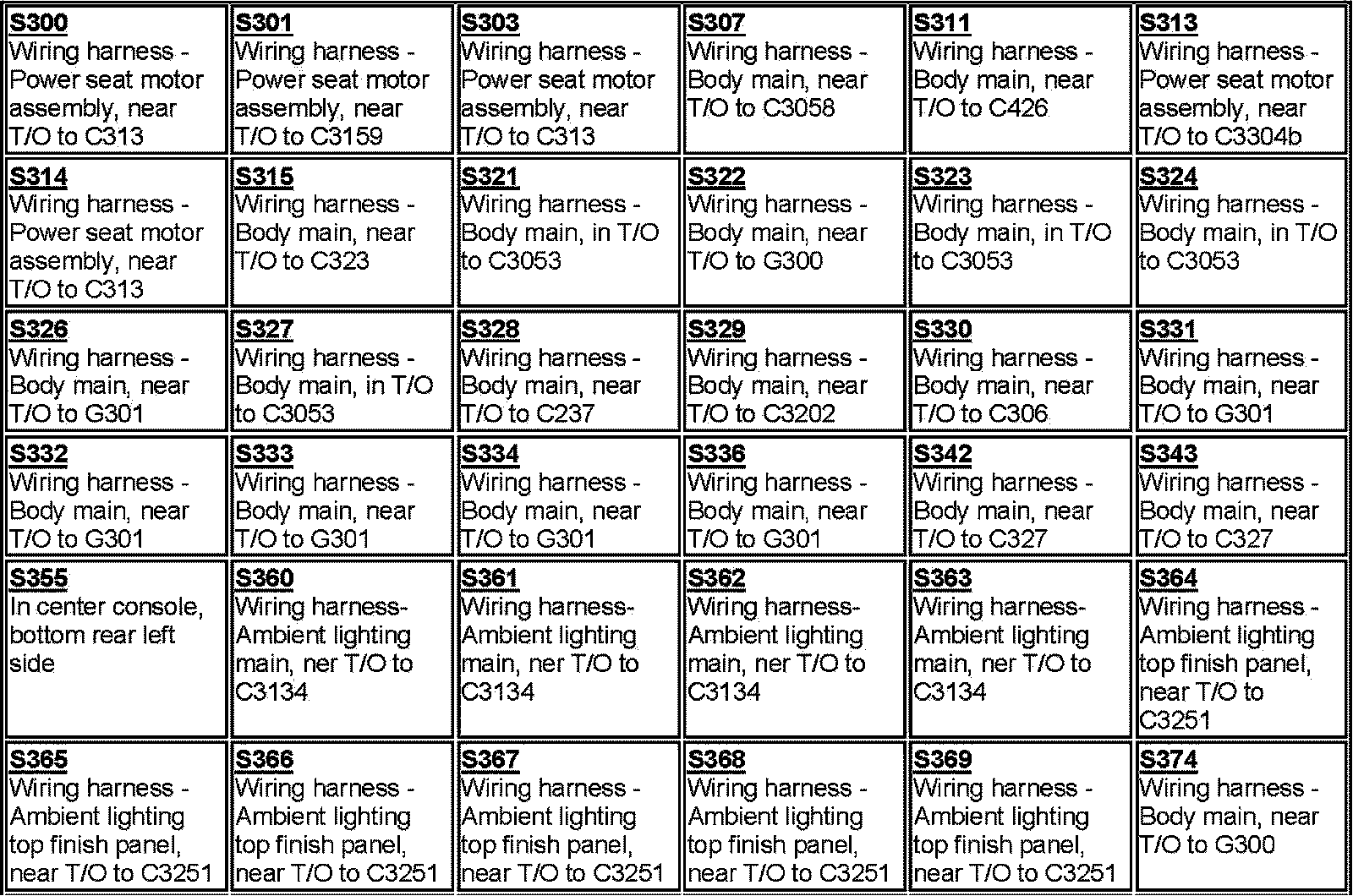

S300-S374:

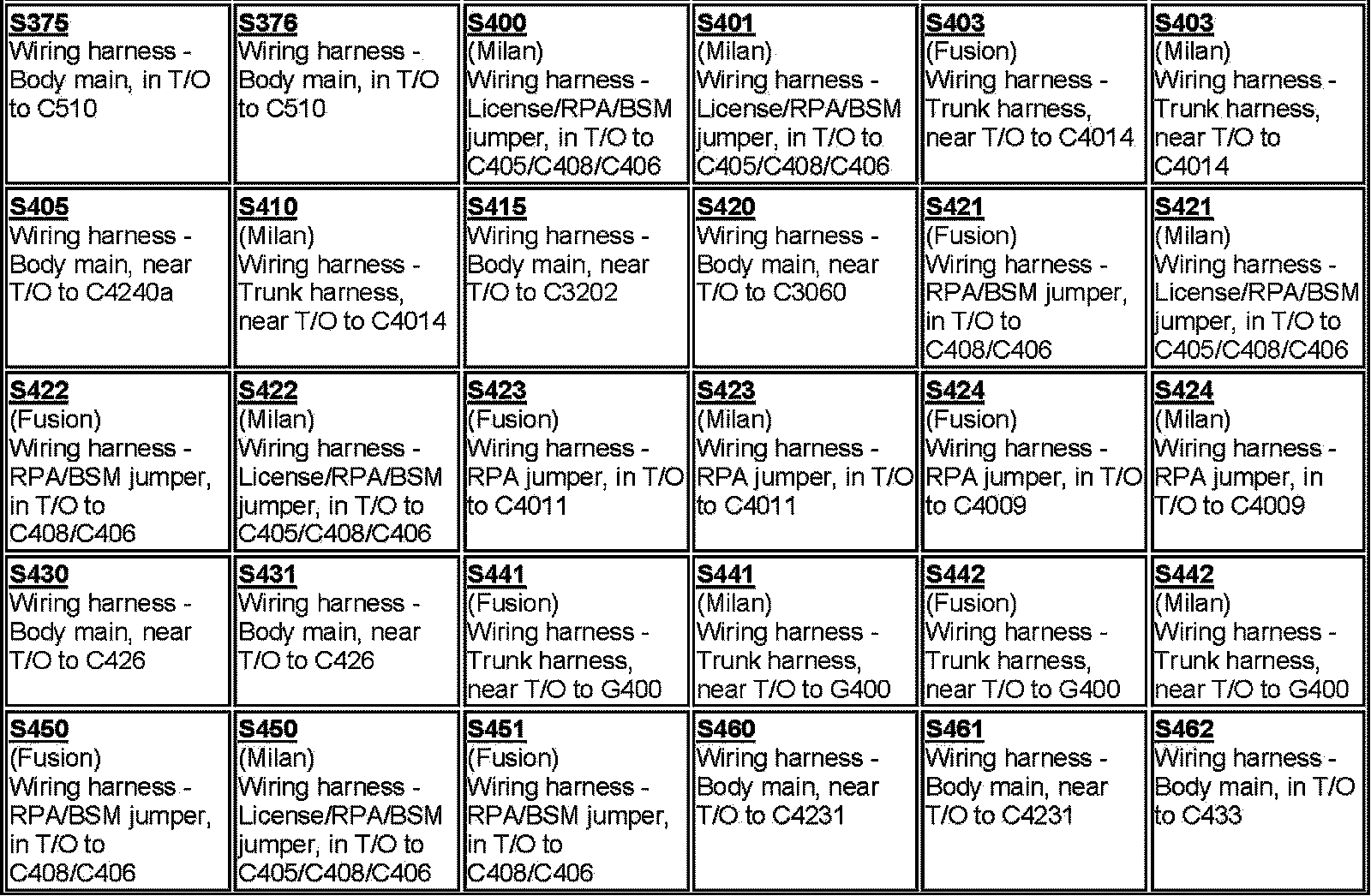

S375-S462:

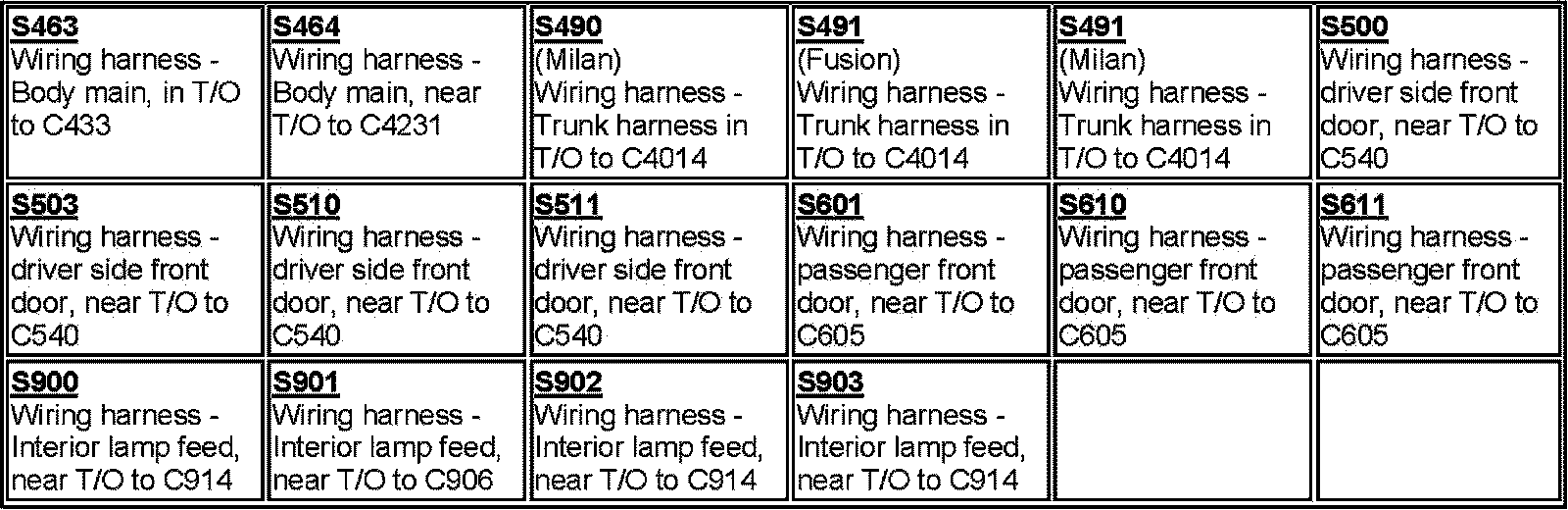

S463-S903:
