Oil Pump, Engine
Install the oil pump and 3 bolts.

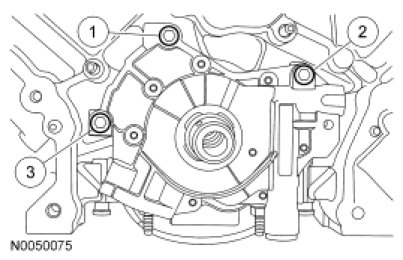

Tighten the bolts in the sequence shown to
10 Nm (89 lb-in).
