Home >> Ford >> 2009 >> Mustang V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> Shift Concerns 210 - 275 >> 237, Harsh 2-1 Shift

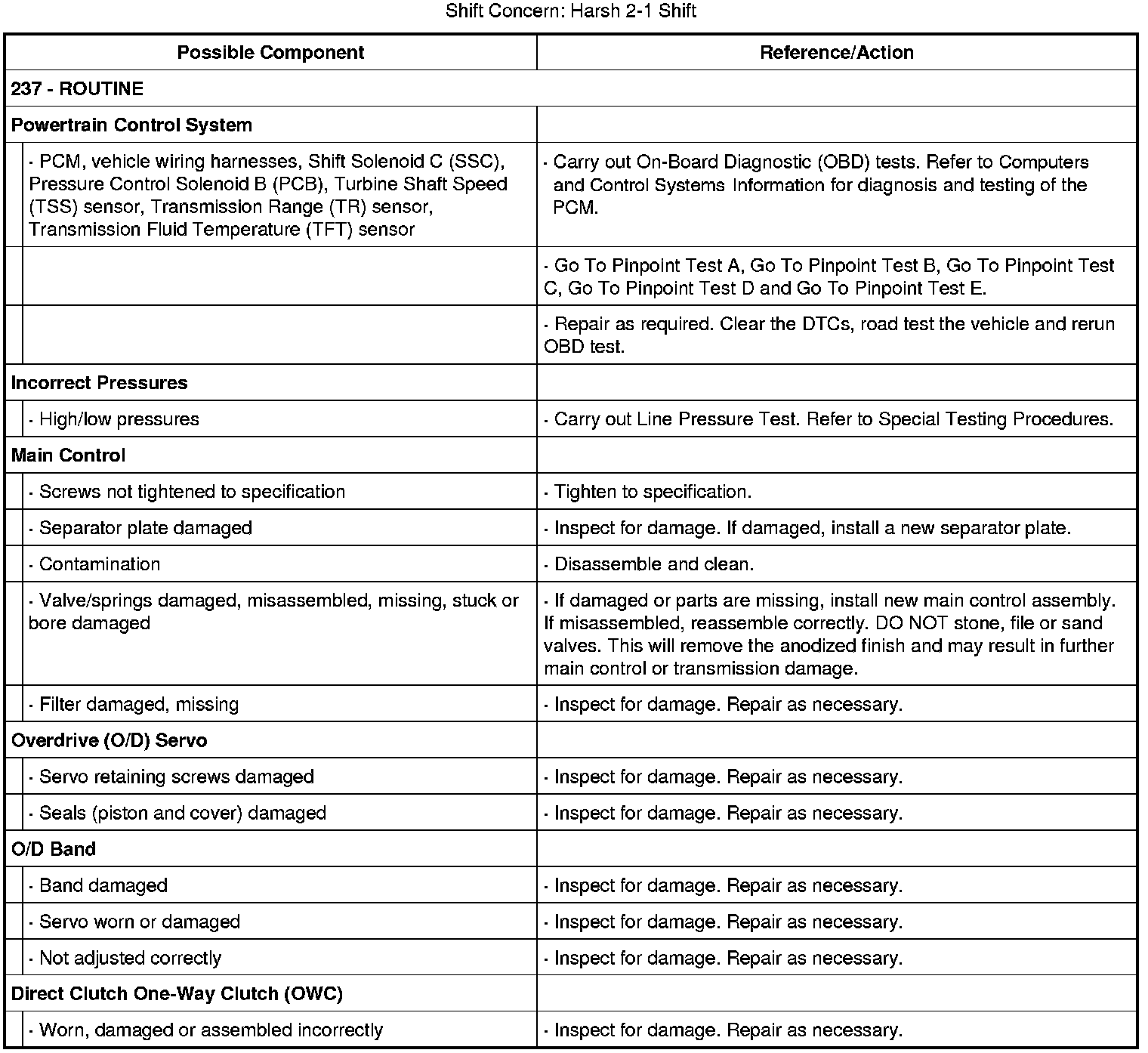

237, Harsh 2-1 Shift




5R55S

Diagnostic Routines

237, Harsh 2-1 Shift:
