Home >> Ford >> 2009 >> Mustang V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> Shift Concerns 210 - 275 >> 235, Harsh 4-3 Shift

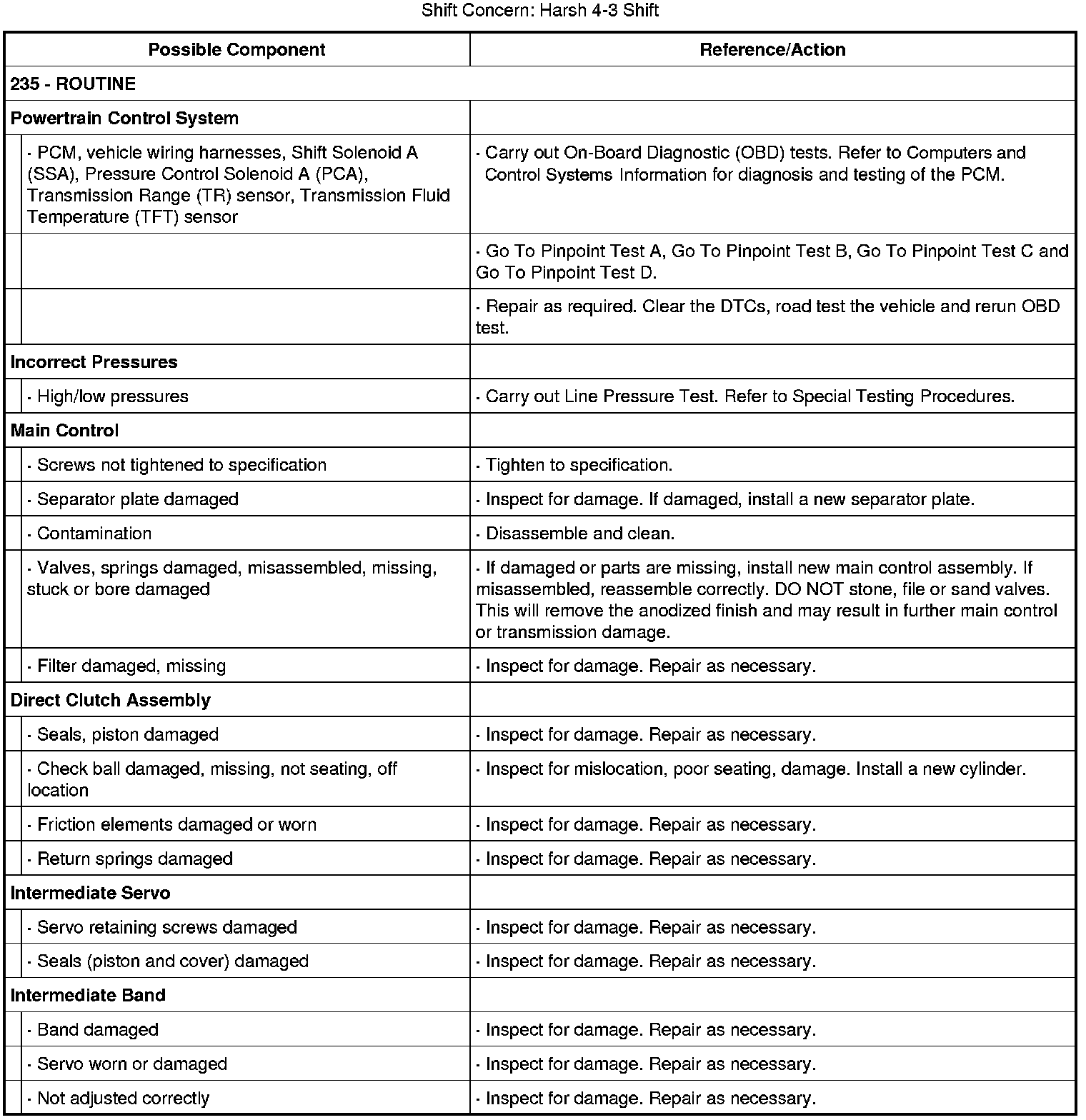

235, Harsh 4-3 Shift




5R55S

Diagnostic Routines

235, Harsh 4-3 Shift:
