233, Harsh 2-3 Shift
233, Harsh 2-3 Shift
5R55S
Diagnostic Routines

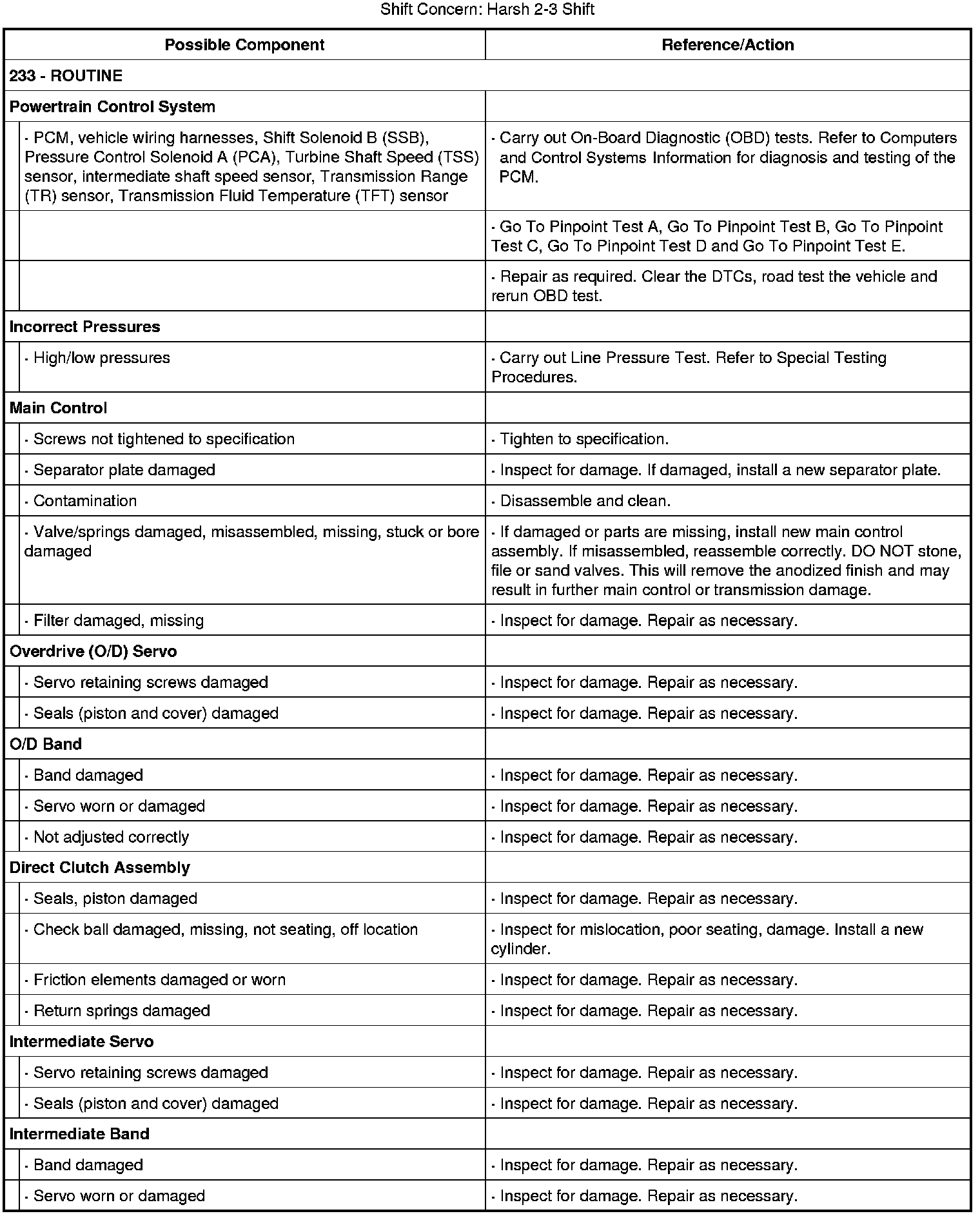

233, Harsh 2-3 Shift (Part 1):

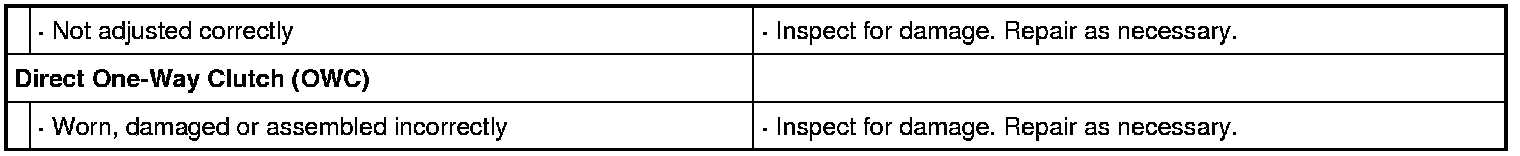

233, Harsh 2-3 Shift (Part 2):
