214, Feel - Harsh (Some/All)
214, Feel - Harsh (Some/All)
5R55S
Diagnostic Routines

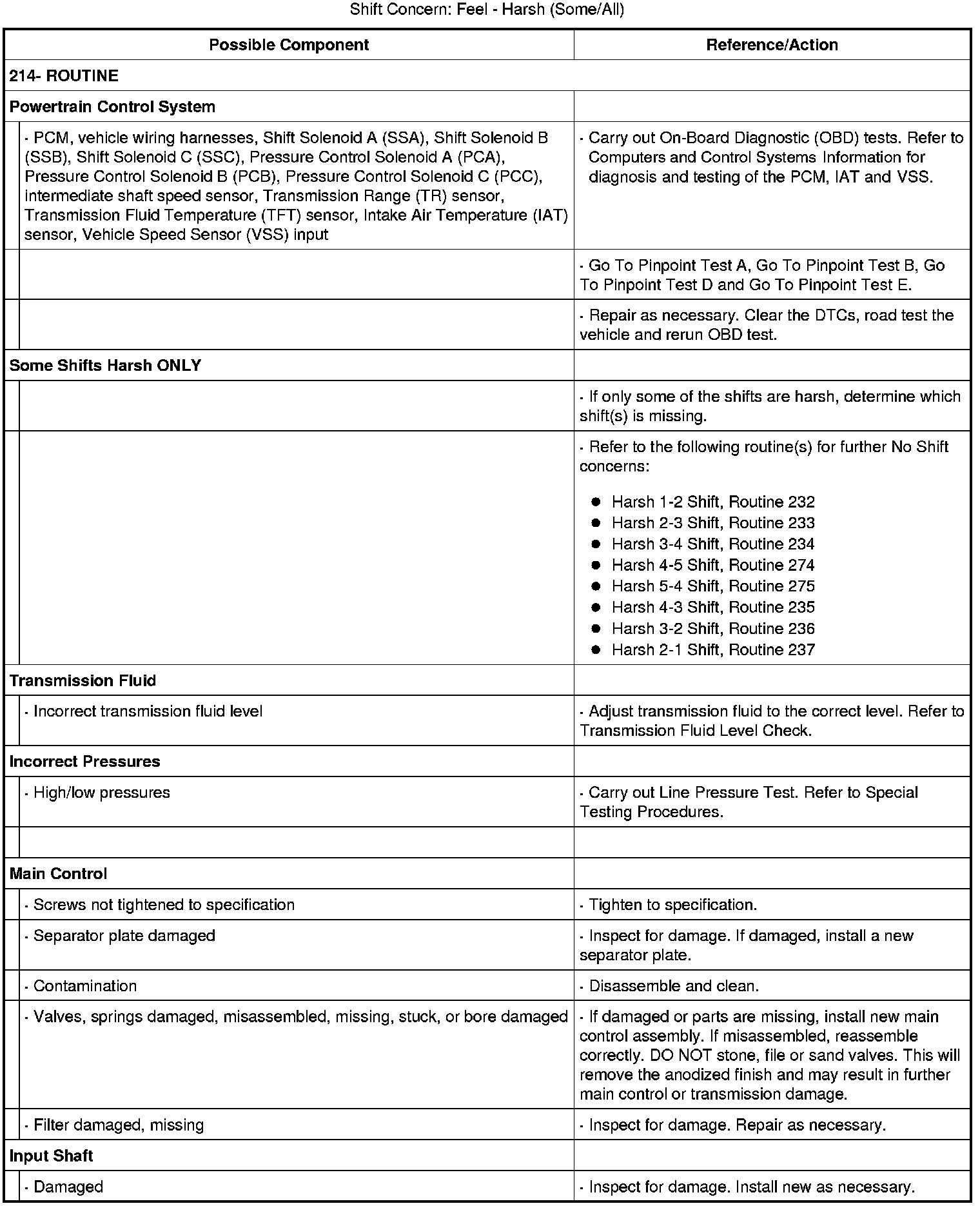

214, Feel - Harsh (Some/All) (Part 1):

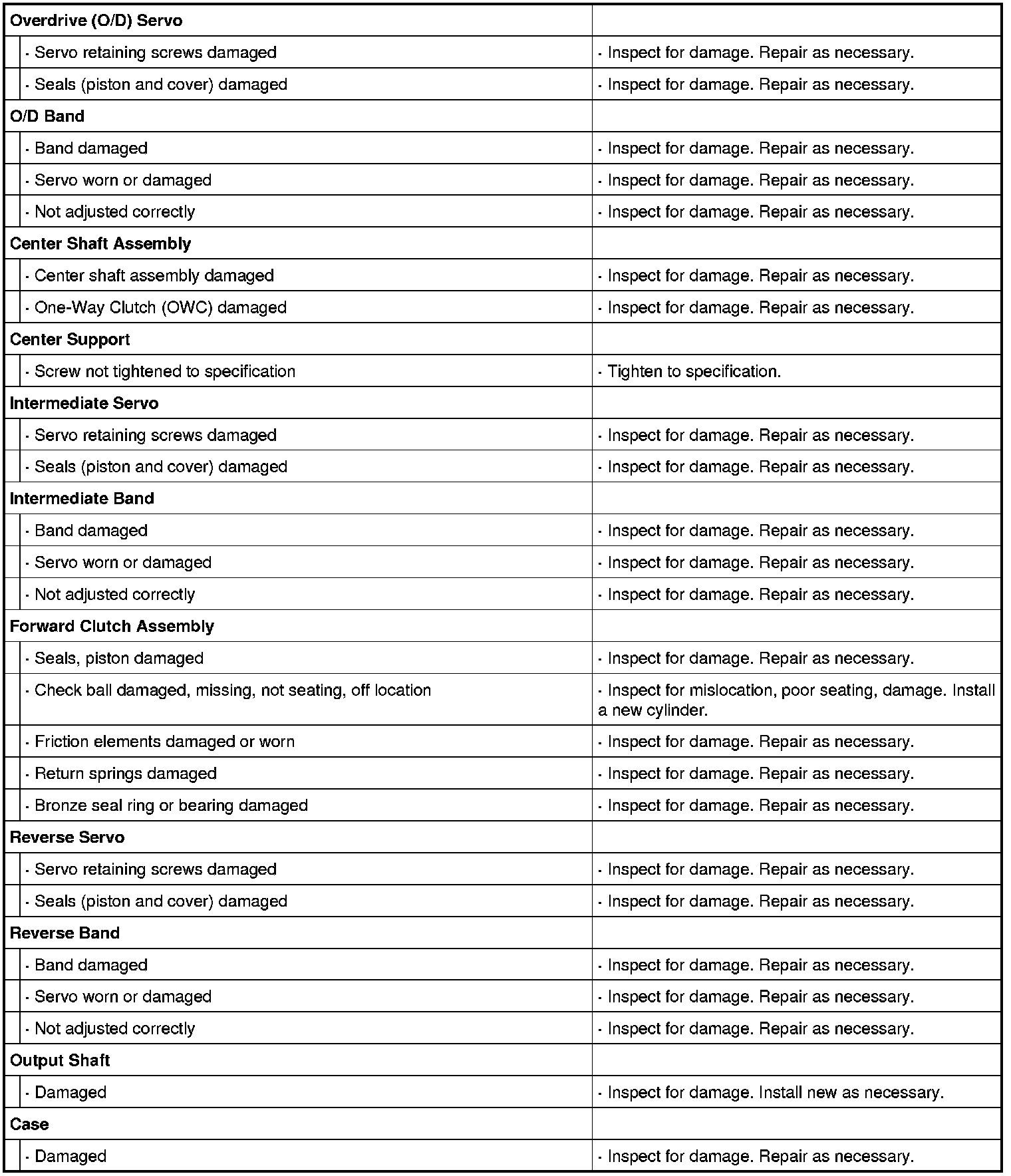

214, Feel - Harsh (Some/All) (Part 2):
