210, Some/All Shifts Missing (Automatic Mode Only)




5R55S

Diagnostic Routines

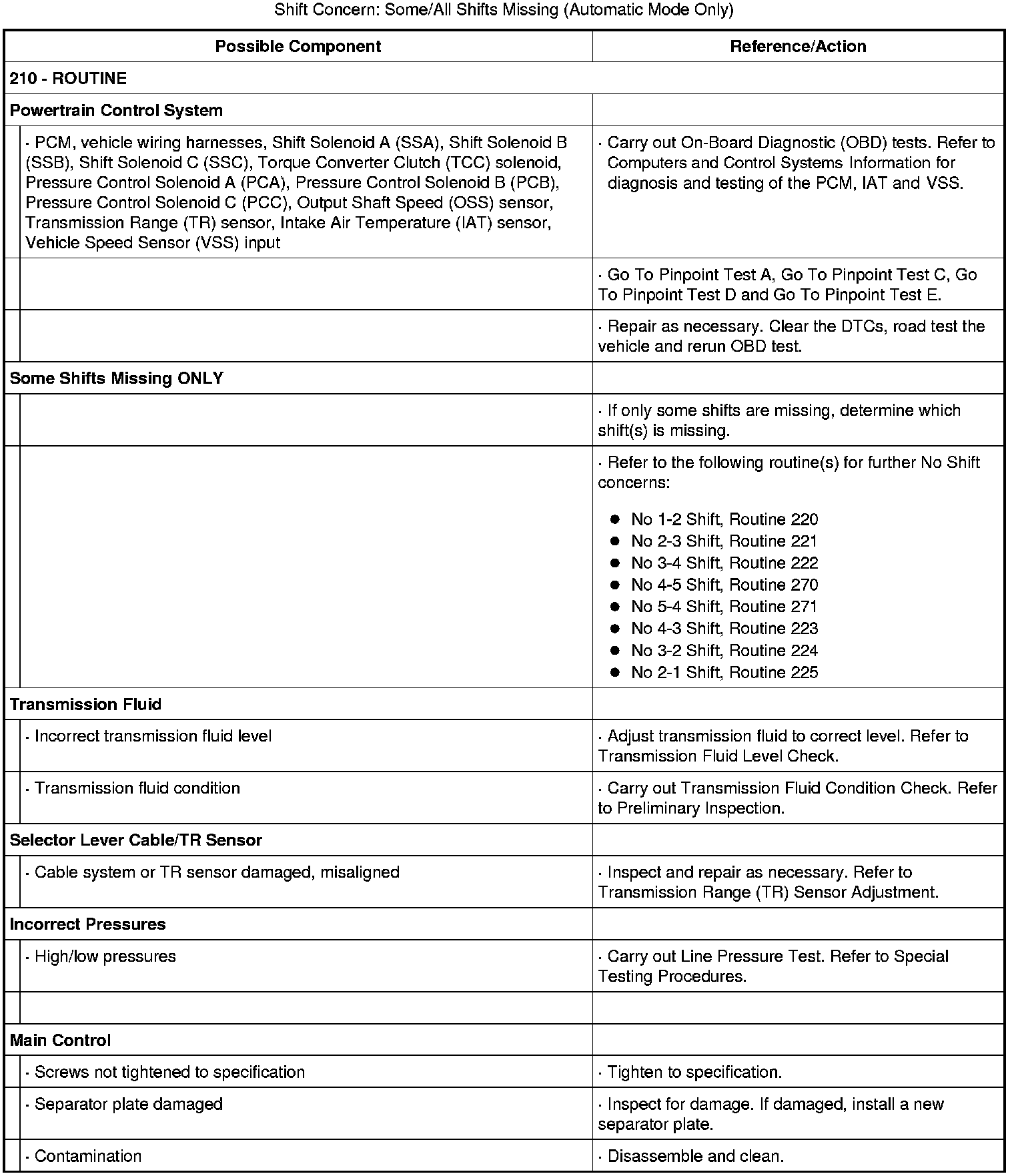

210, Some/All Shifts Missing (Automatic Mode Only) (Part 1):

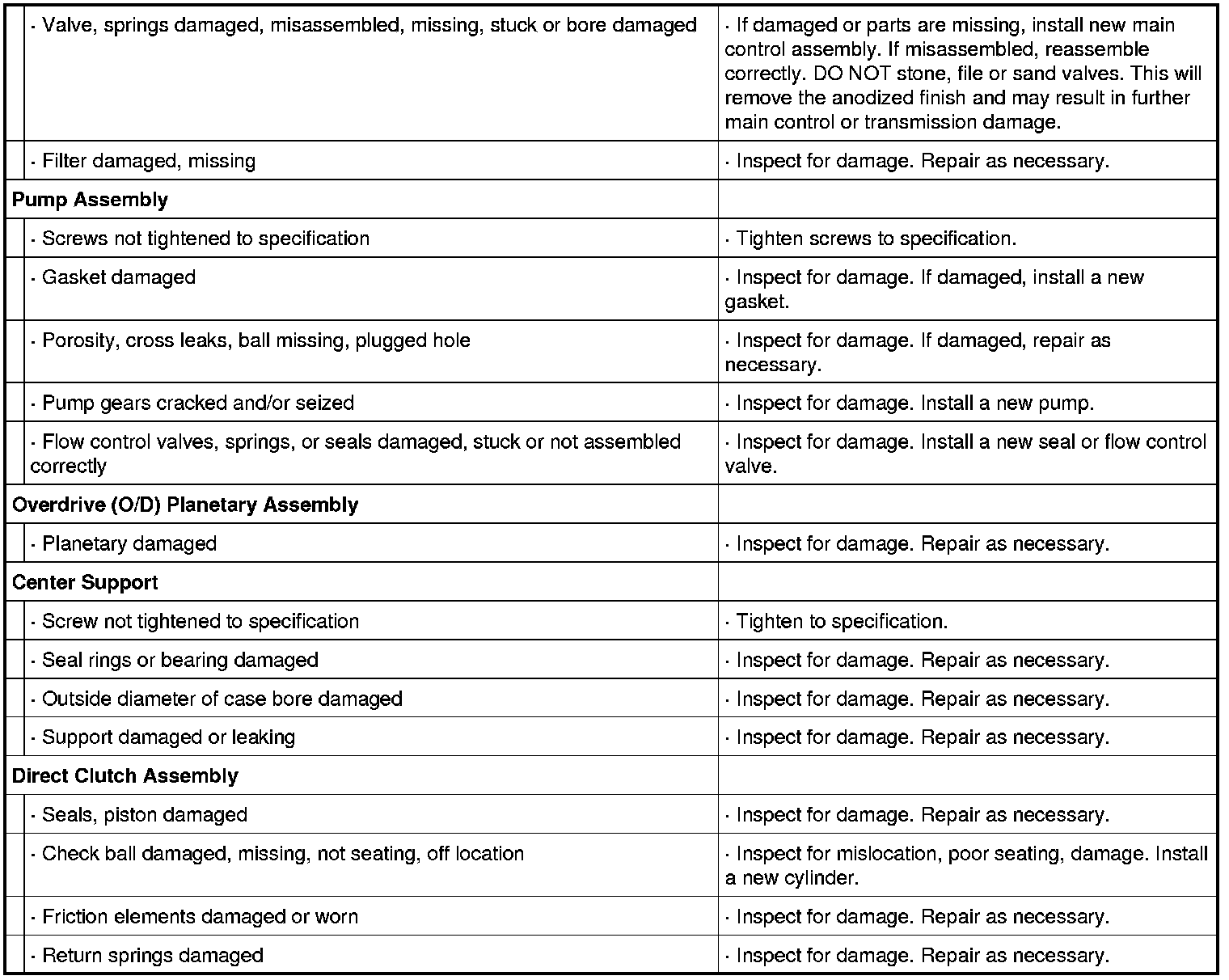

210, Some/All Shifts Missing (Automatic Mode Only) (Part 2):
