284, No 2nd And 5th Gears (Manual 2nd Is OK)
284, No 2nd And 5th Gears (Manual 2nd Is OK)
5R55S
Diagnostic Routines

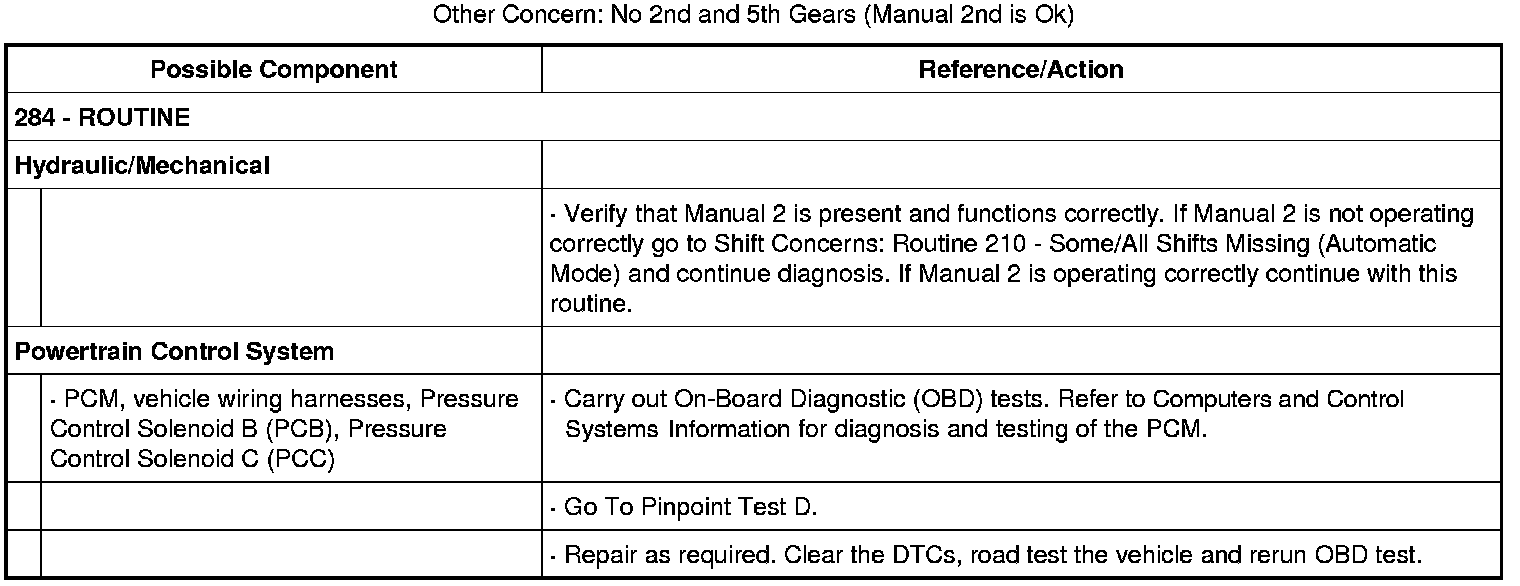

284, No 2nd And 5th Gears (Manual 2ND Is OK):
