263, Slips/Chatters In Manual 1st Position




5R55S

Diagnostic Routines

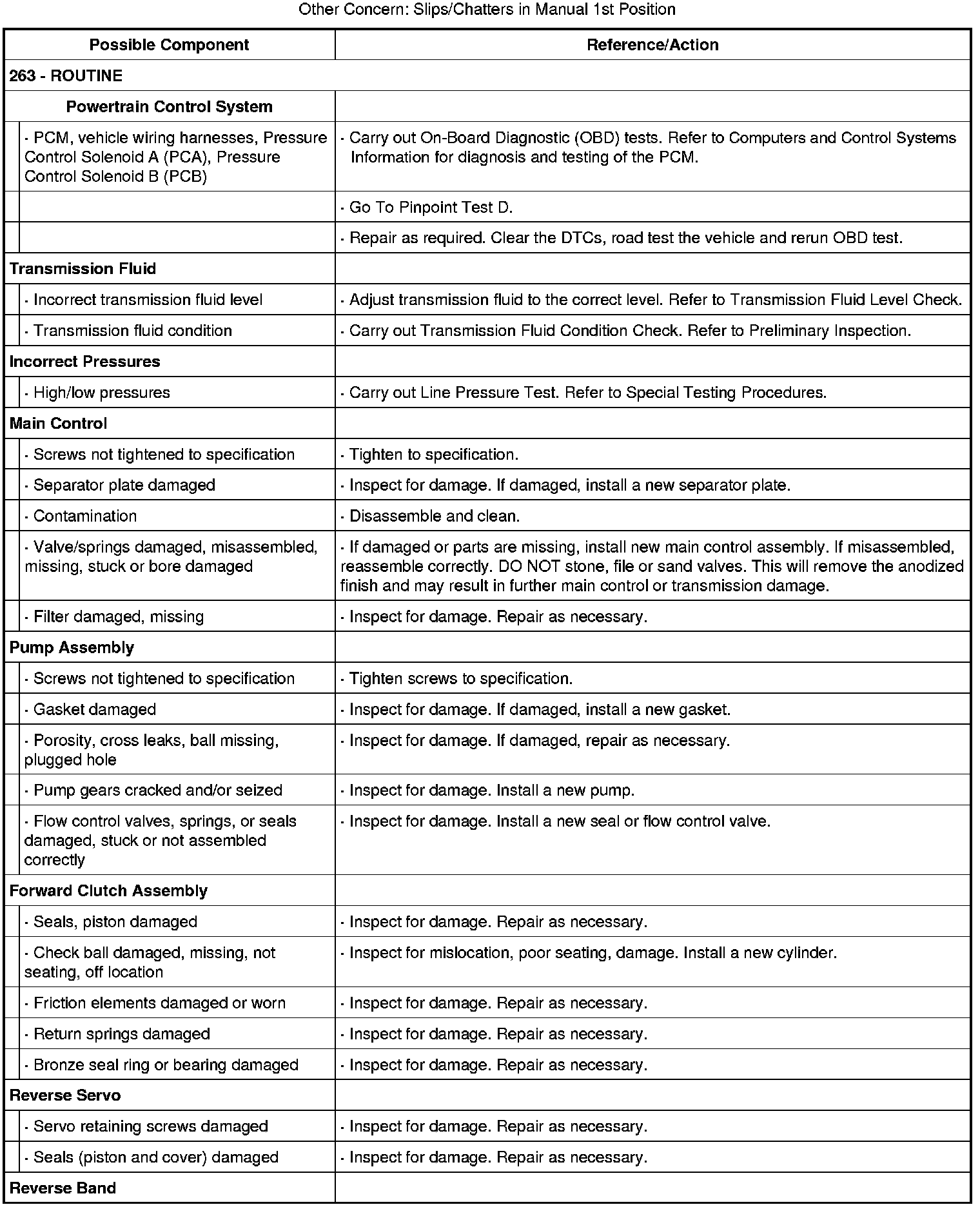

263, Slips/Chatters In Manual 1ST Position (Part 1):

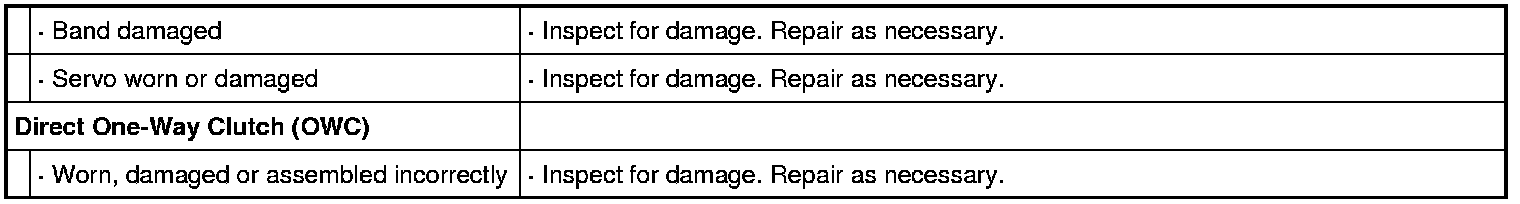

263, Slips/Chatters In Manual 1ST Position (Part 2):
