Home >> Ford >> 2009 >> Mustang V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> Engagement Concerns 201A - 216 >> 213, Feel - Soft/Slipping (Some/All)

213, Feel - Soft/Slipping (Some/All)




5R55S

Diagnostic Routines

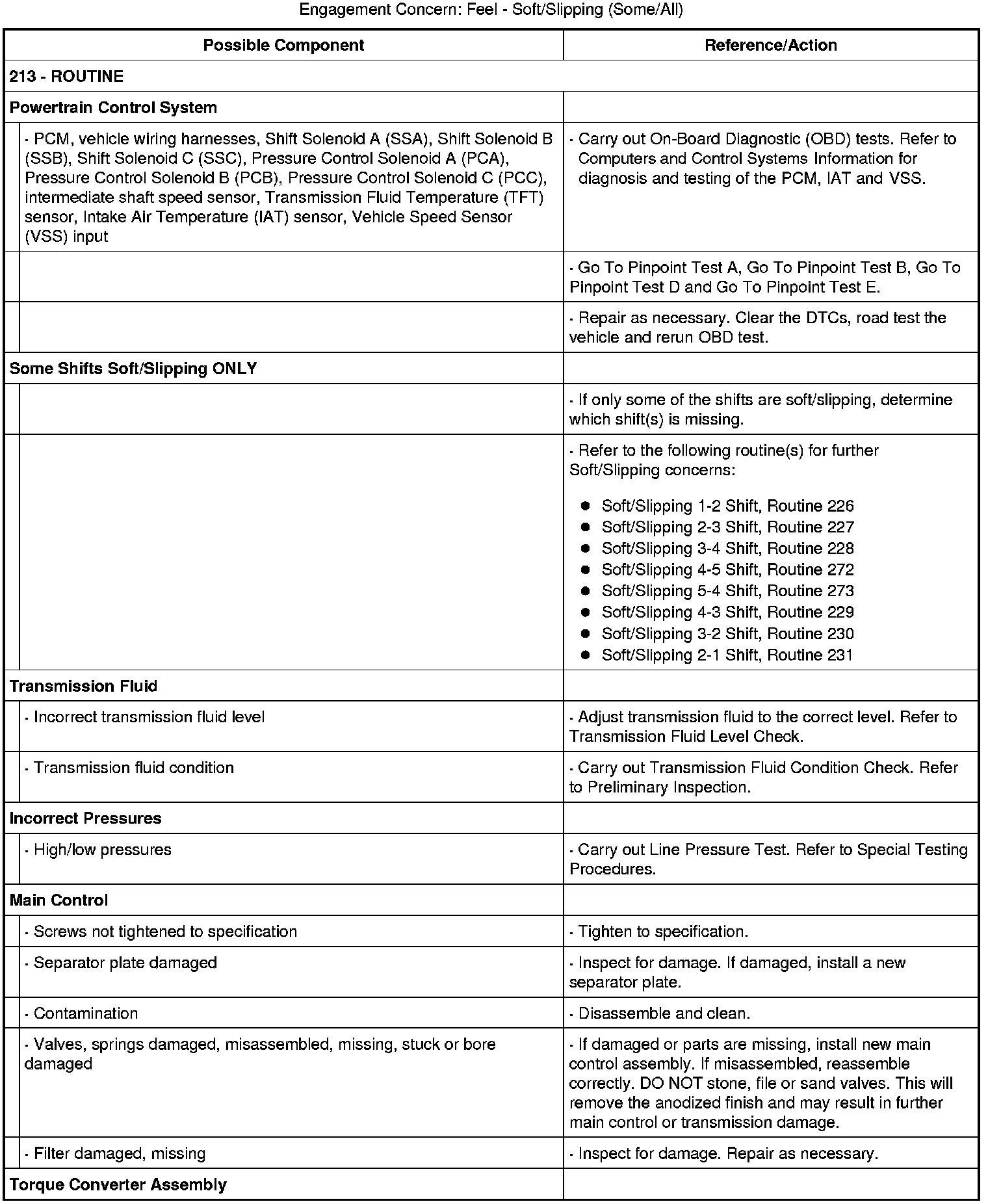

213, Feel - Soft/Slipping (Some/All) (Part 1):

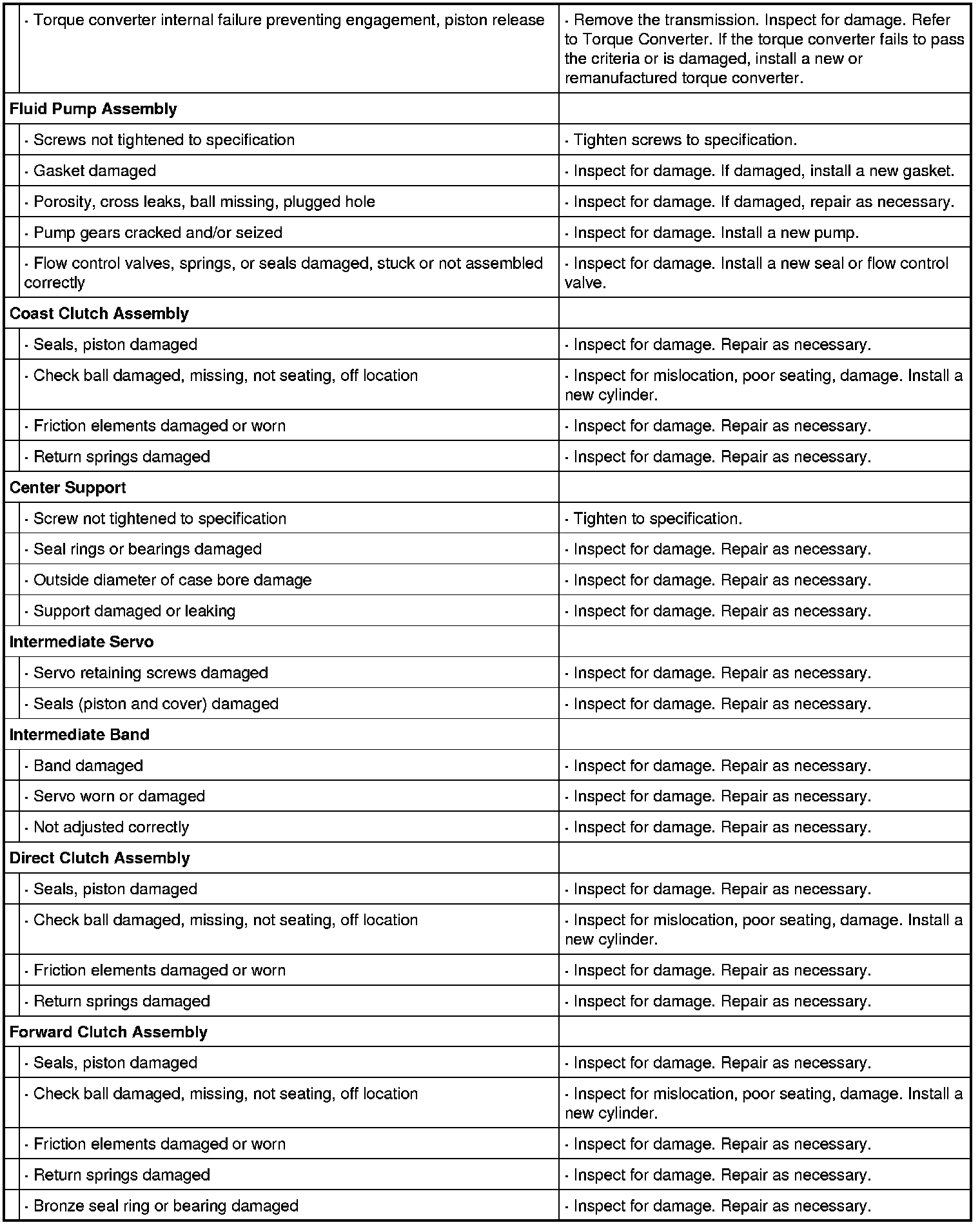

213, Feel - Soft/Slipping (Some/All) (Part 2):

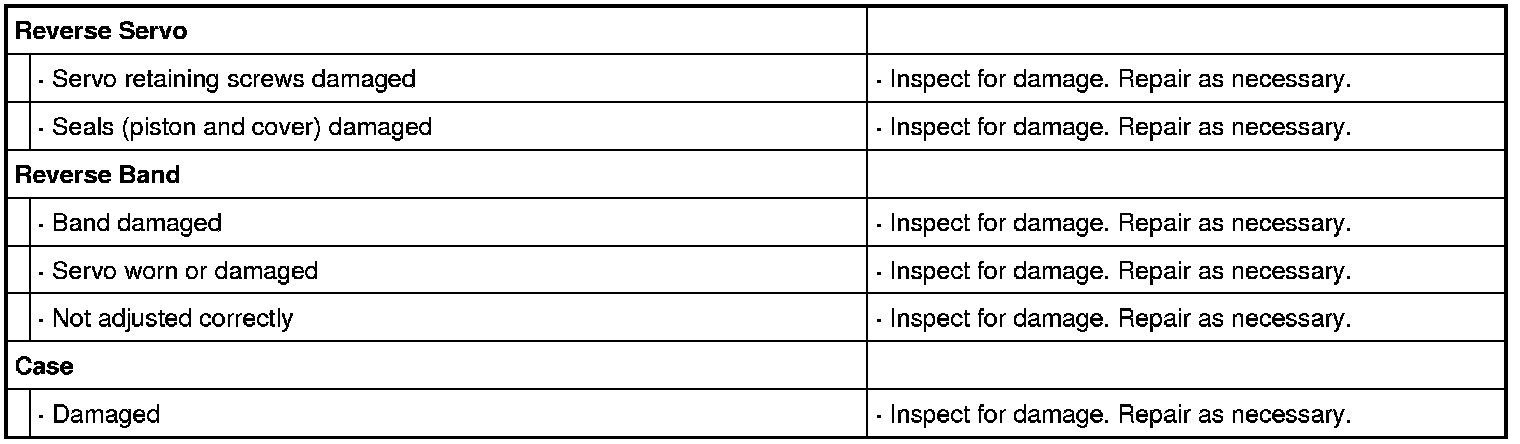

213, Feel - Soft/Slipping (Some/All) (Part 3):
