FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2009 >> Mustang V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> Engagement Concerns 201A - 216 >> 203, Harsh Reverse Only

203, Harsh Reverse Only




5R55S

Diagnostic Routines

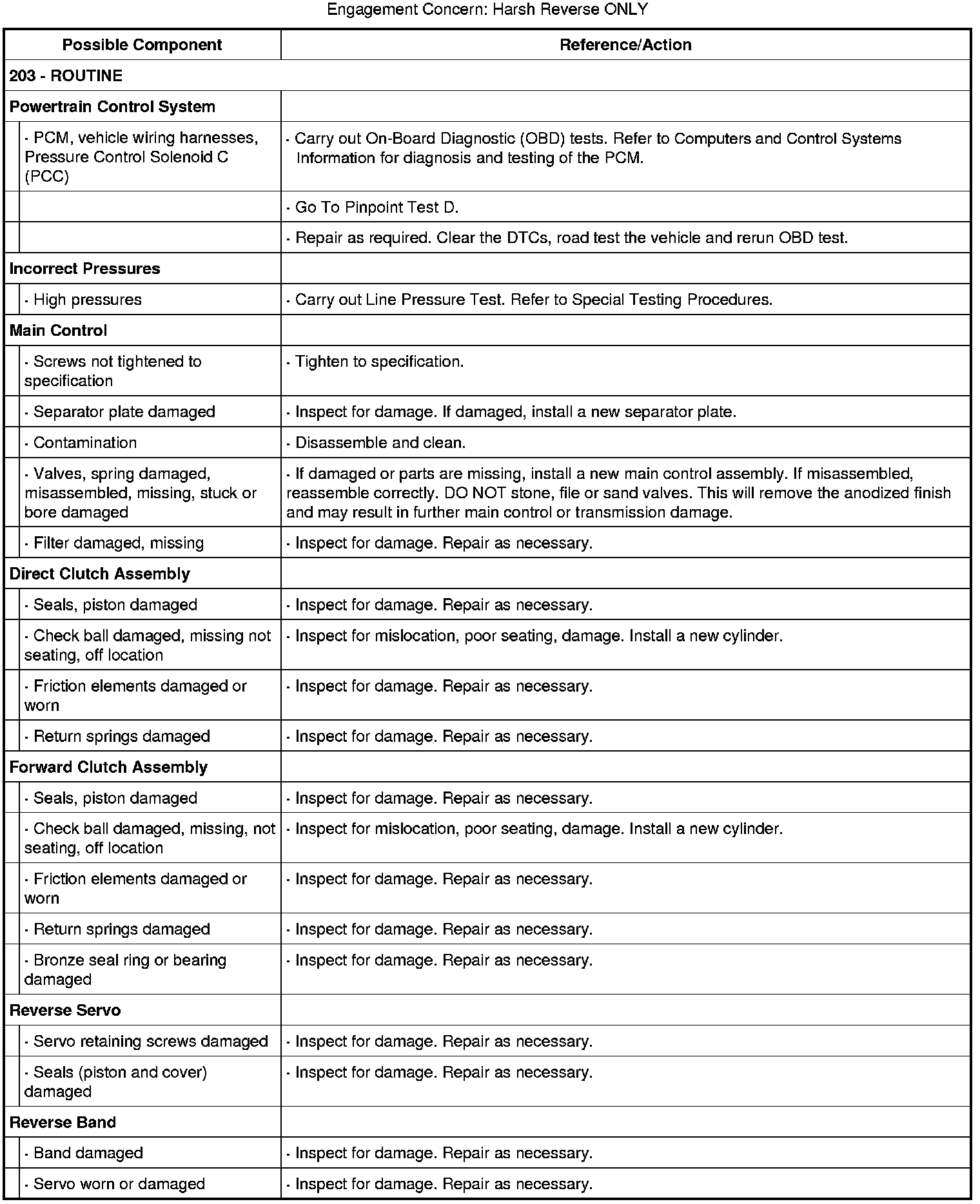

203, Harsh Reverse ONLY (Part 1):

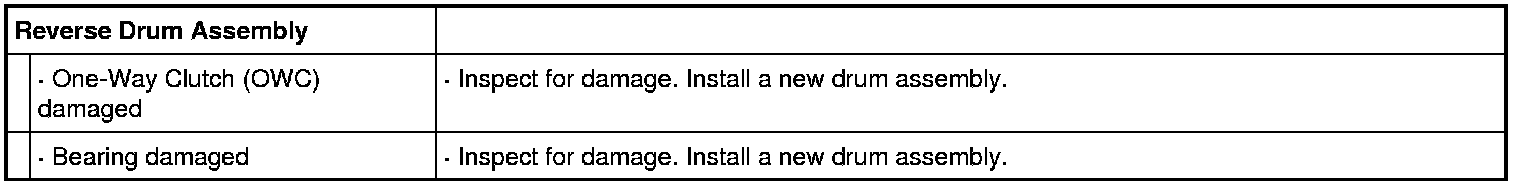

203, Harsh Reverse ONLY (Part 2):
