Home >> Ford >> 2007 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Clutch Plate Usage and Clearance Specification Chart

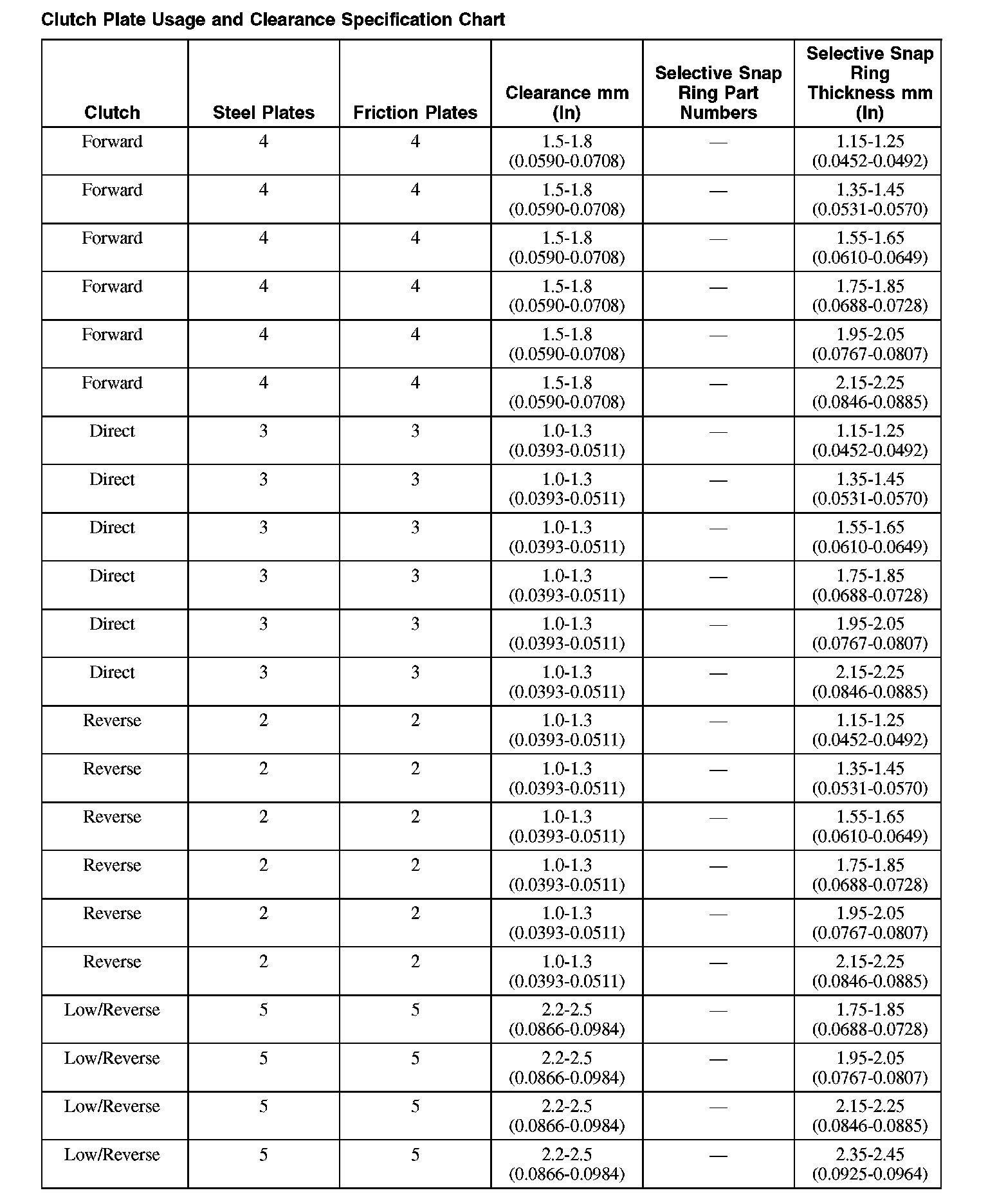

Clutch Plate Usage and Clearance Specification Chart

Clutch Plate Usage and Clearance Specification Chart:



Clutch Plate Usage and Clearance Specification Chart:
