Test F: The Roof Opening Panel Does Not Stop In Flush From Any Position

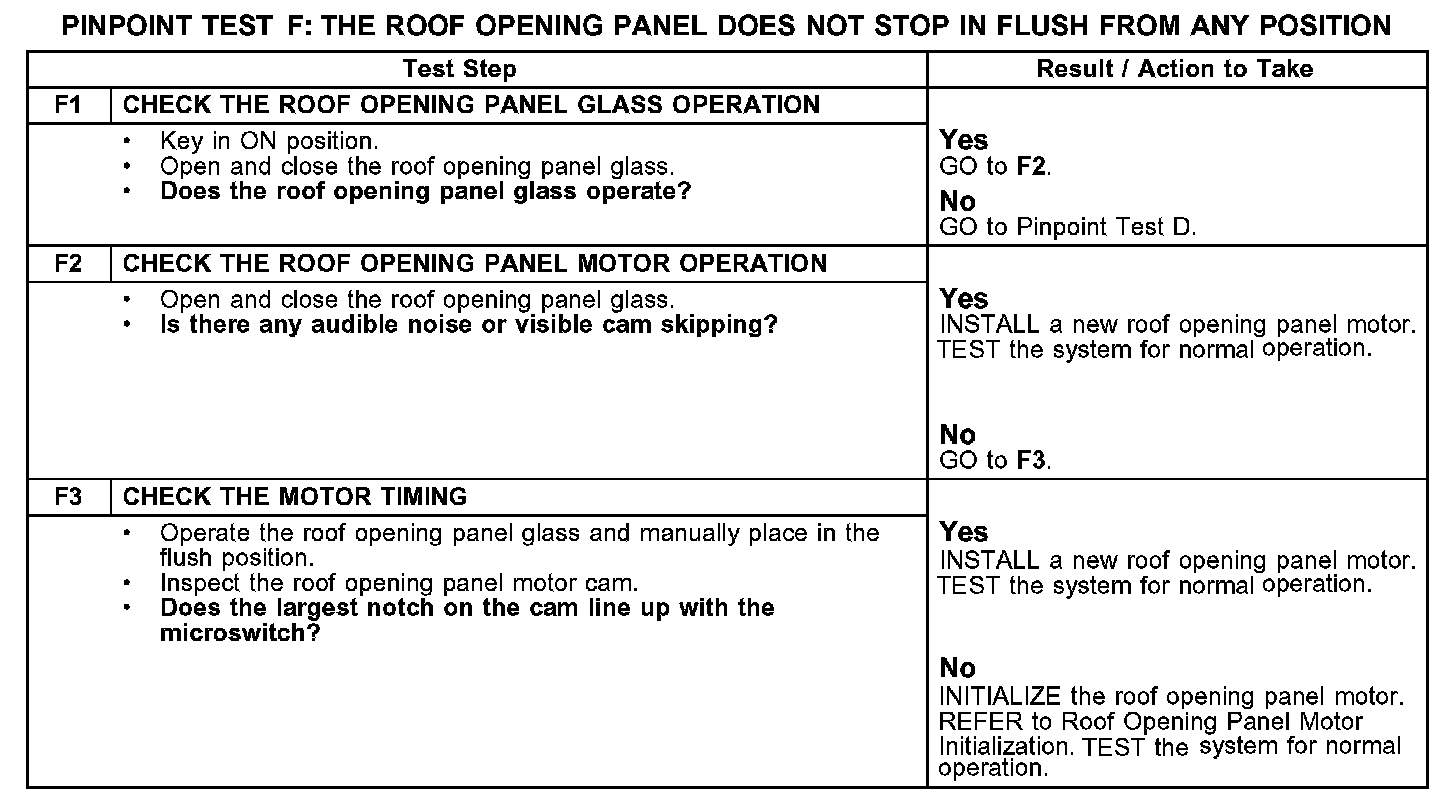

PINPOINT TEST F: THE ROOF OPENING PANEL DOES NOT STOP IN FLUSH FROM ANY POSITION


F1-F3:






Normal Operation
When the roof opening panel glass is completely closed, it should be flush with the roof panel.

Possible Causes
- roof opening panel motor initialization
- roof opening panel motor
