Test B: The Roof Opening Panel Leaks

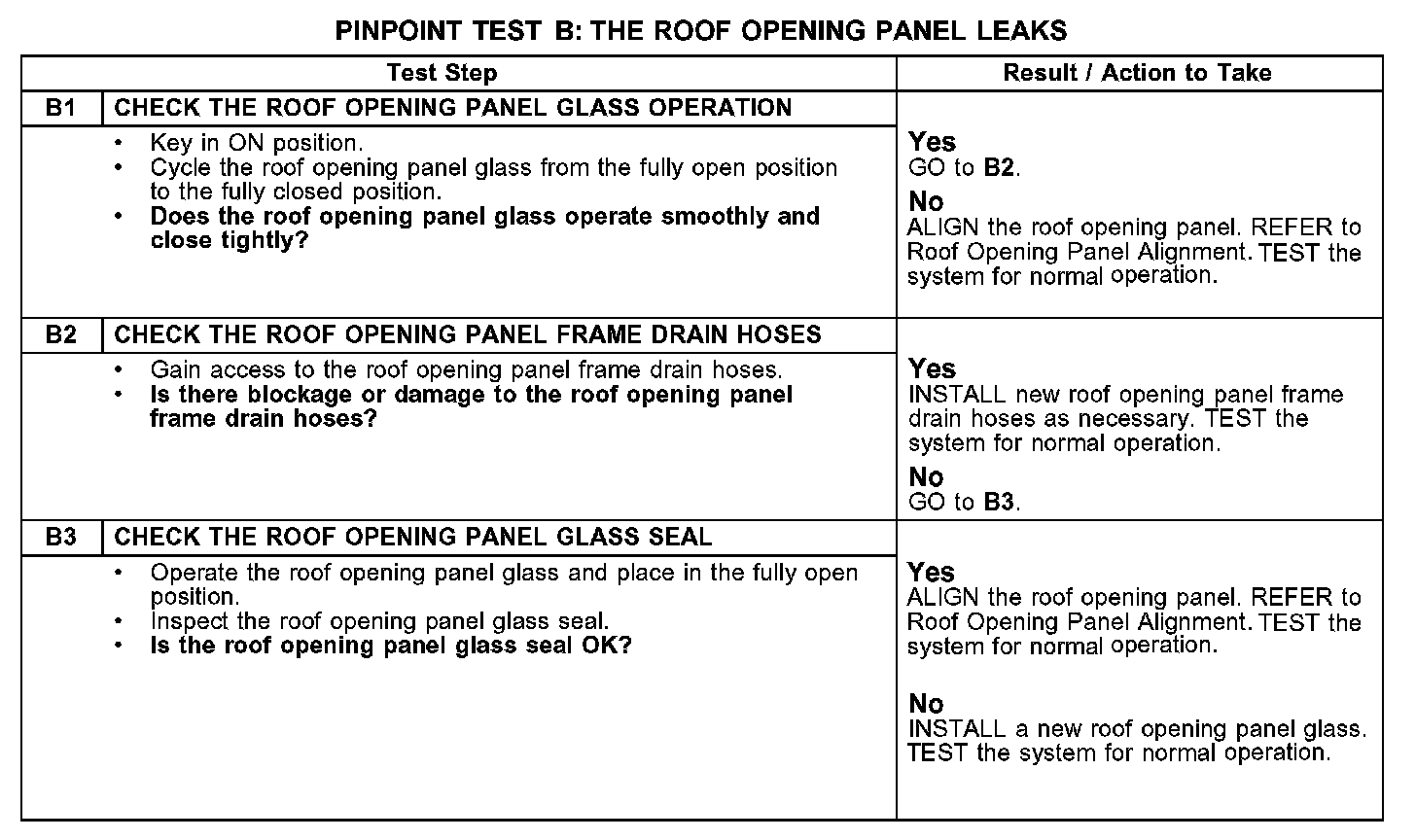

PINPOINT TEST B: THE ROOF OPENING PANEL LEAKS

B1-B3:

Normal Operation
When the roof opening panel glass is completely closed, it should be flush with the roof panel.

Possible Causes
- roof opening panel alignment
- roof opening panel drain hose(s)
- roof opening panel seal
