Home >> Ford >> 2005 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Switch >> Testing and Inspection >> Component Testing Procedures

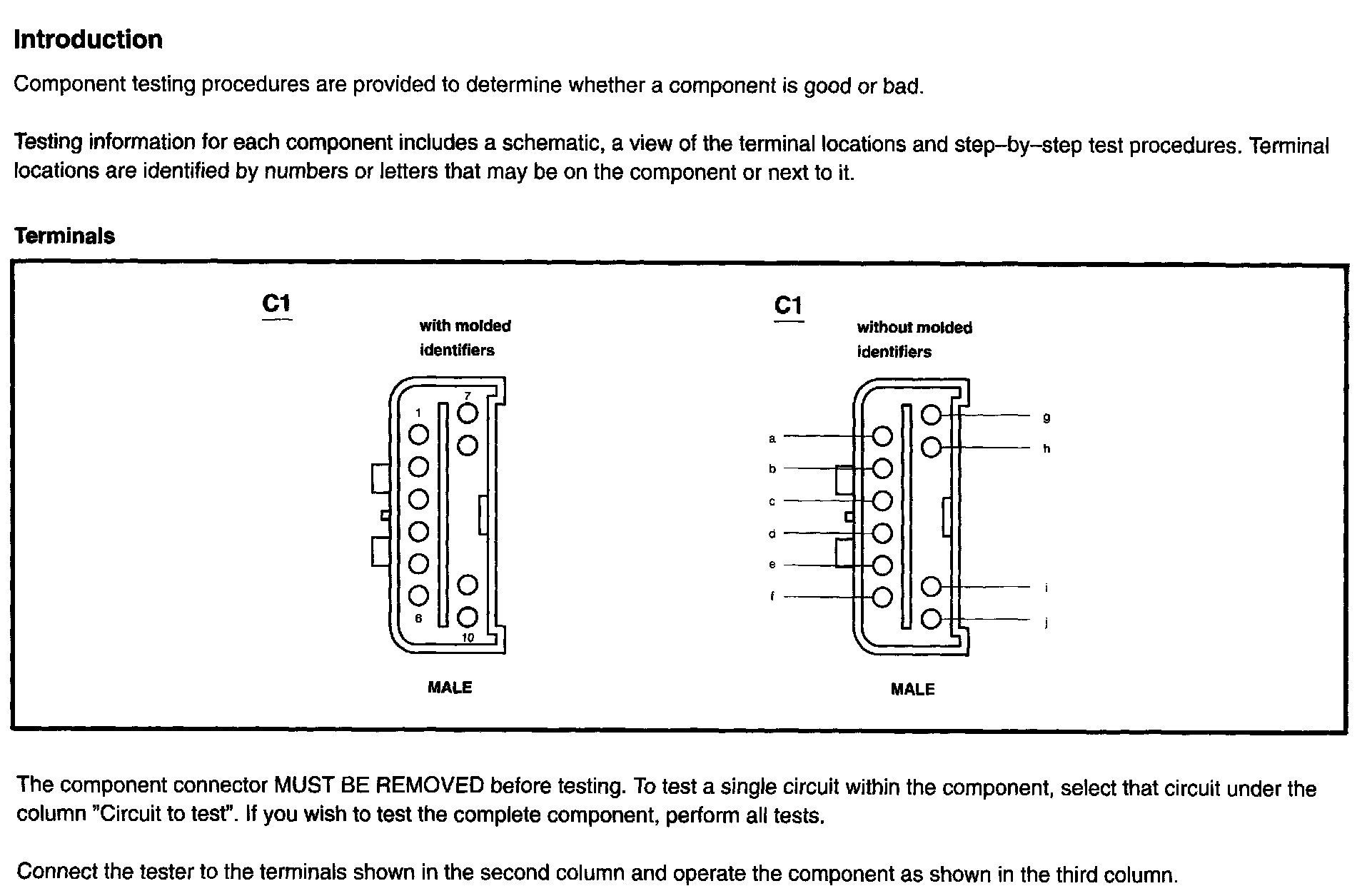

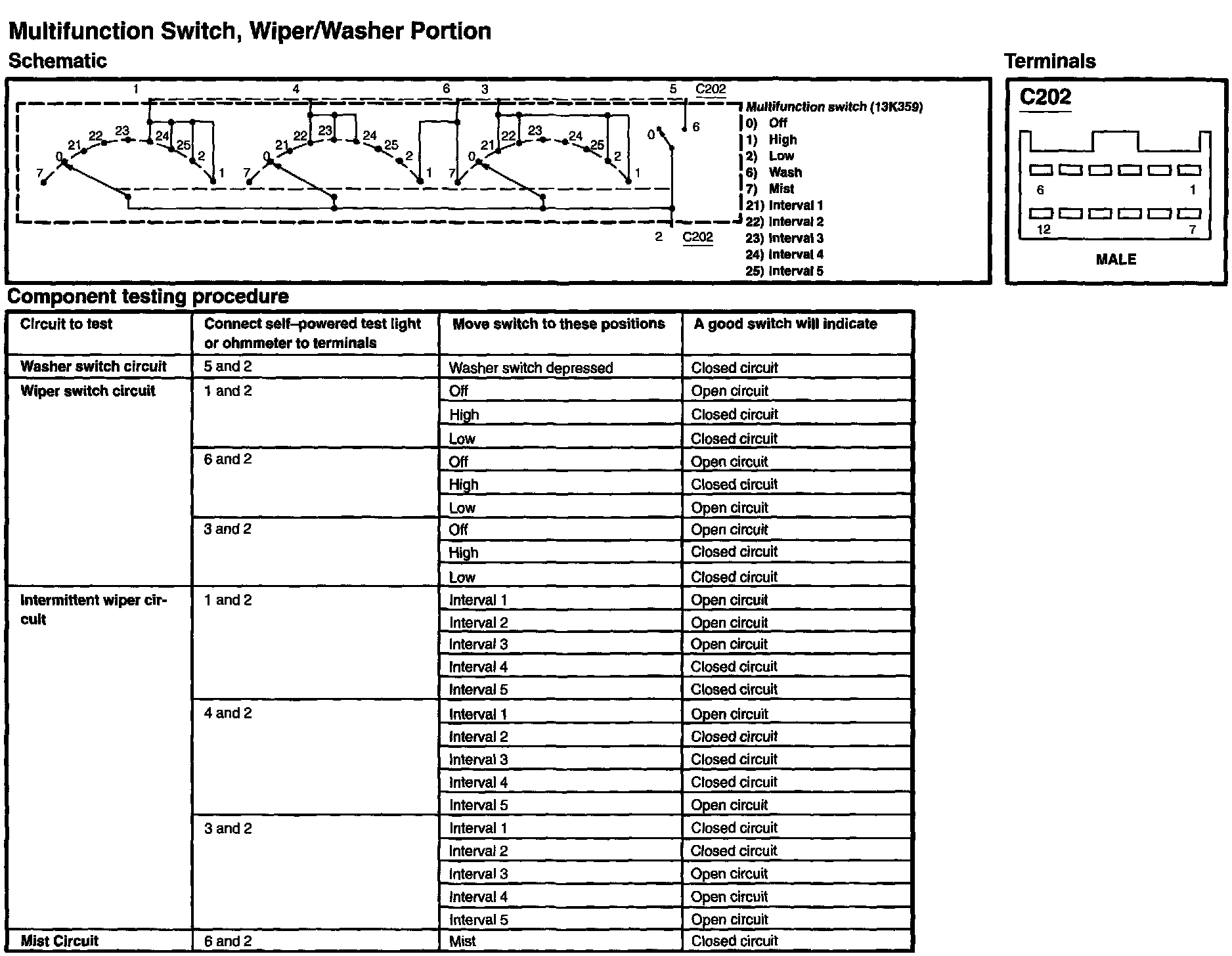

Component Testing Procedures
