Home >> Ford >> 2005 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cooling System >> System Diagram

System Diagram

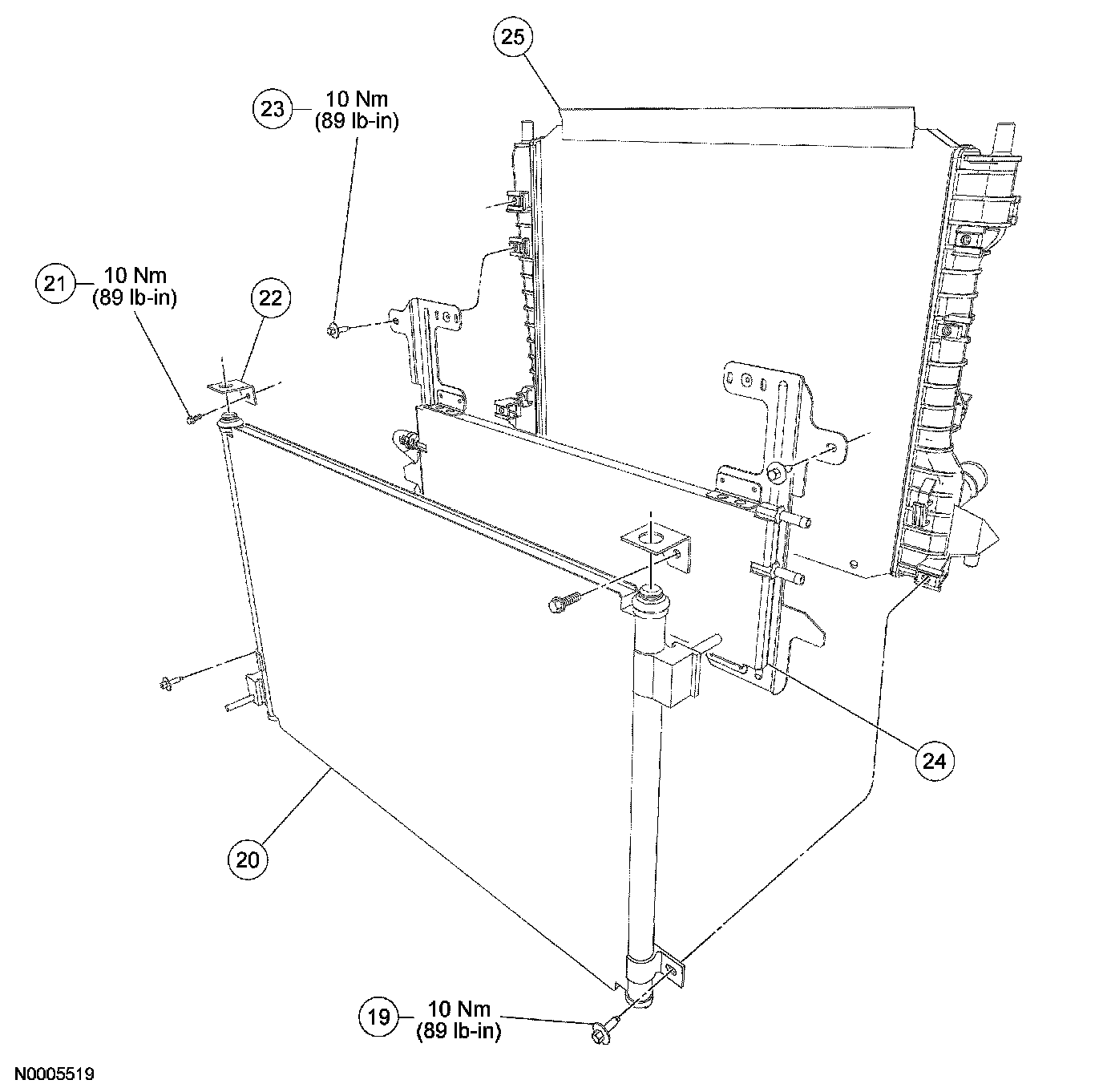

Cooling System Components - Exploded View, Radiator, Cooling Fan Motor And Shroud.:

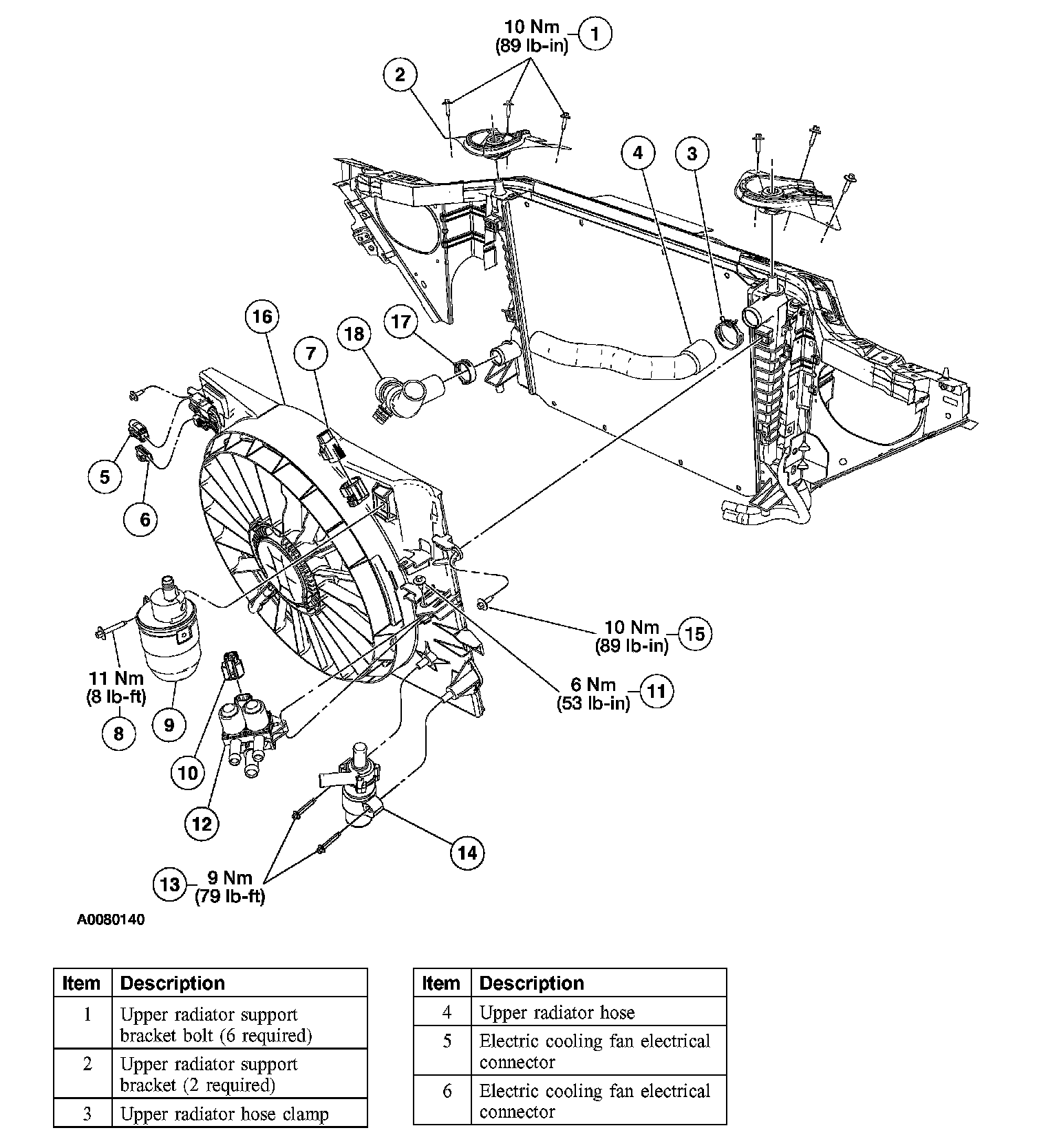

Cooling System Components - Exploded View, Radiator, Cooling Fan Motor And Shroud.:



Cooling System Components - Exploded View, Radiator, Cooling Fan Motor And Shroud.:



Cooling System Components - Exploded View, Radiator, Cooling Fan Motor And Shroud.:
