Home >> Ford >> 2005 >> Mustang V8-4.6L VIN H >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Thermostat, Engine Cooling

Thermostat, Engine Cooling

Thermostat and Thermostat Housing Exploded View

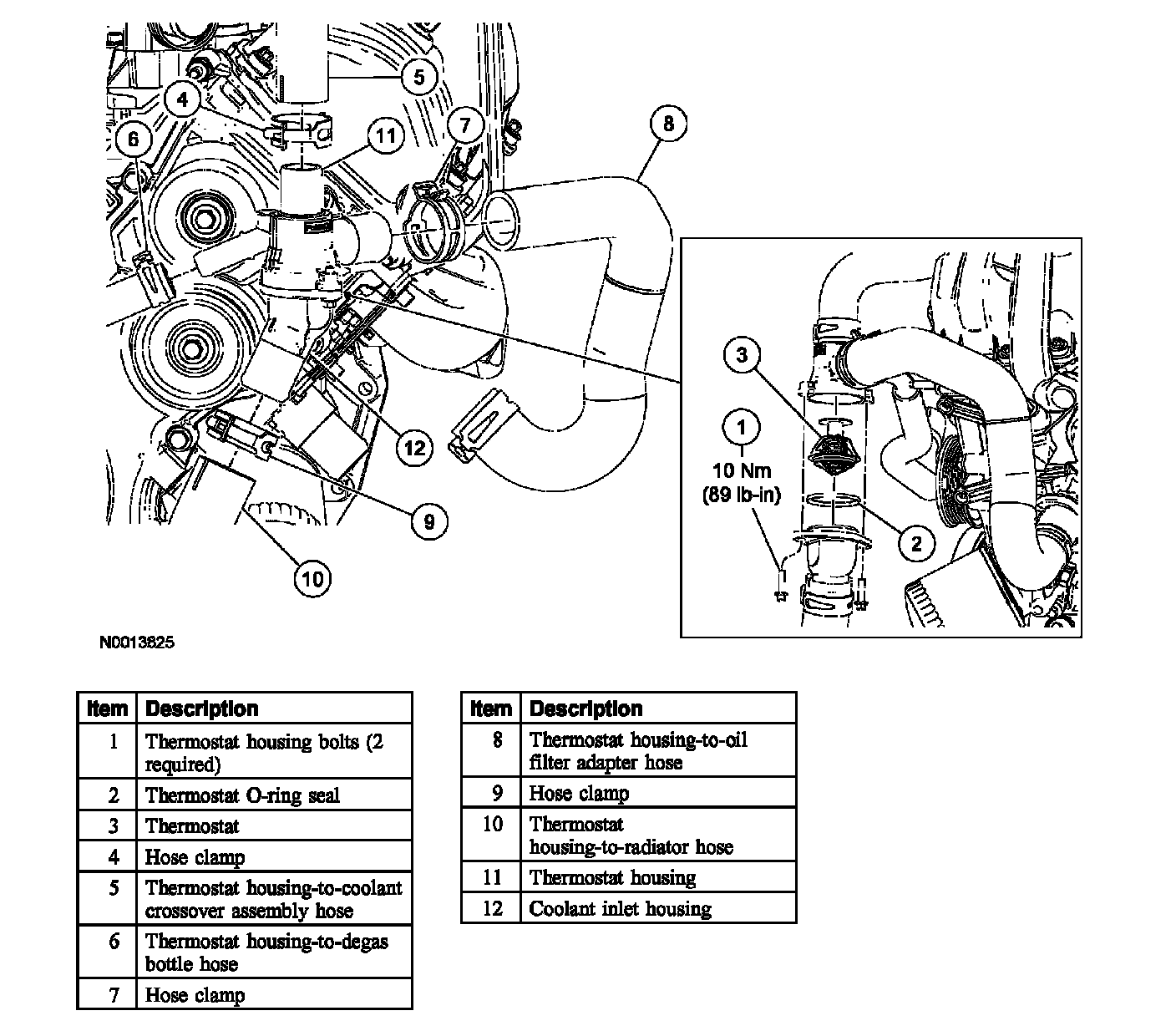

4.0L (SOHC)

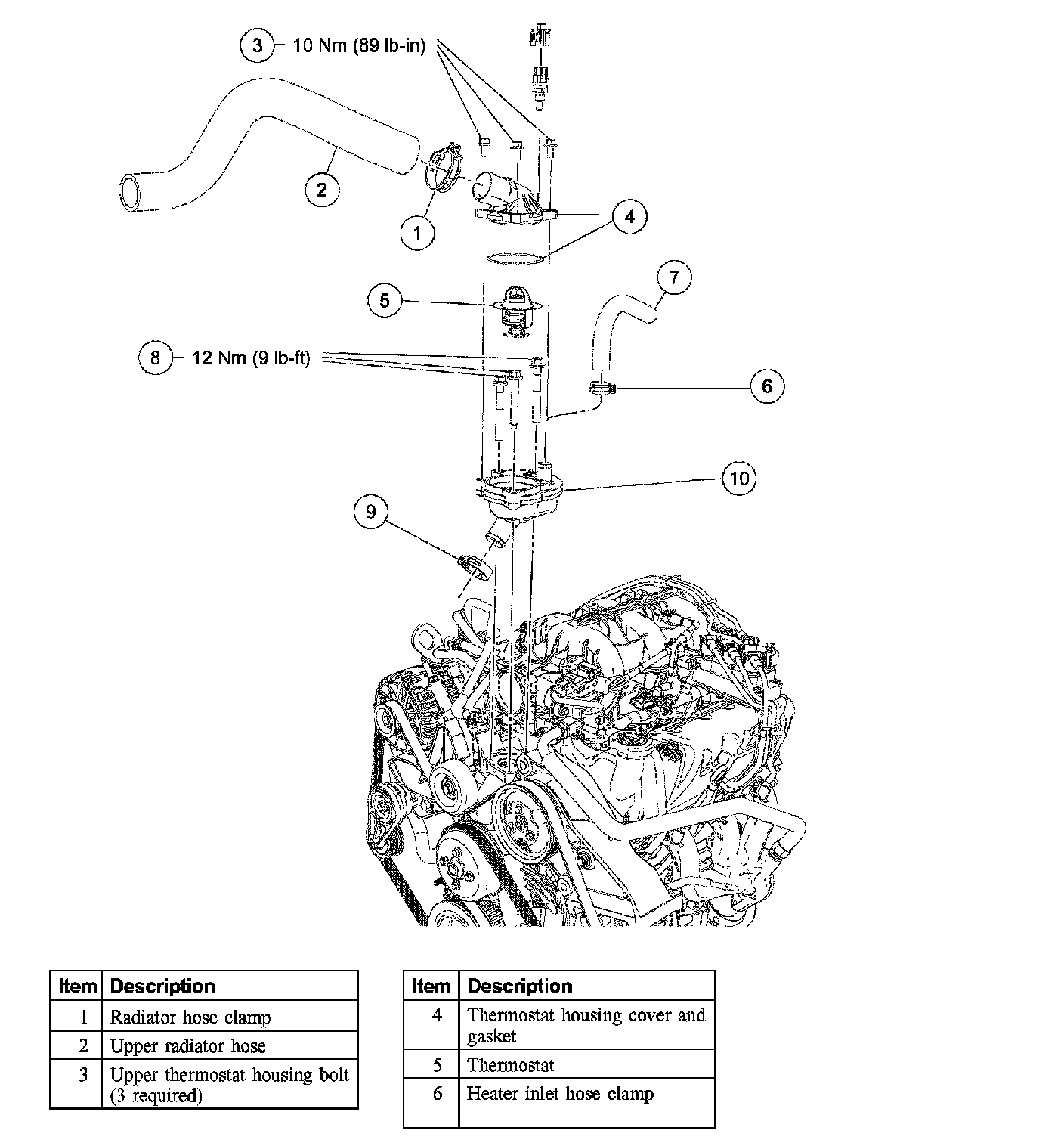

4.6L (3V)
