Focus L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
Splice Locations

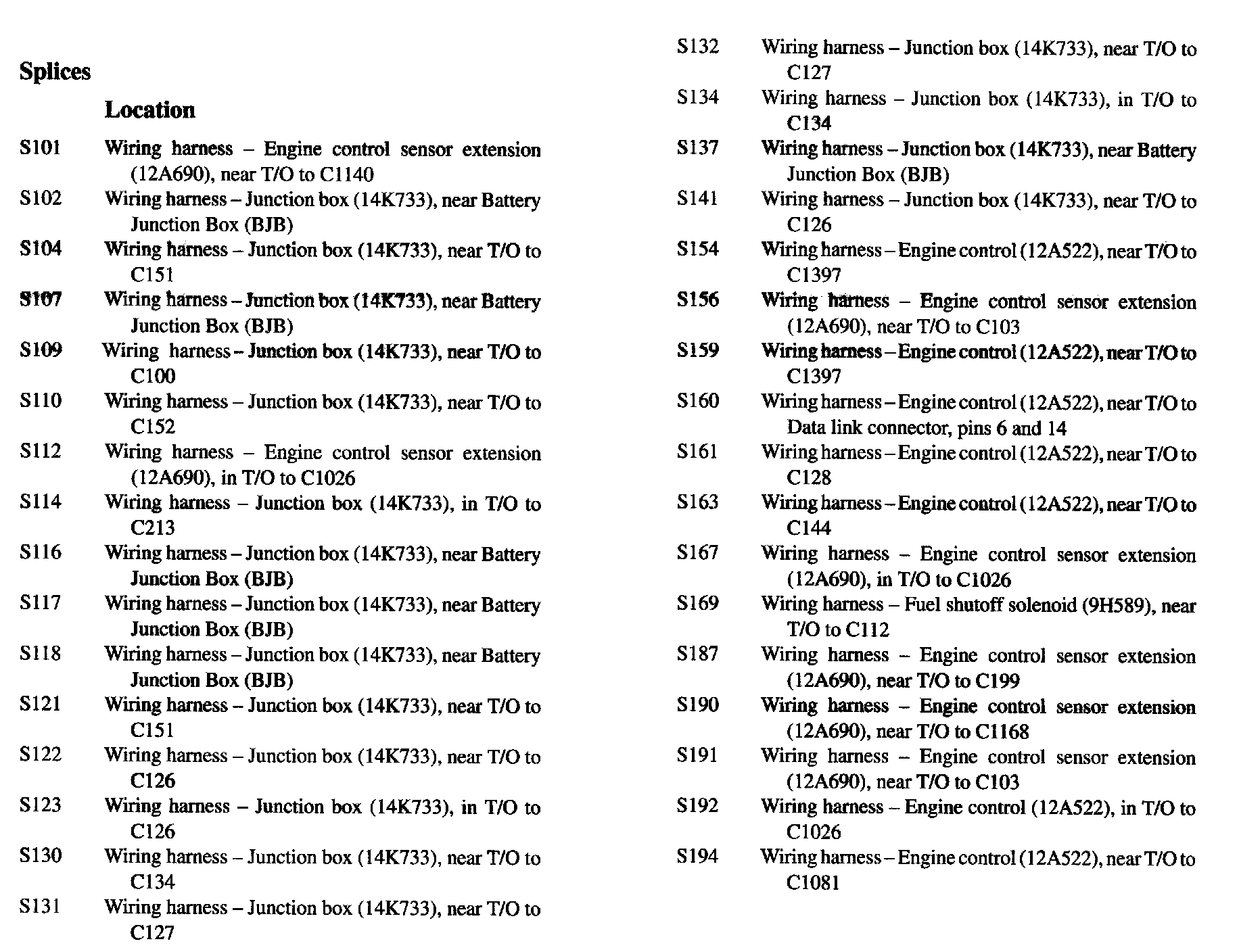

S101-S194:

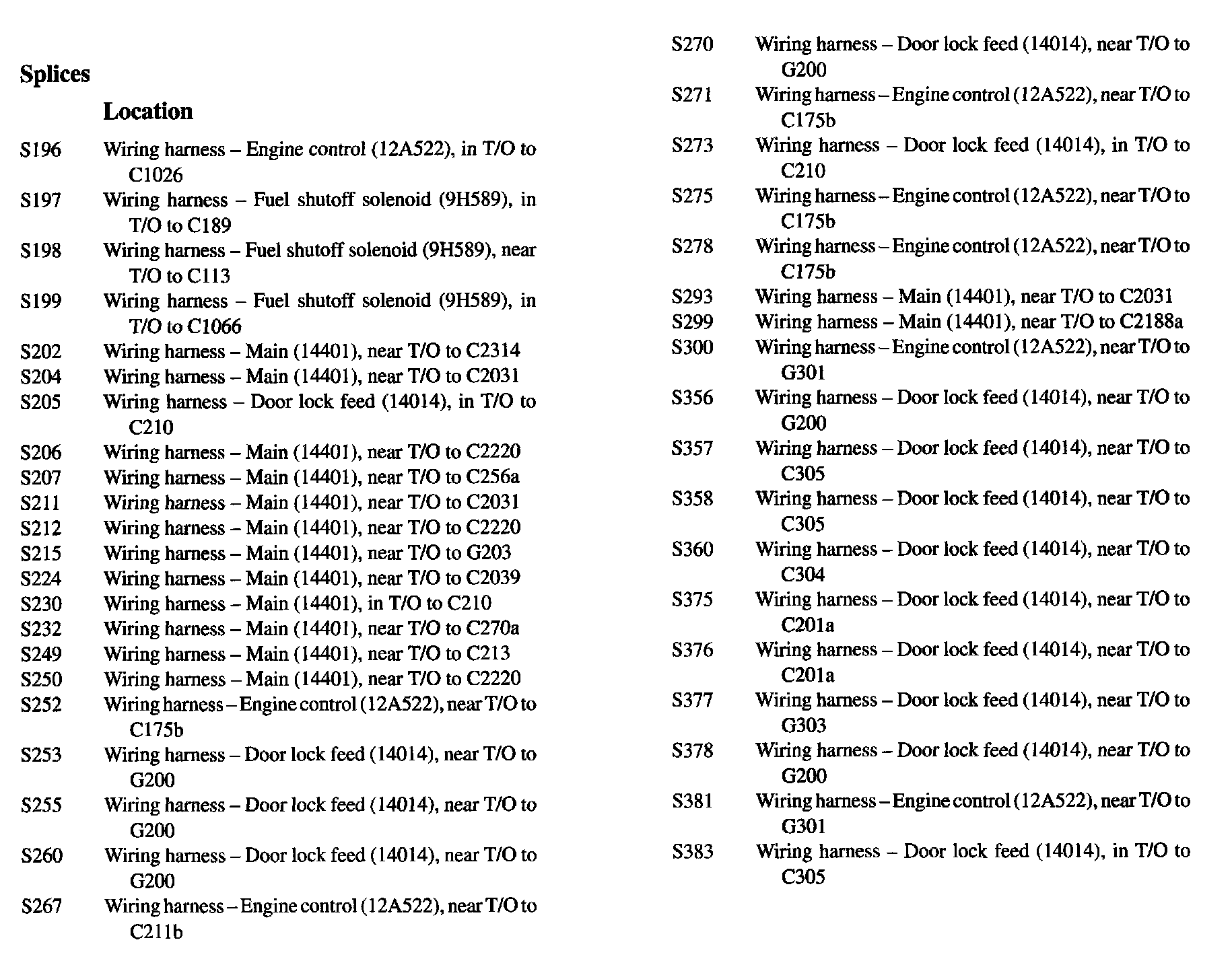

S196-S383:

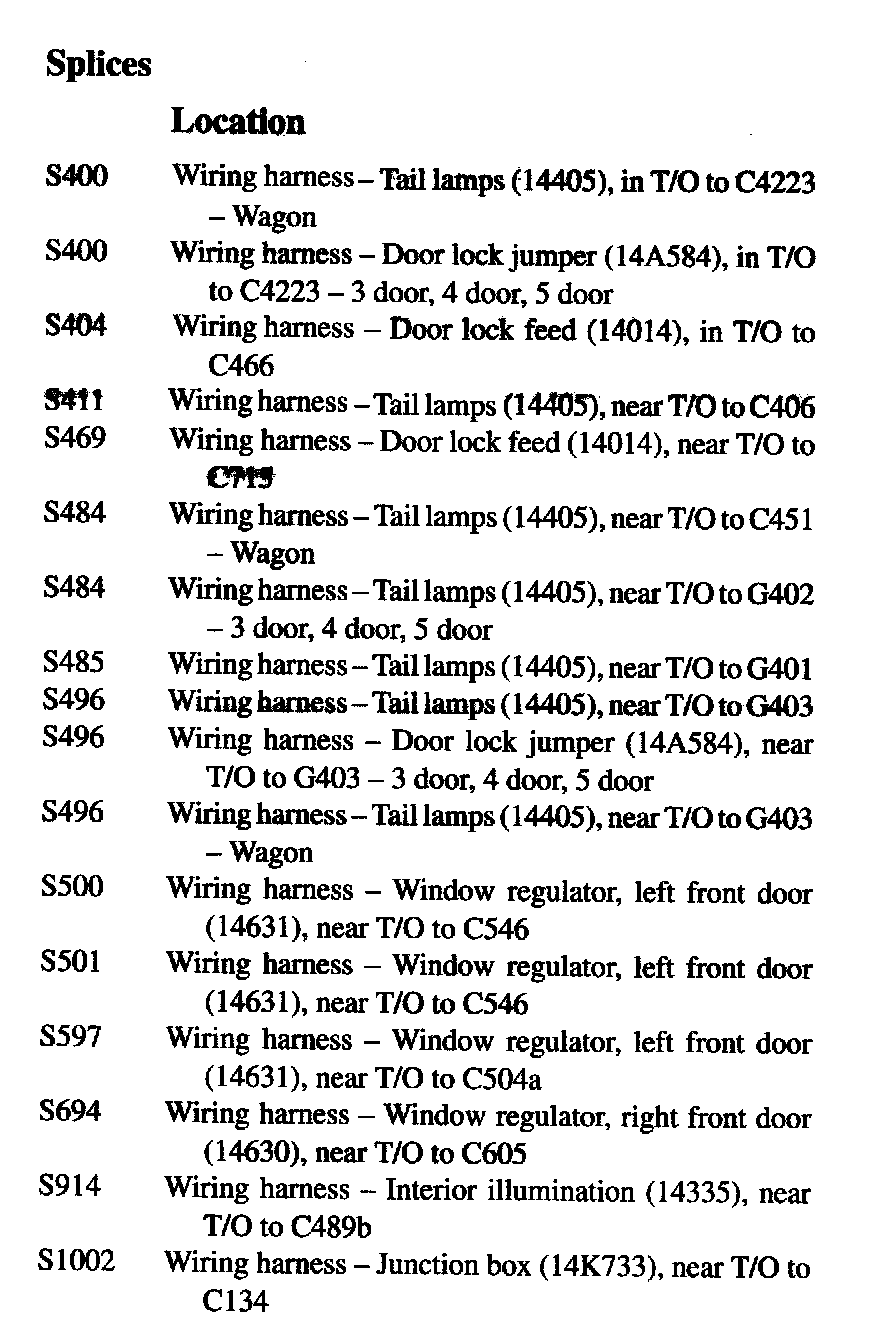

S400-S1002:
