Home >> Ford >> 2004 >> Mustang V8-4.6L SOHC VIN X >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Intake Manifold

Intake Manifold

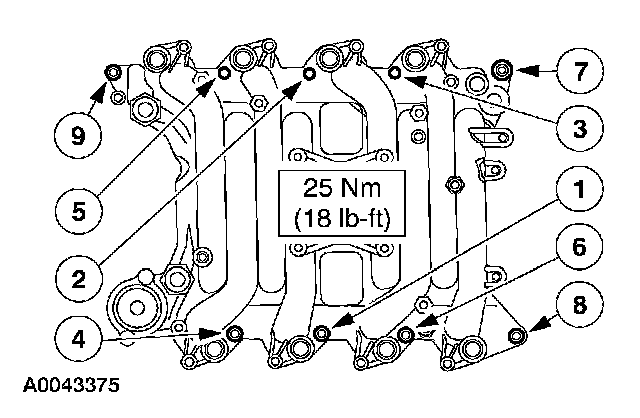

Intake Manifold Bolts 25 Nm (18 ft.lbs.)

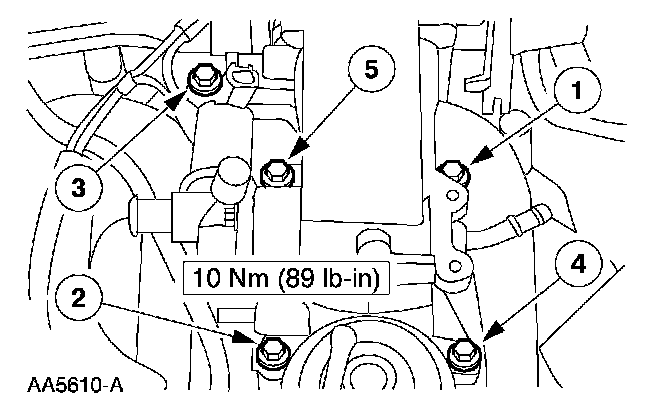

Throttle Body Bolts 10 Nm (89 in.lbs).
