Dual Automatic Temperature Control (DATC) Module DTC Index

DUAL ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (DATC) MODULE DIAGNOSTIC TROUBLE CODE (DTC) INDEX

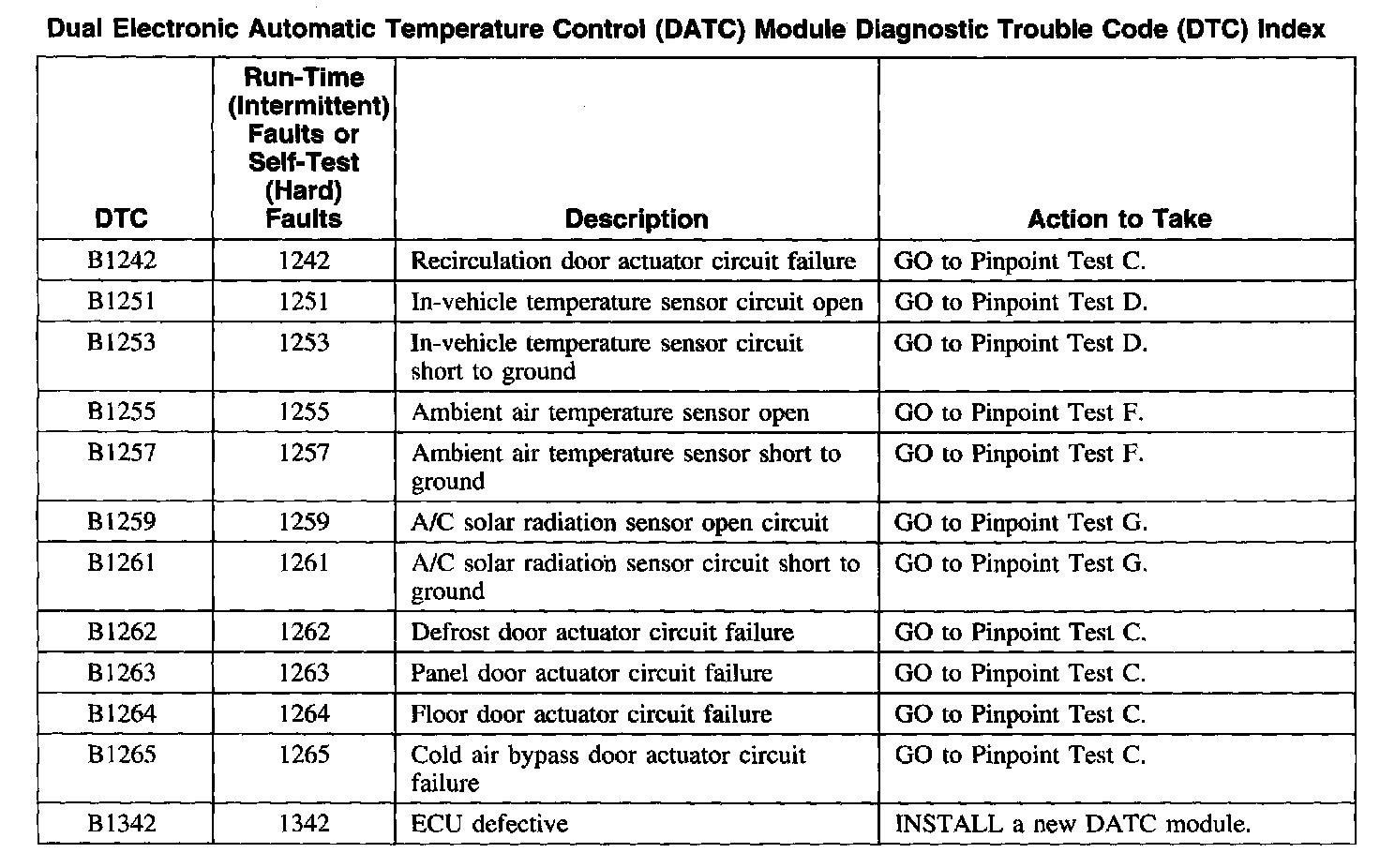

DTC Index B1242 - B1342:

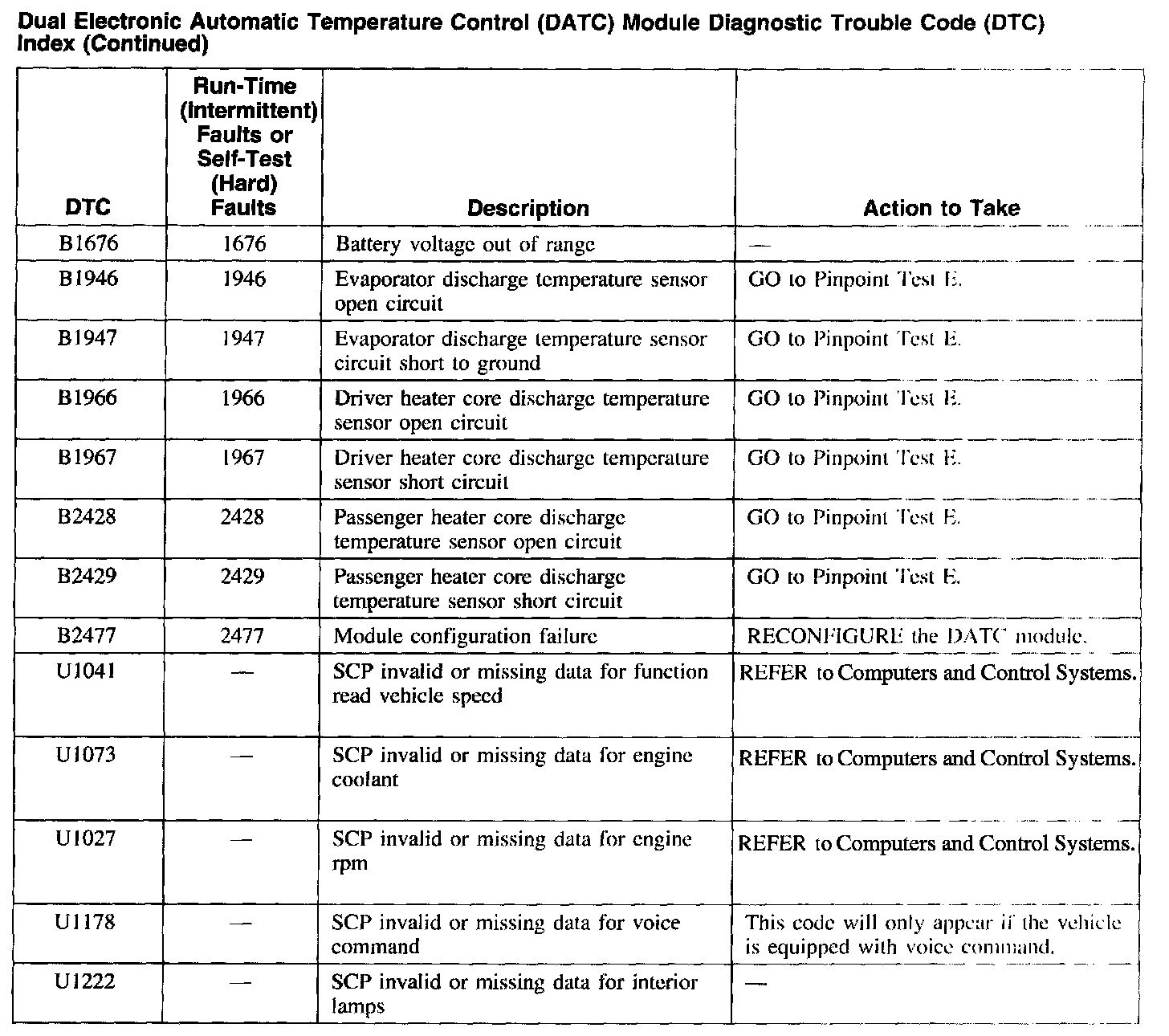

DTC Index B1676 - U1222:
