Test G

PINPOINT TEST G: NO MODULE/NETWORK COMMUNICATION - SCP NETWORK

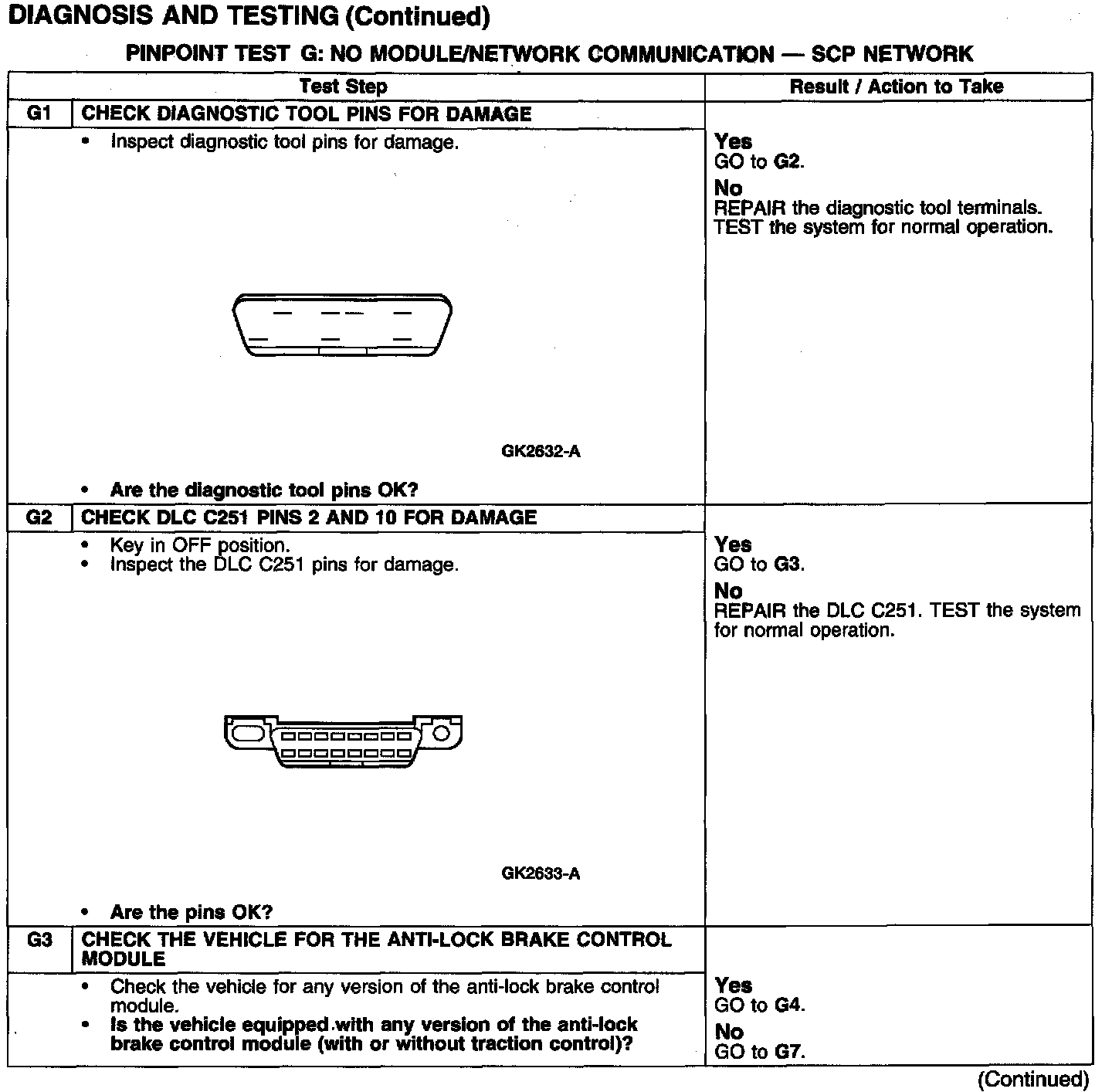

Test G1-G3:

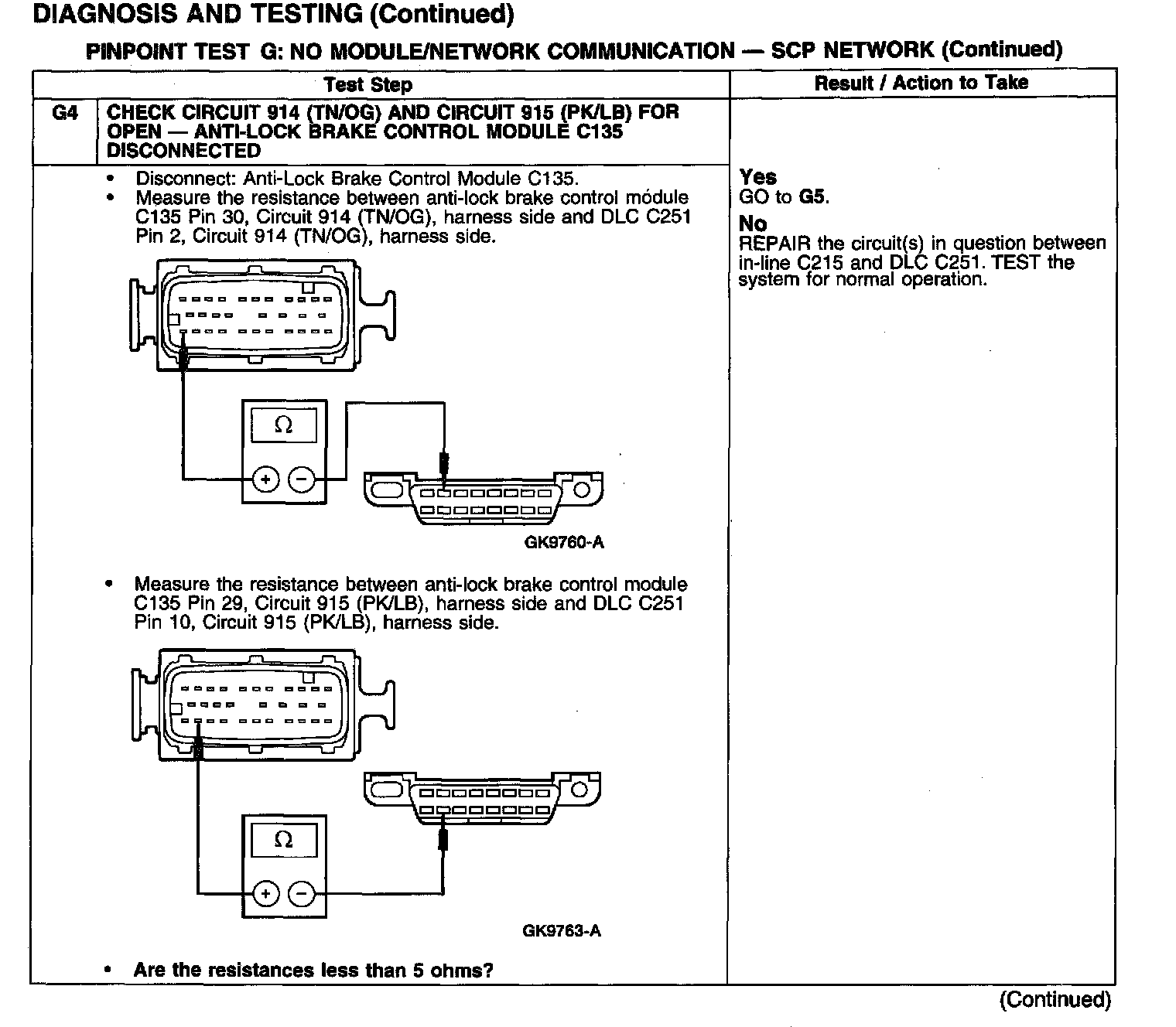

Test G4:

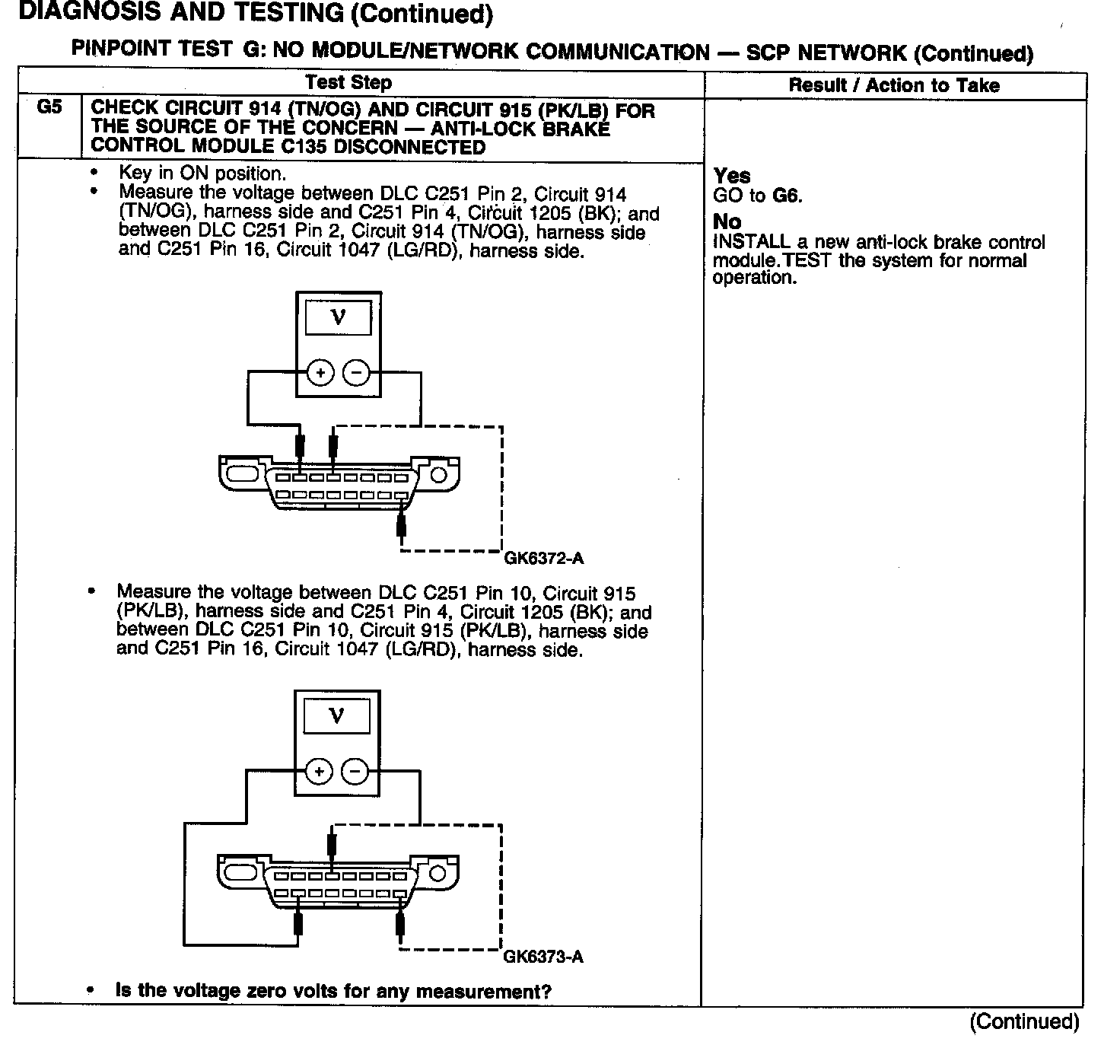

Test G5:

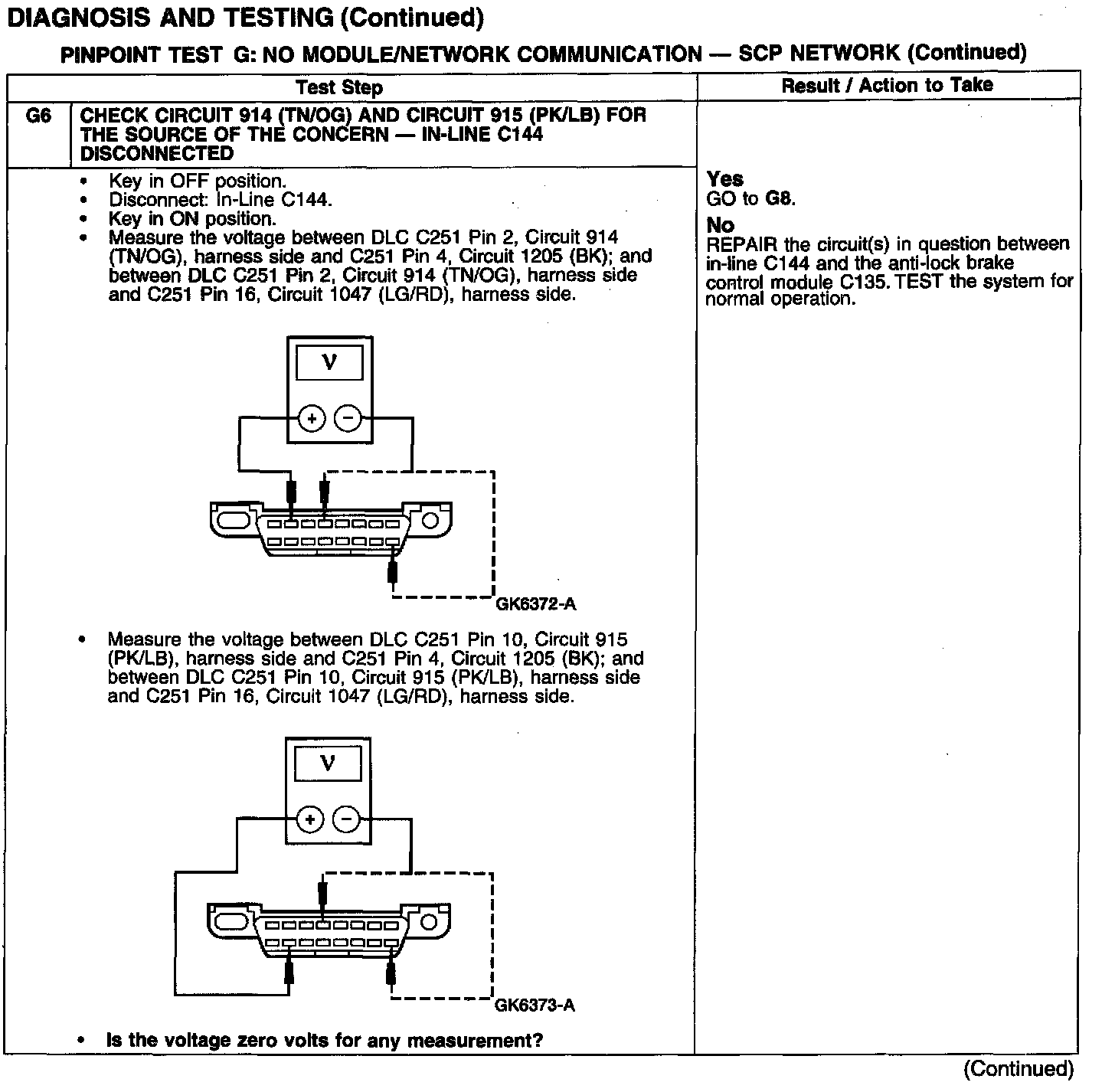

Test G6:

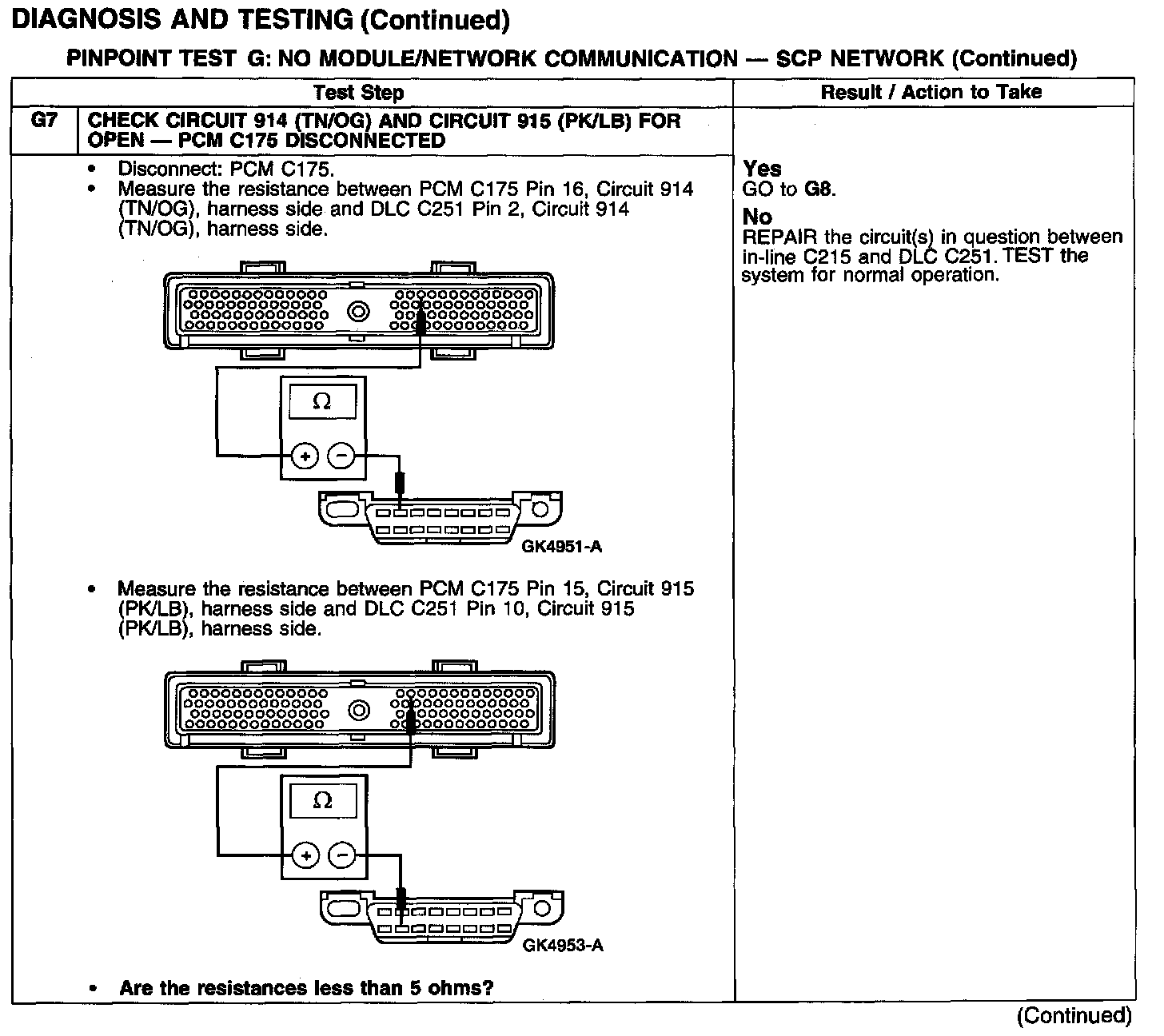

Test G7:

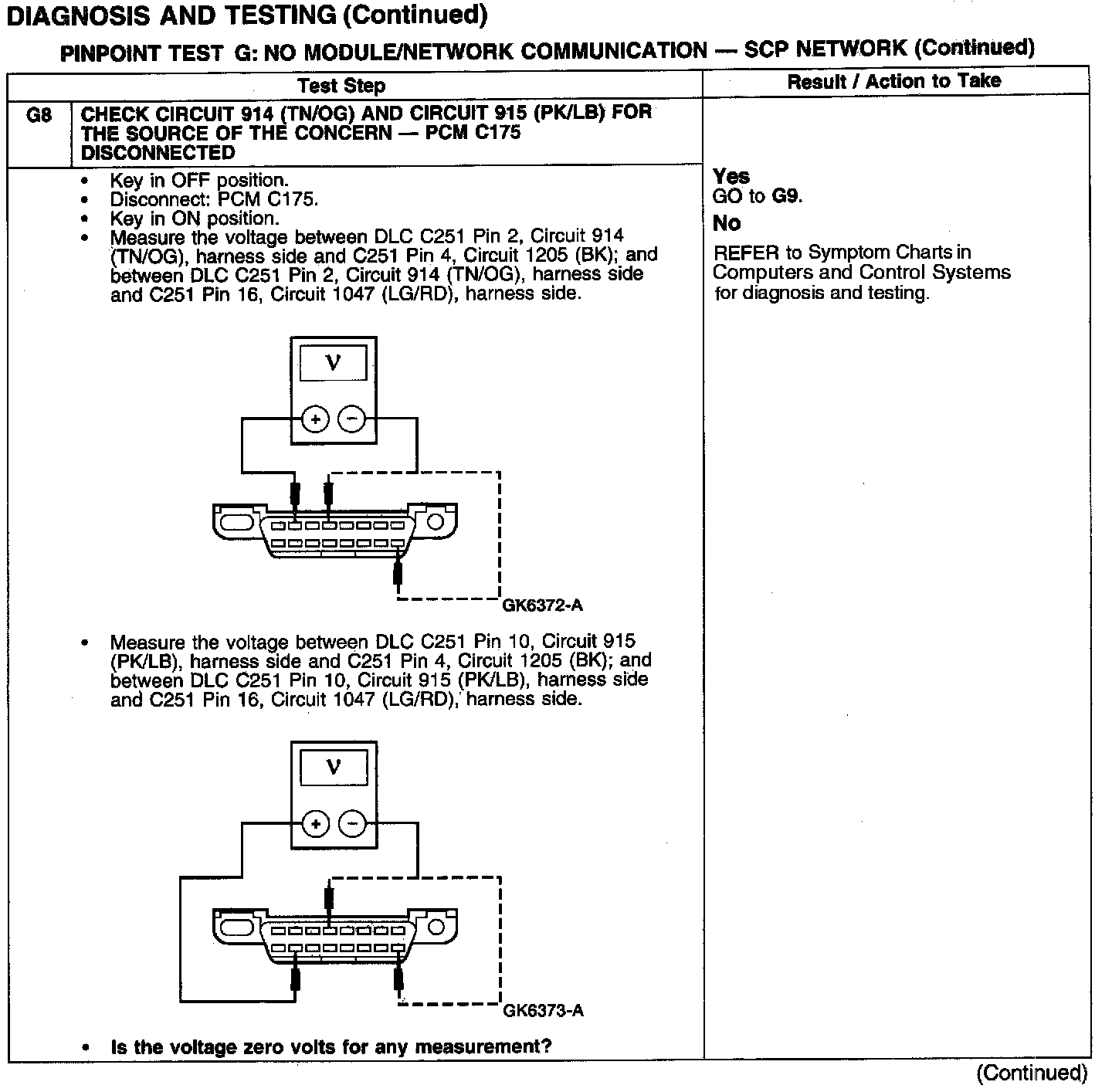

Test G8:

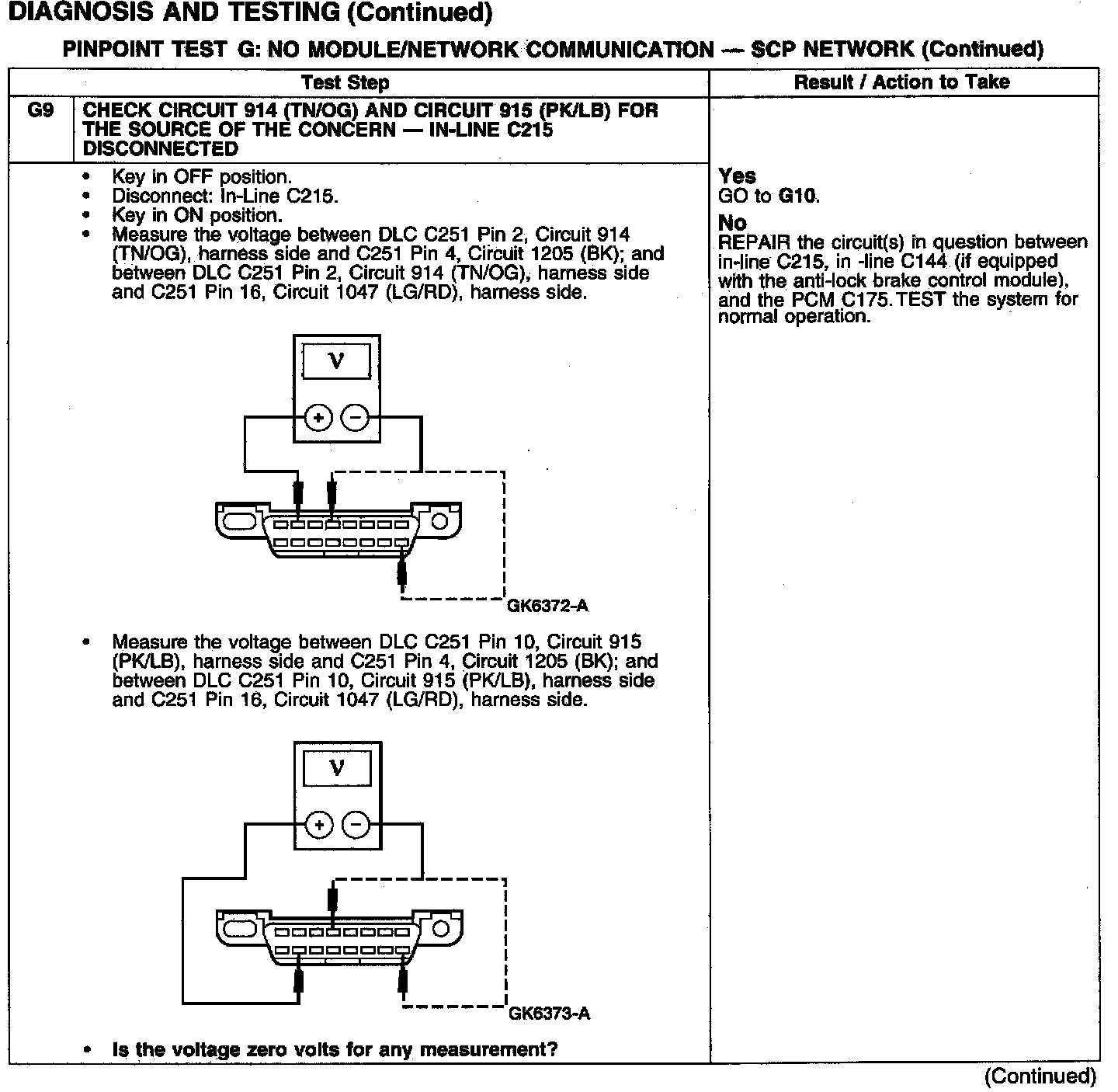

Test G9:

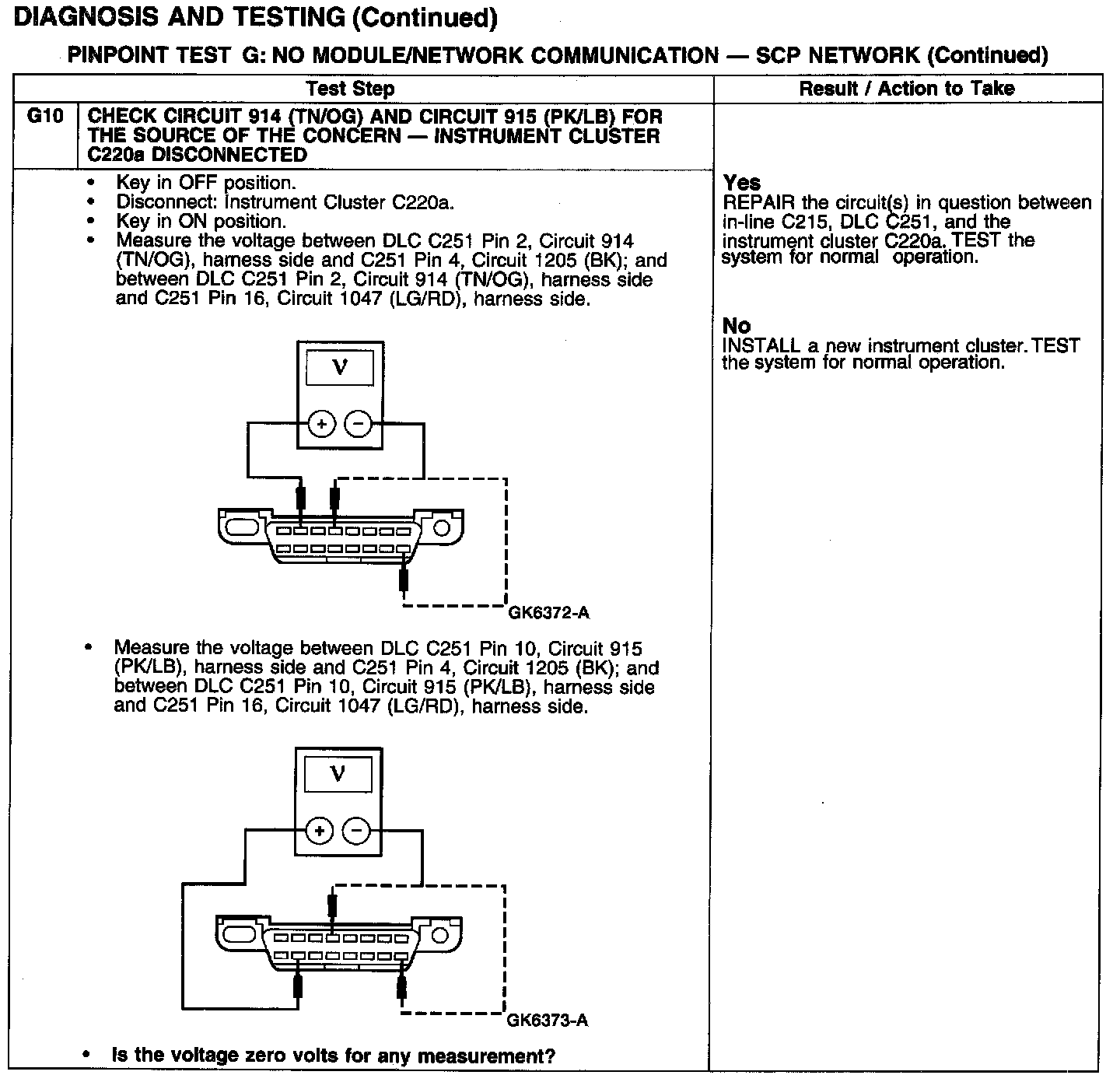

Test G10:
