PINPOINT TEST F: NO MODULE/NETWORK COMMUNICATION - ISO 9141 COMMUNICATION NETWORK

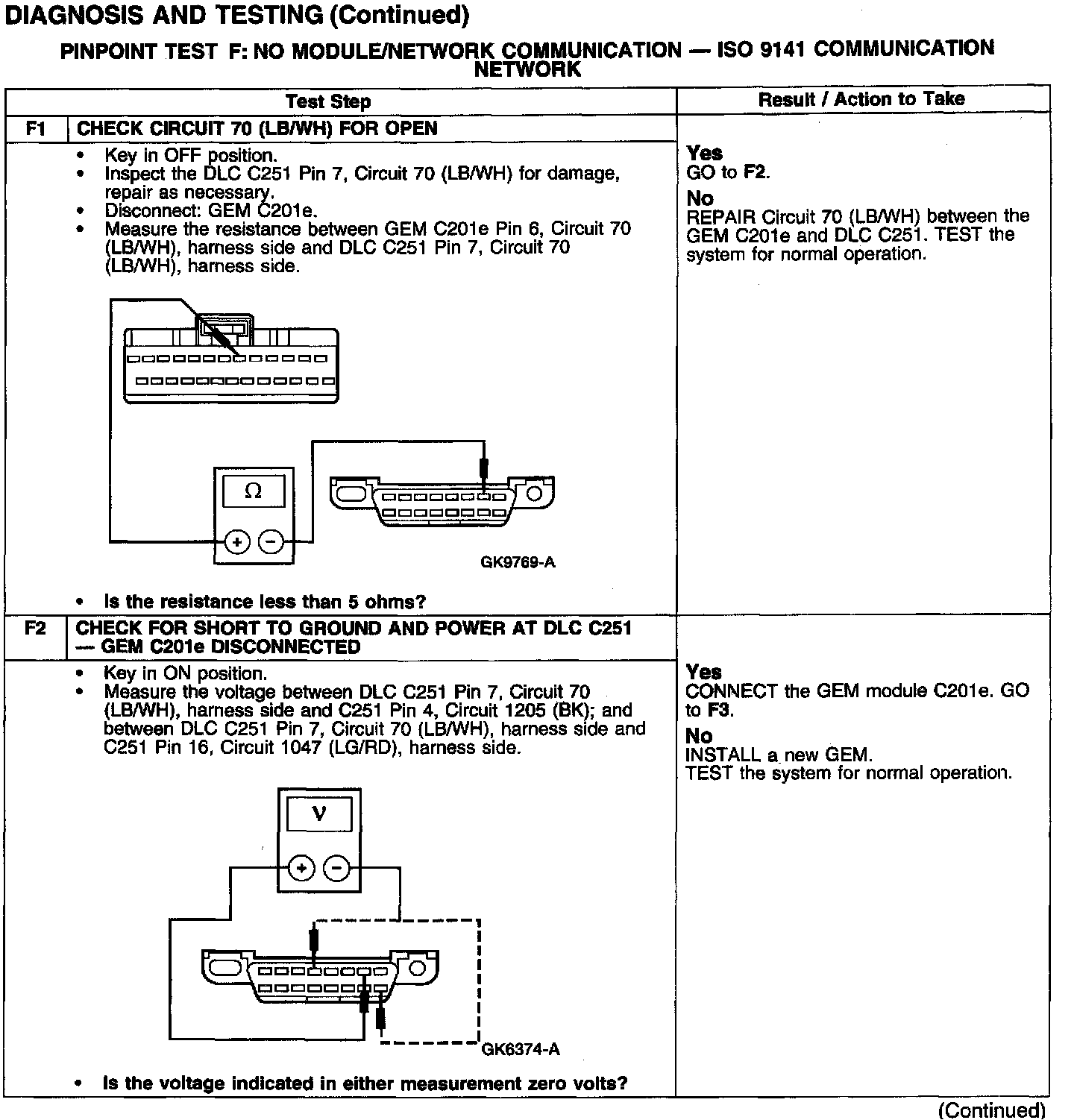

Test F1-F2:

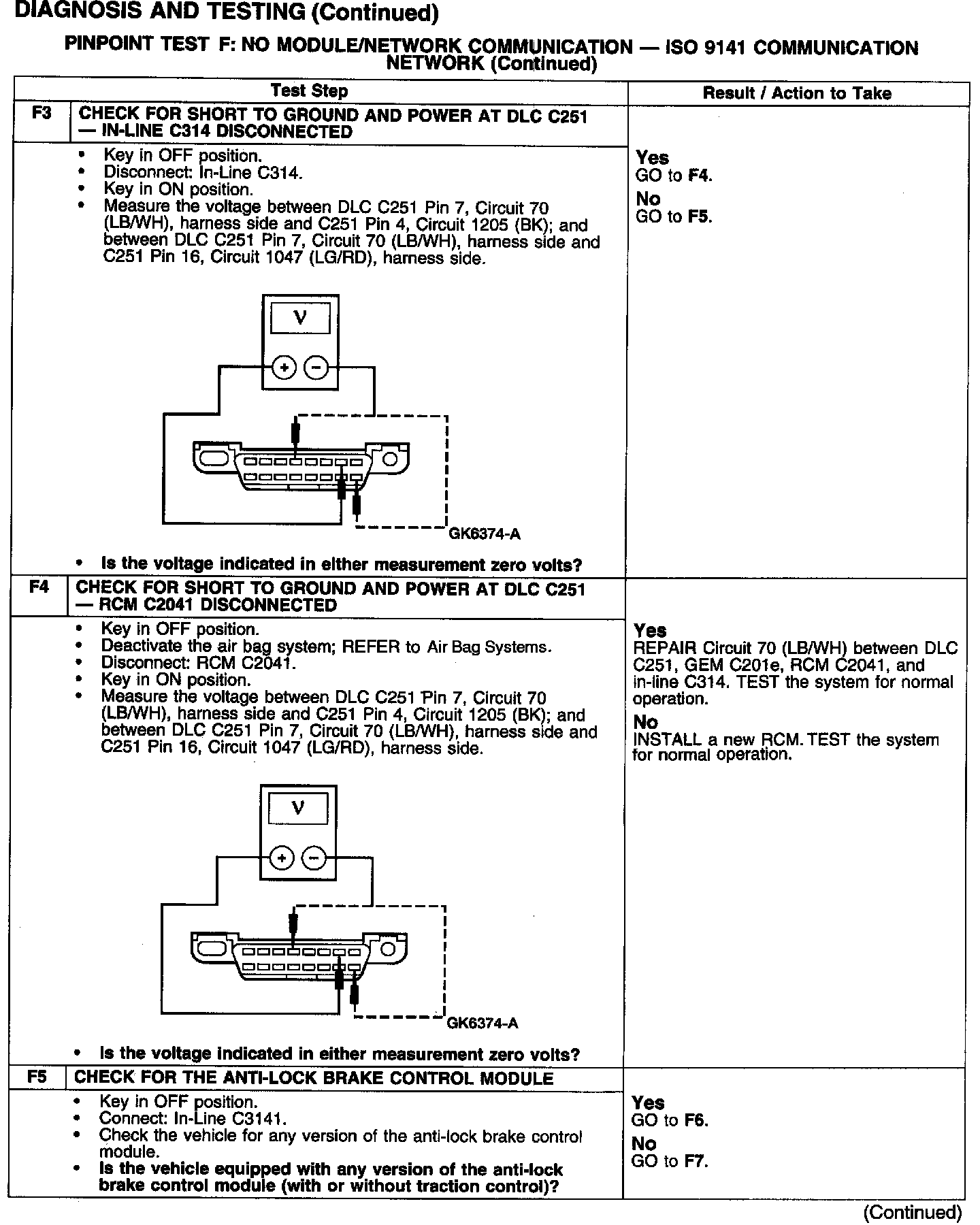

Test F3-F5:

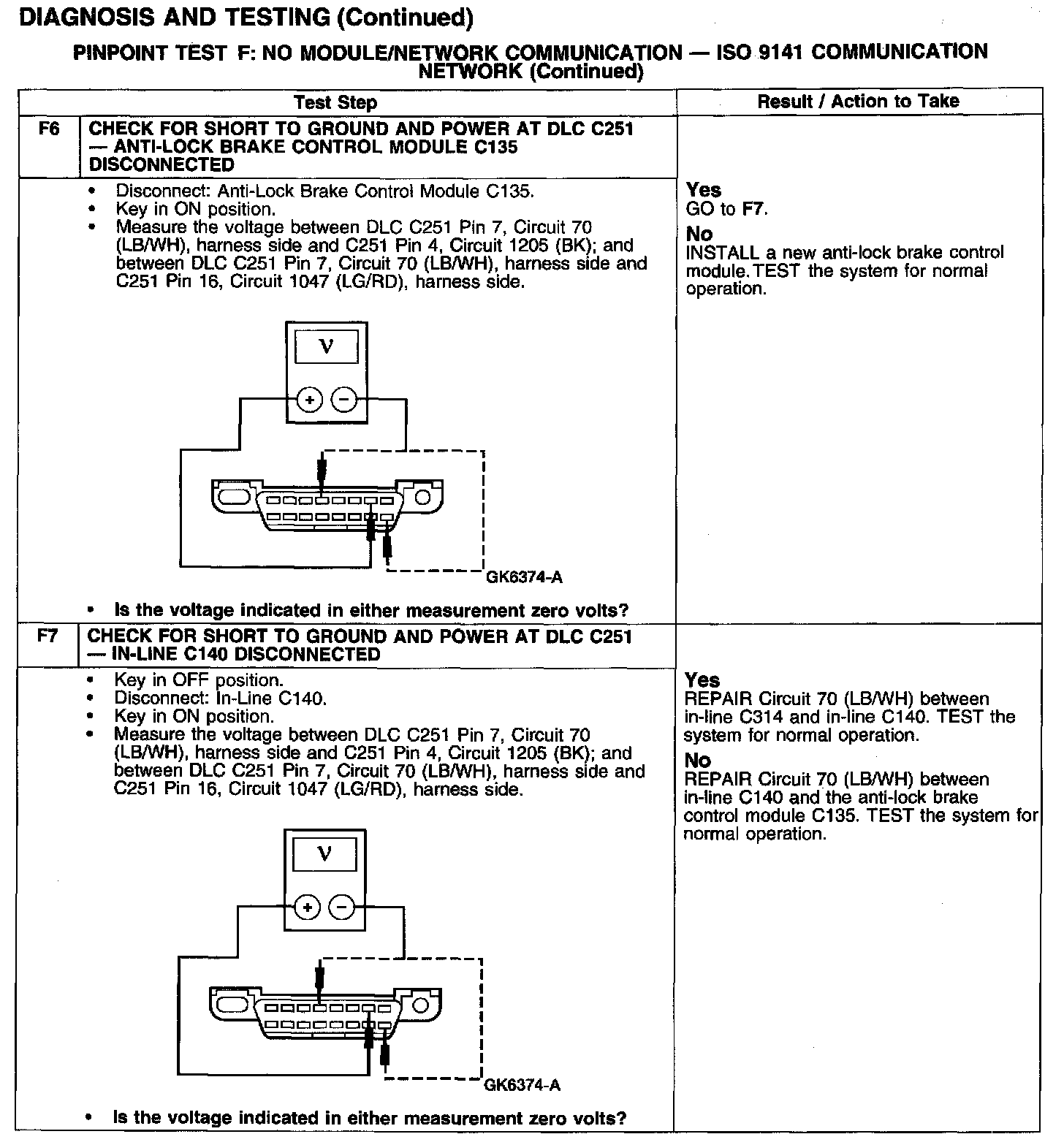

Test F6-F7:
