Steering System - General Information





General Specifications






Steering Gear Insulator Bushing






Turning Effort


Part 1 Of 2:




Part 2 Of 2:

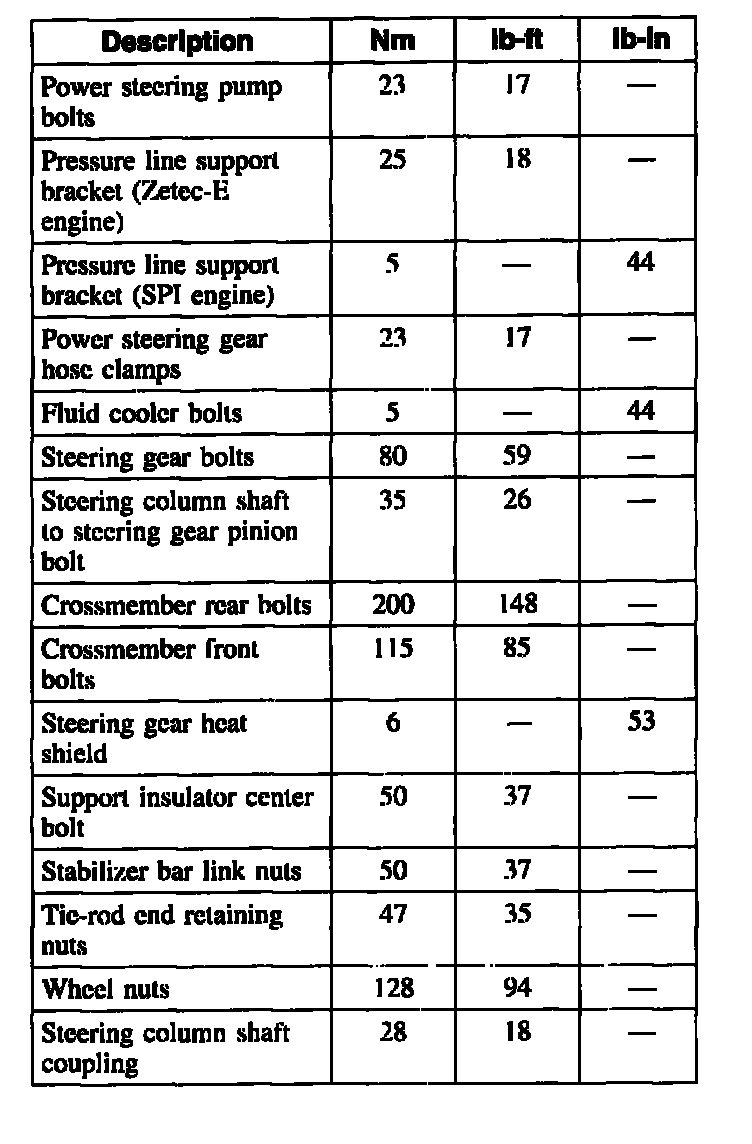

Torque Specifications
