FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Focus L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test I
Test I
PINPOINT TEST I: NO CAN NETWORK COMMUNICATION - 2.3L ONLY

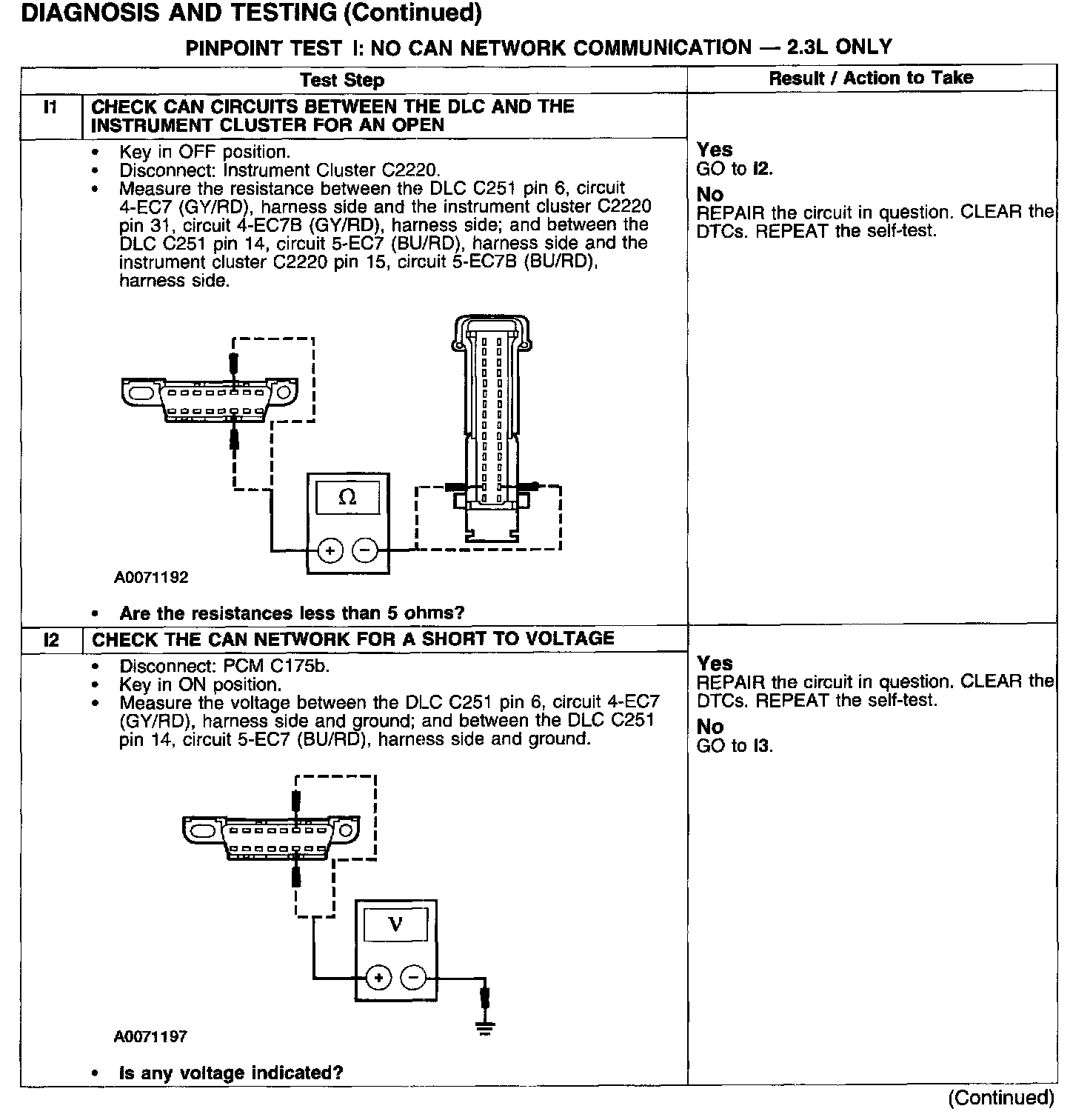

Test I1-I2:

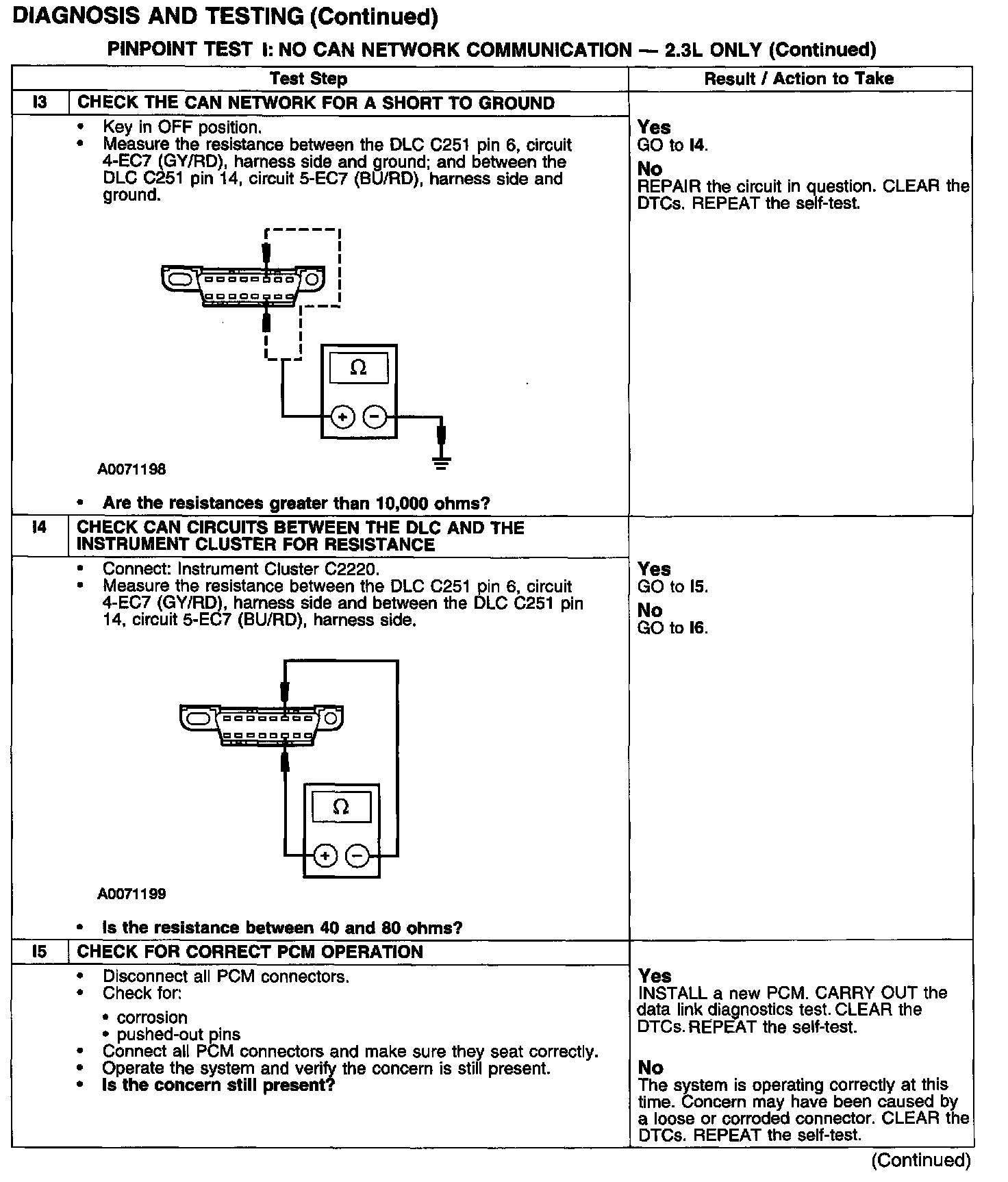

Test I3-I5:

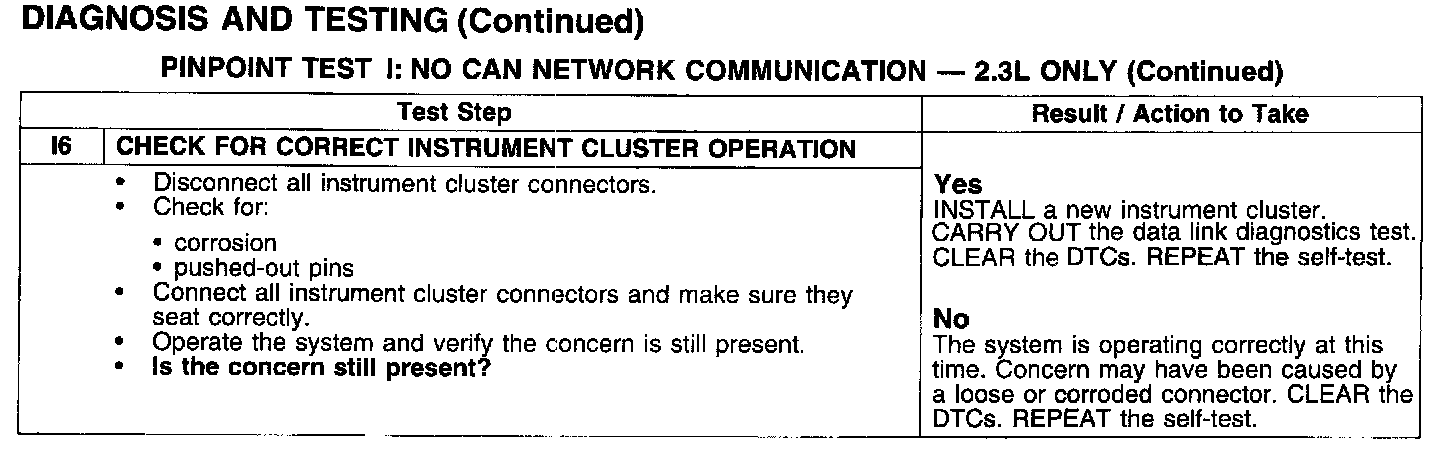

Test I6:
