Home >> Ford >> 2003 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

Components

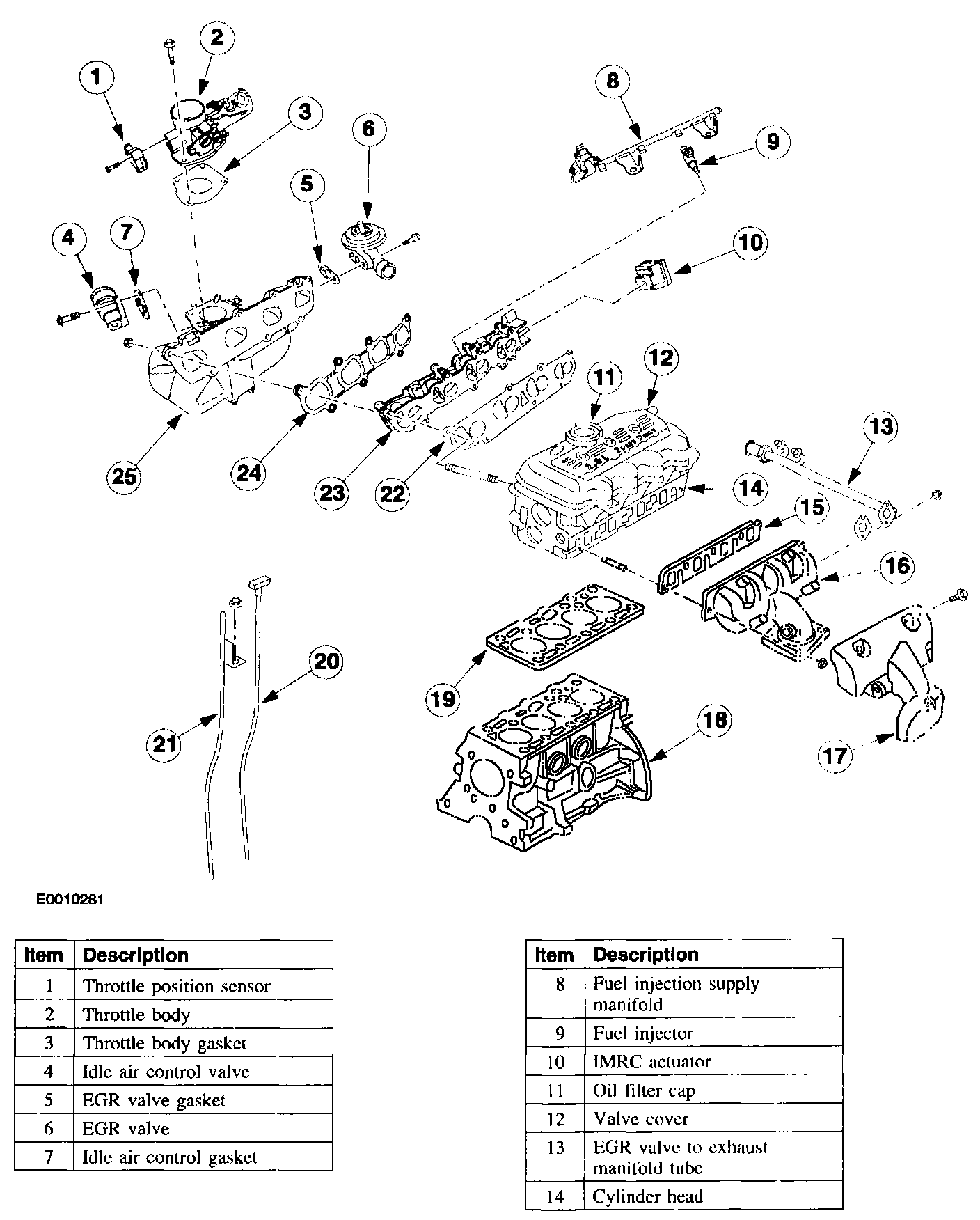

Upper Engine Components

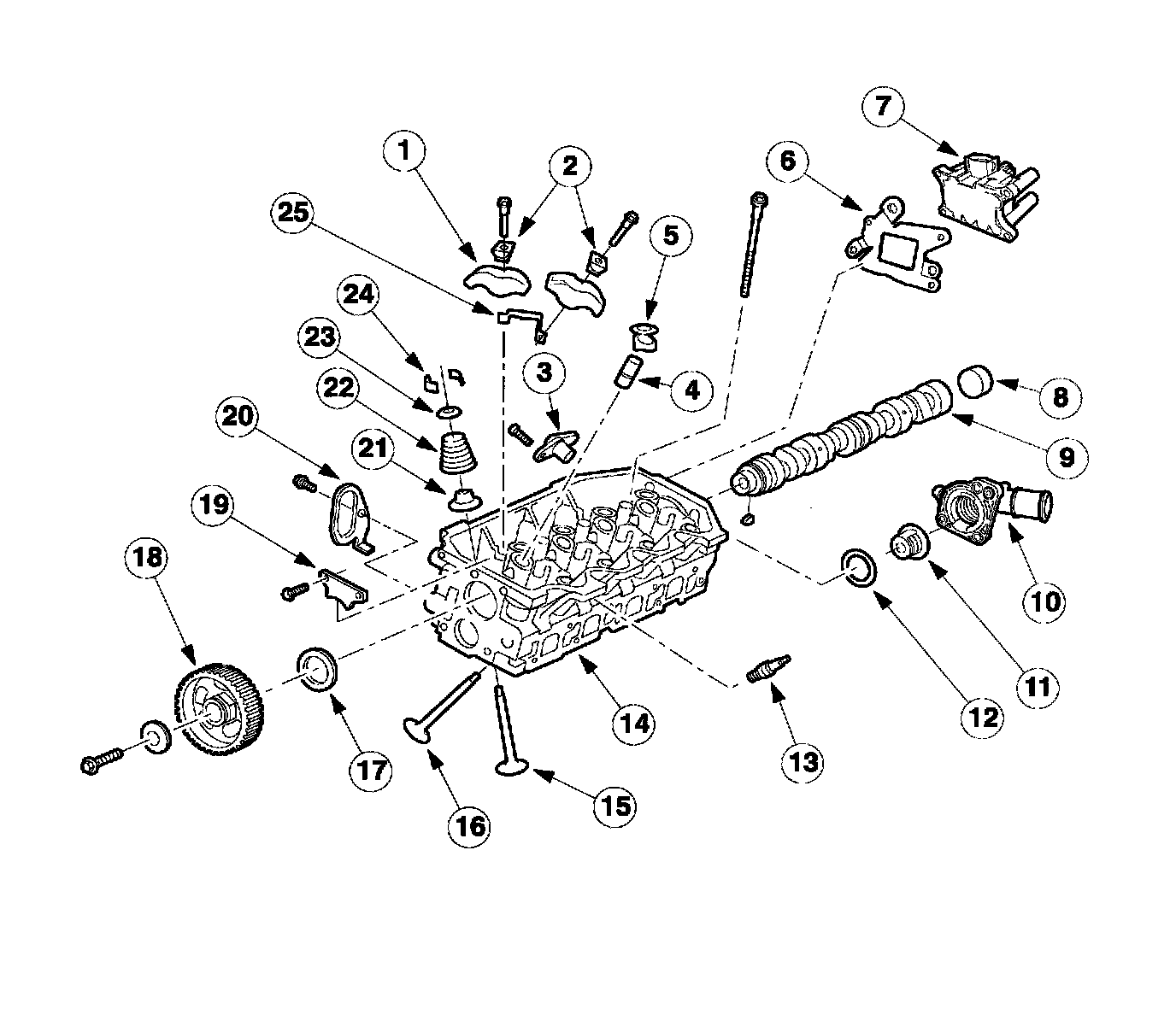

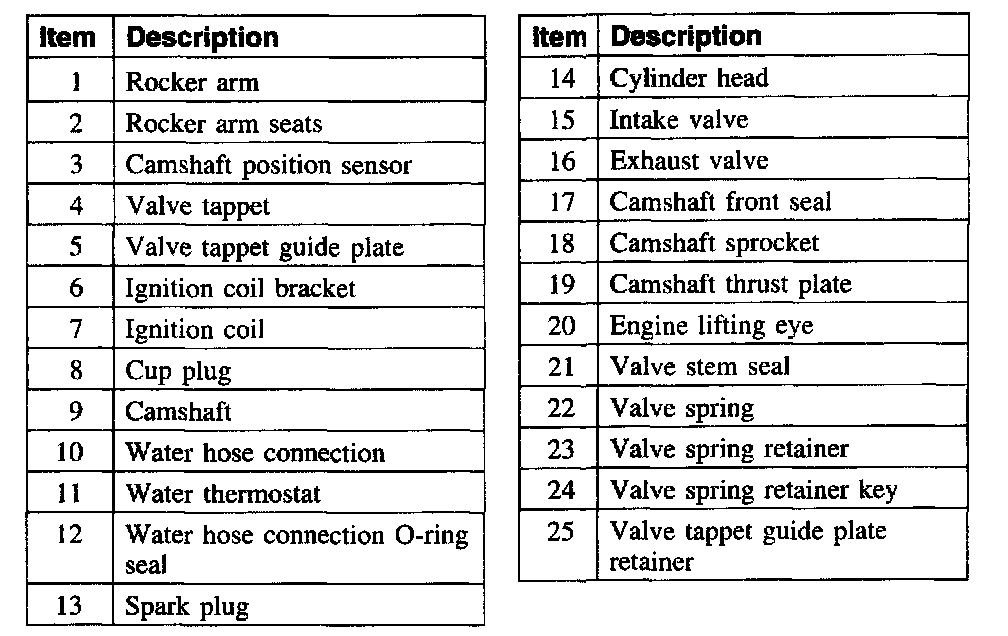

Cylinder Head Components

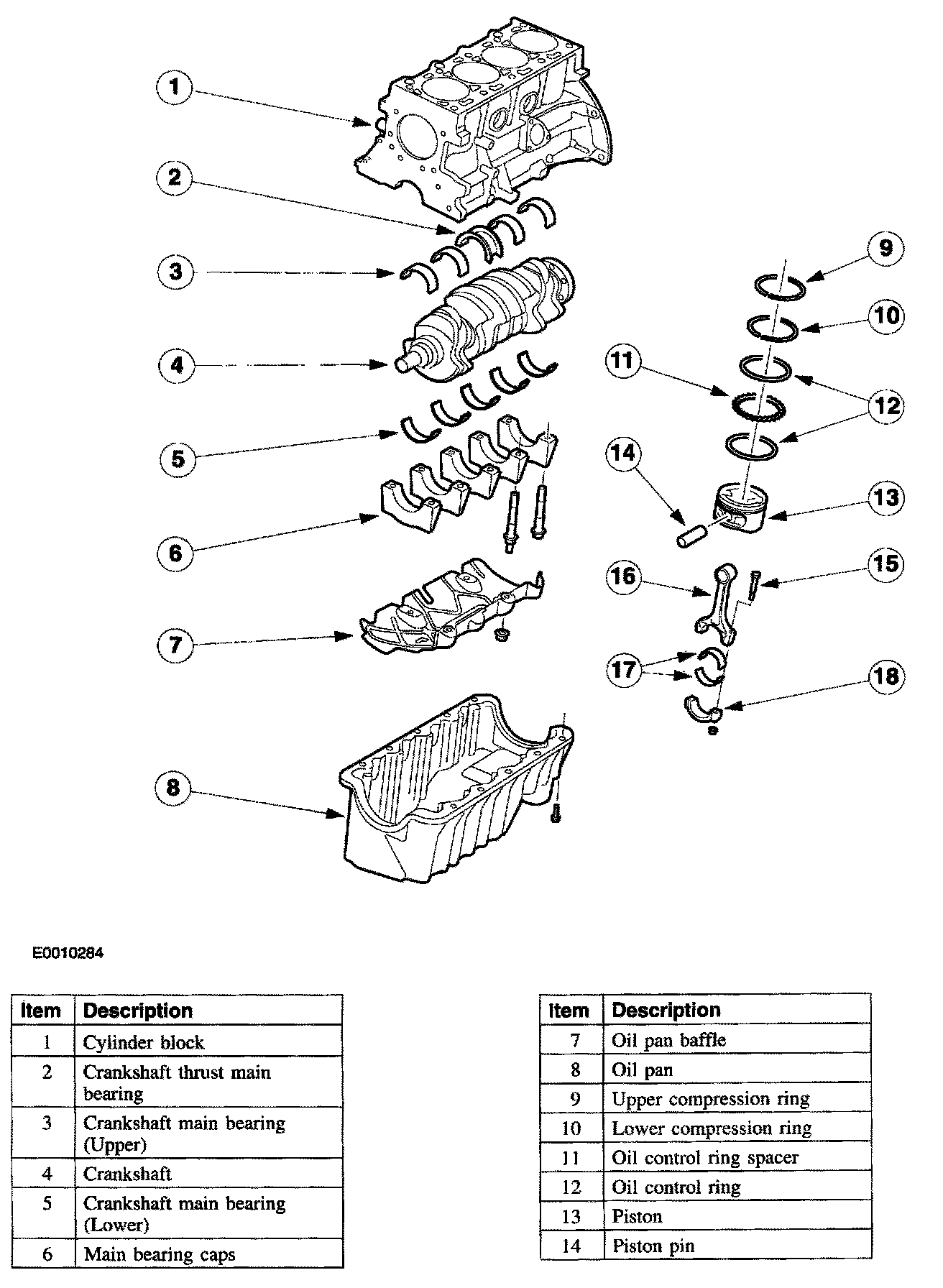

Lower Engine Components

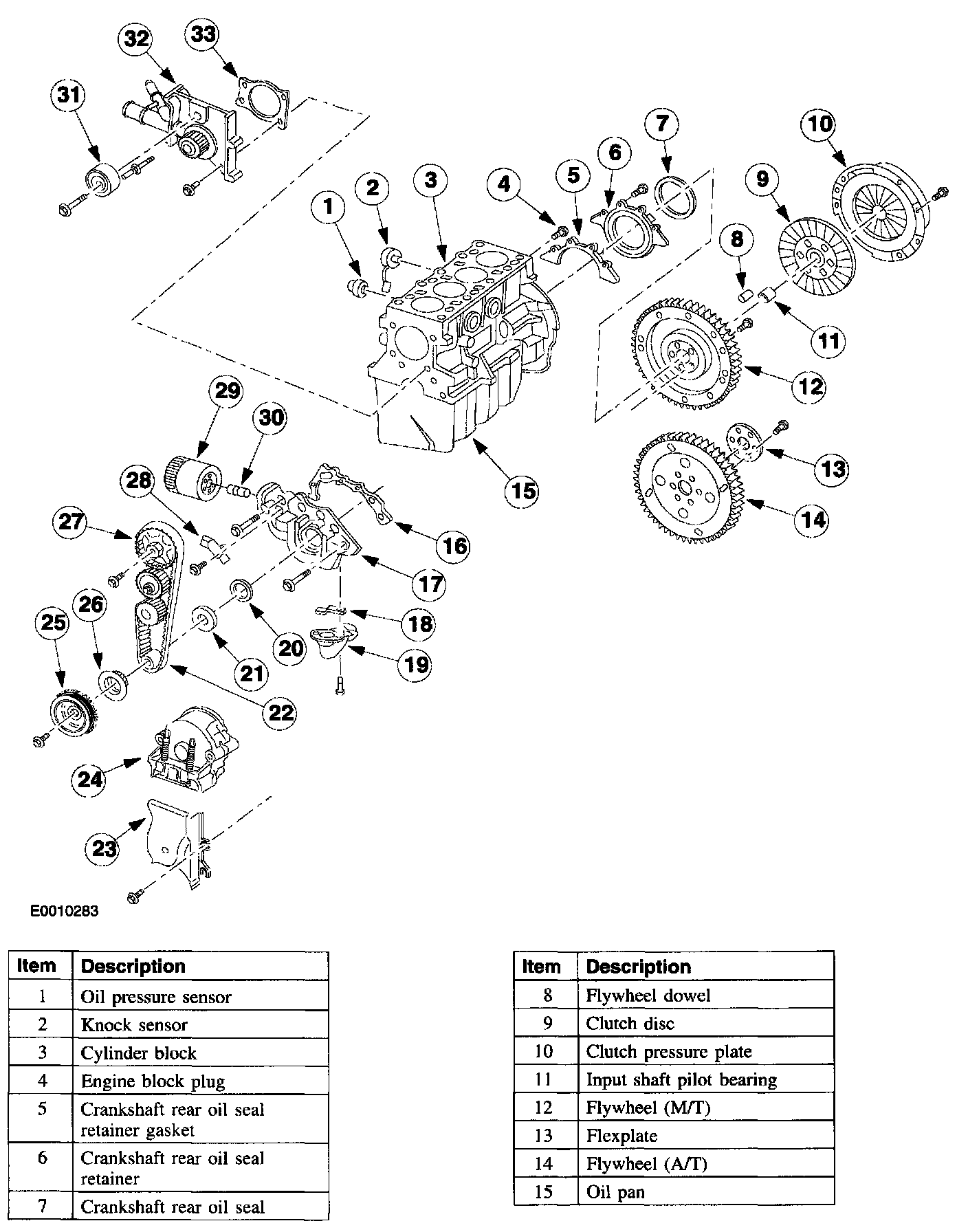

Lower Engine Components
