Home >> Ford >> 2003 >> Escort ZX2 L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Maintenance >> Alignment >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: DRIFT LEFT OR RIGHT

A1 - A2:

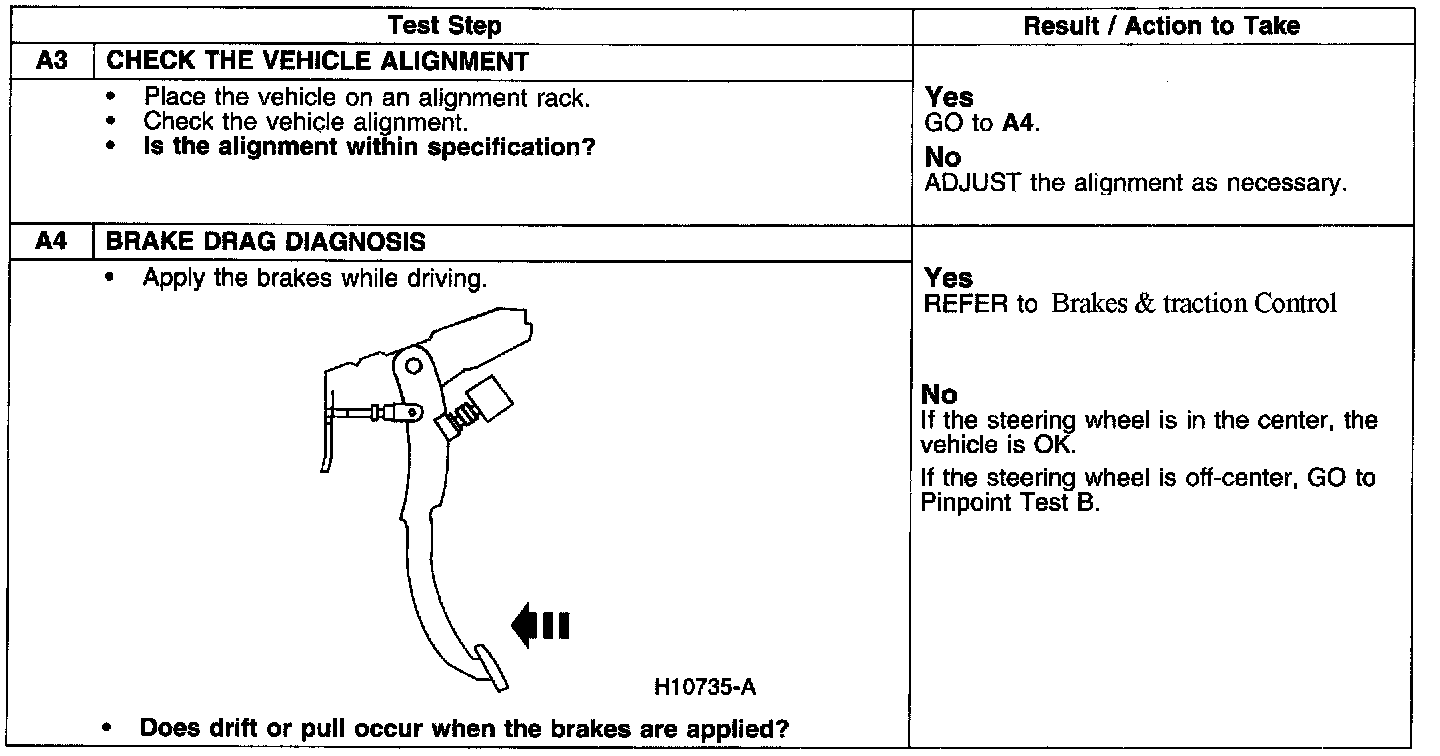

A3 - A4:
