Home >> Ford >> 2002 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Testing and Inspection >> Master Window/Door Lock/Unlock Switch >> Convertible

Convertible

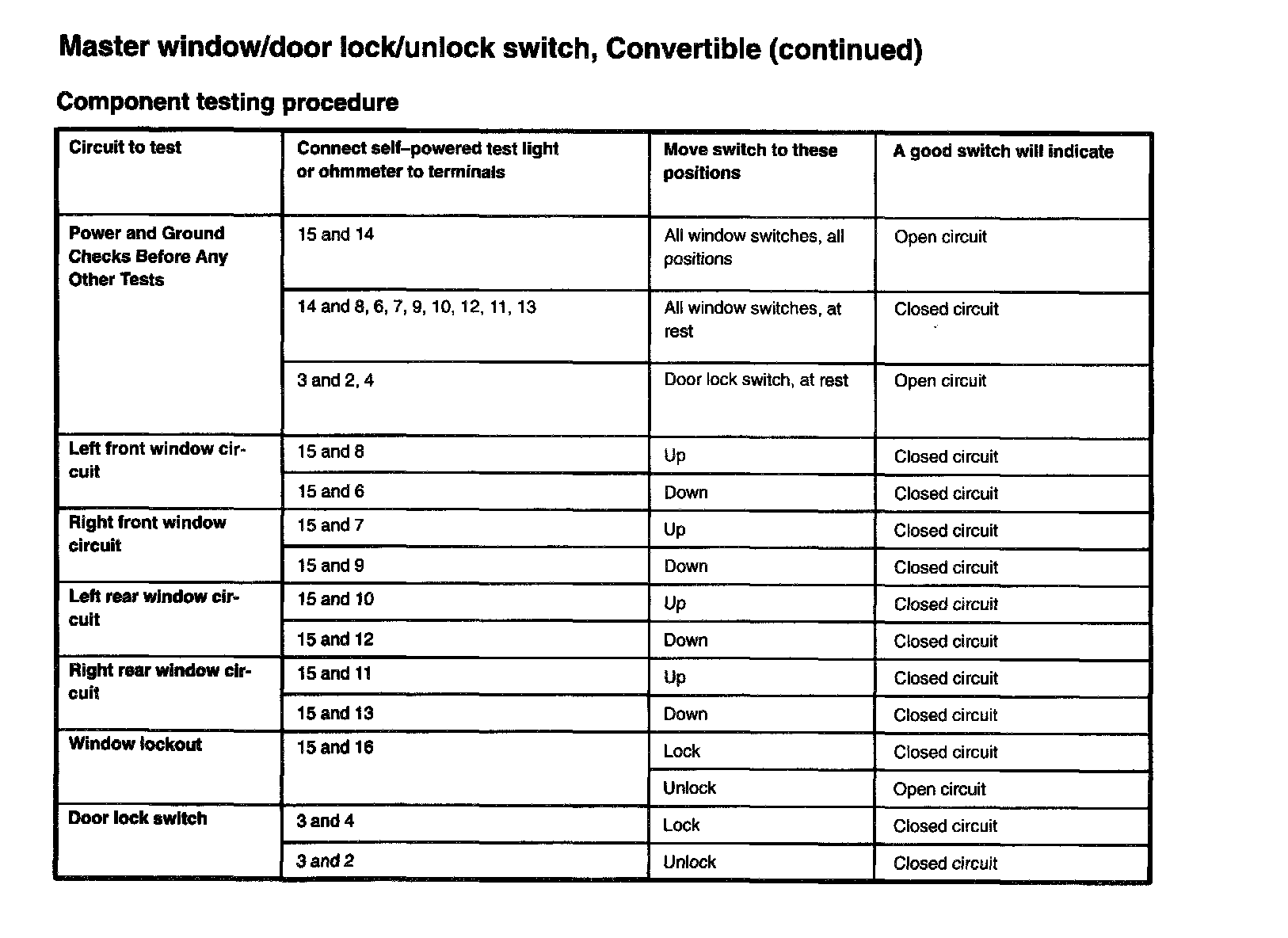

Introduction To Component Testing:

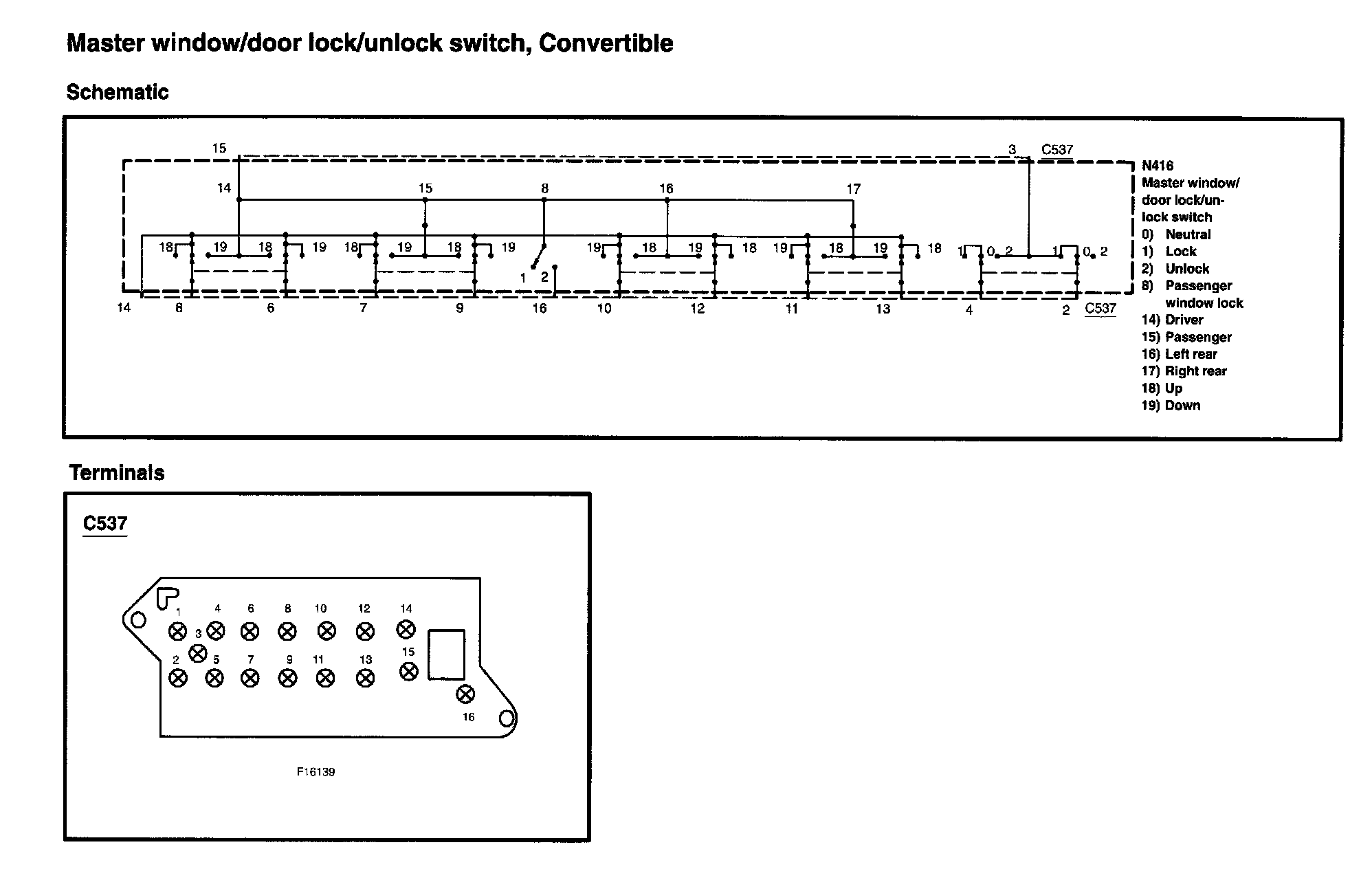

Master Window/Door Lock/Unlock, Convertible:

Master Window/Door Lock/Unlock, Convertible:
