Home >> Ford >> 2002 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Test G: No Module/Network Communication - ISO 9141 Network

Test G: No Module/Network Communication - ISO 9141 Network

G1:

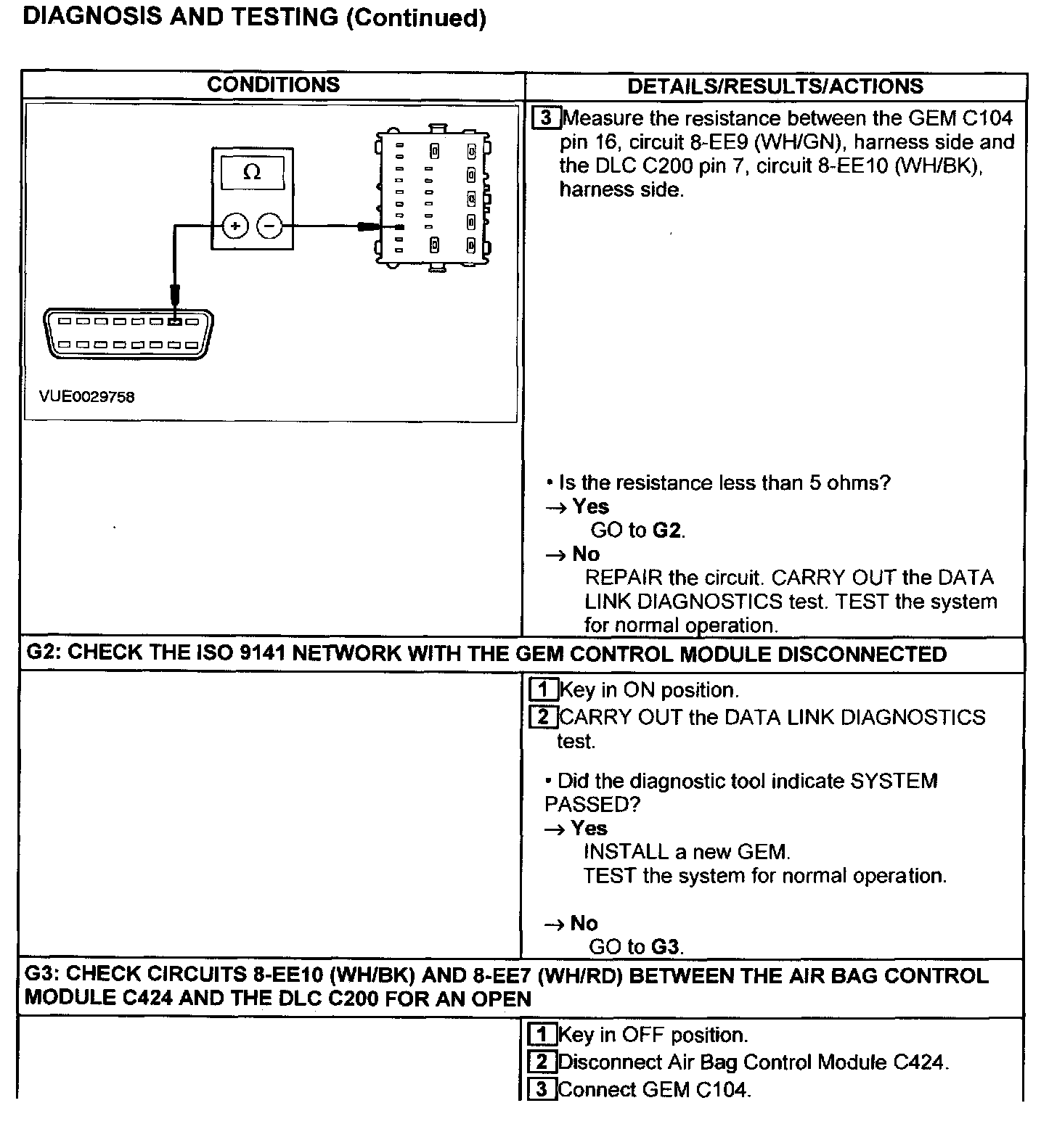

G1 - G3:

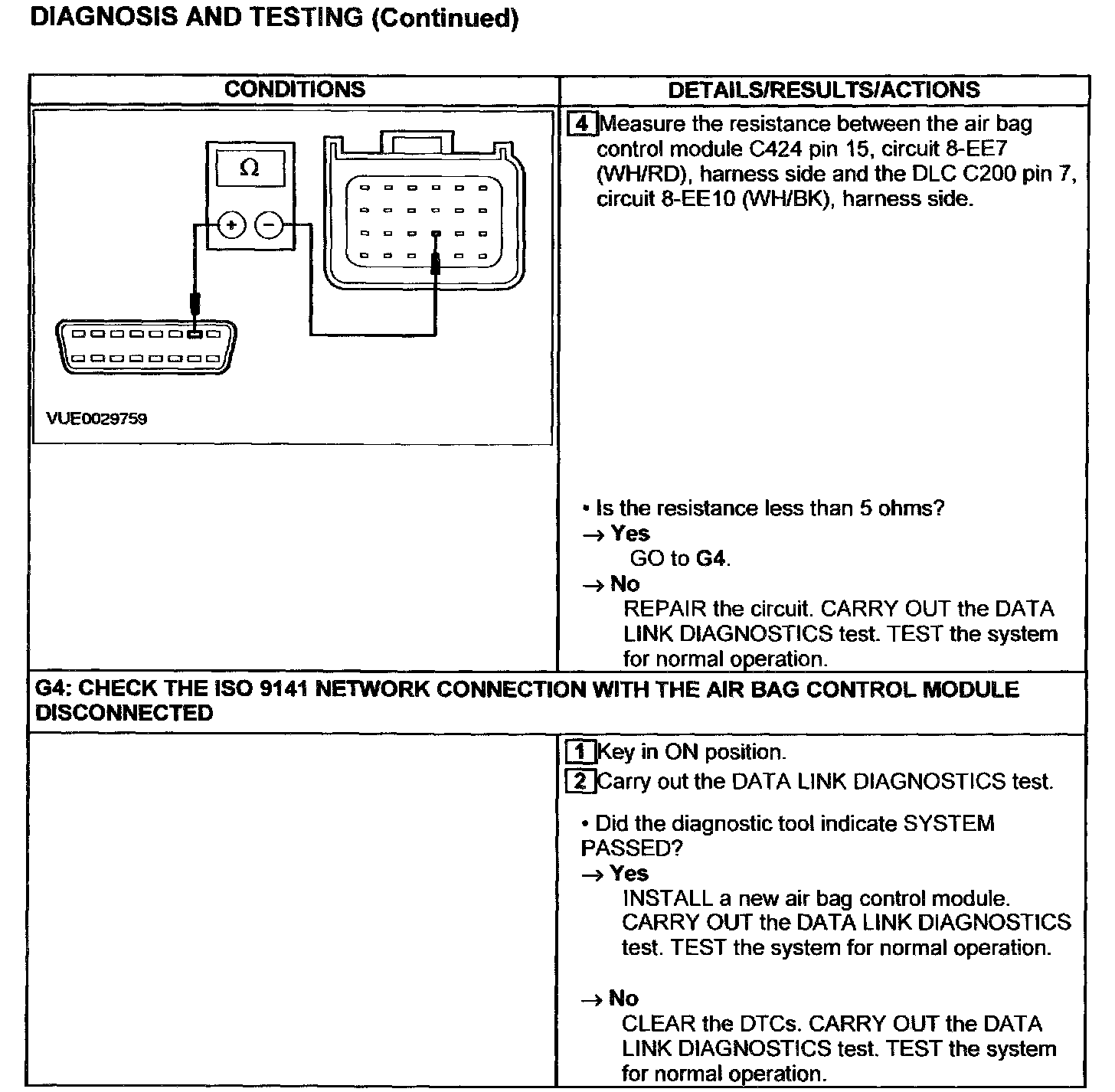

G3 - G4:
