Automatic Transmission/Transaxle

Disassembled Views








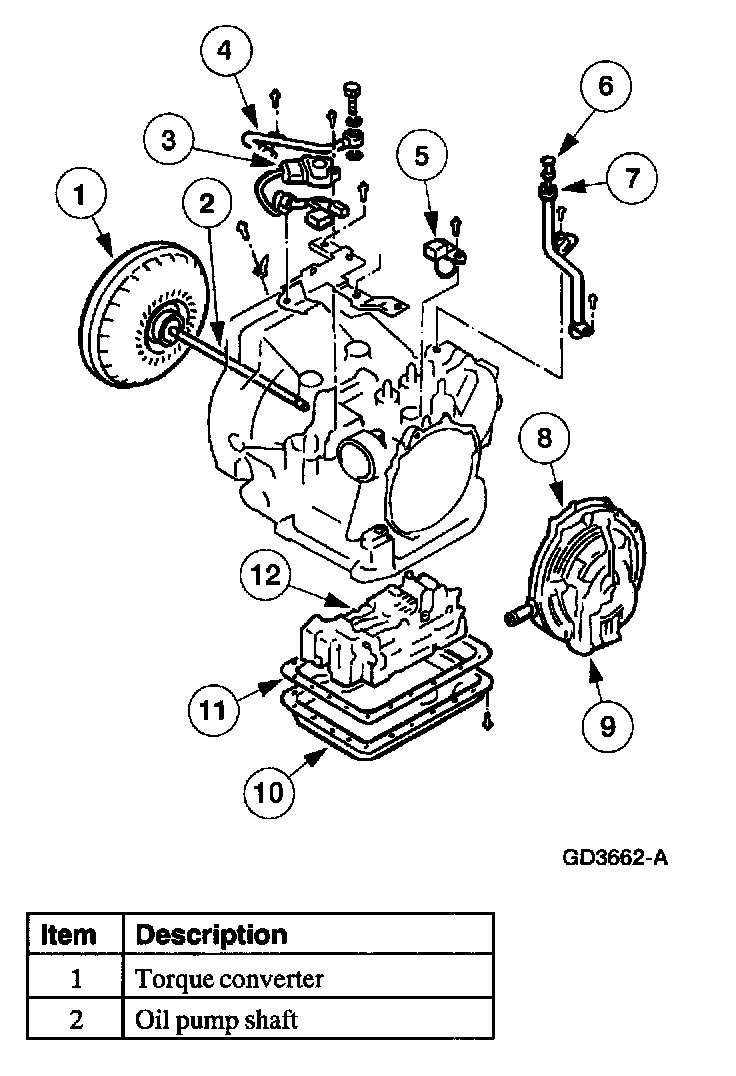

External Components

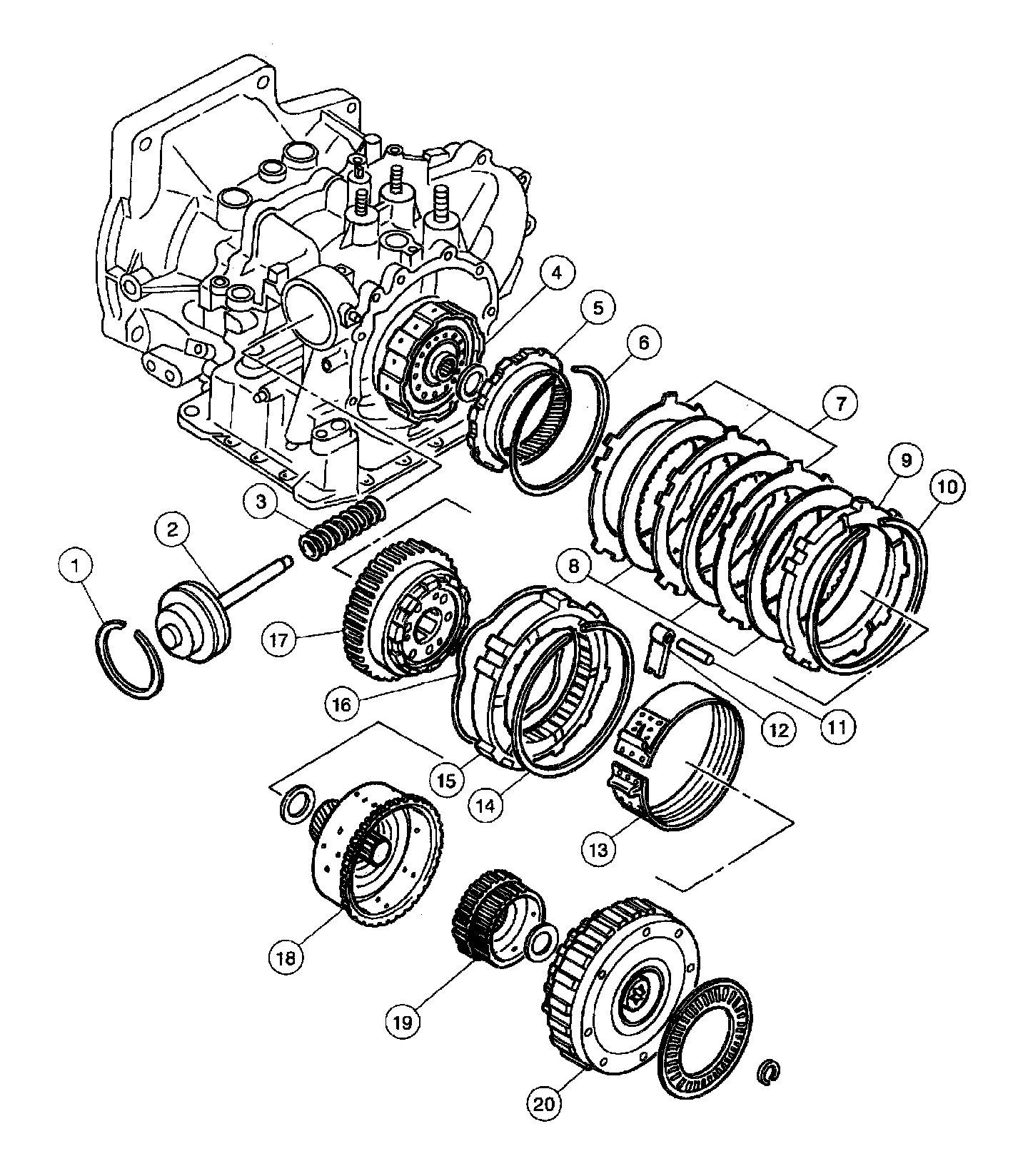

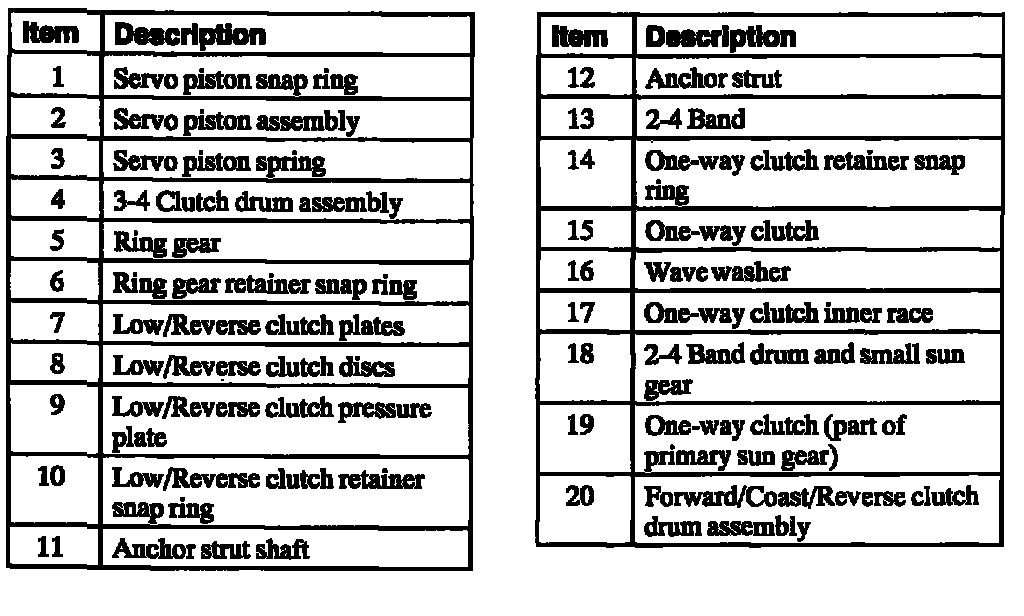

Internal Components

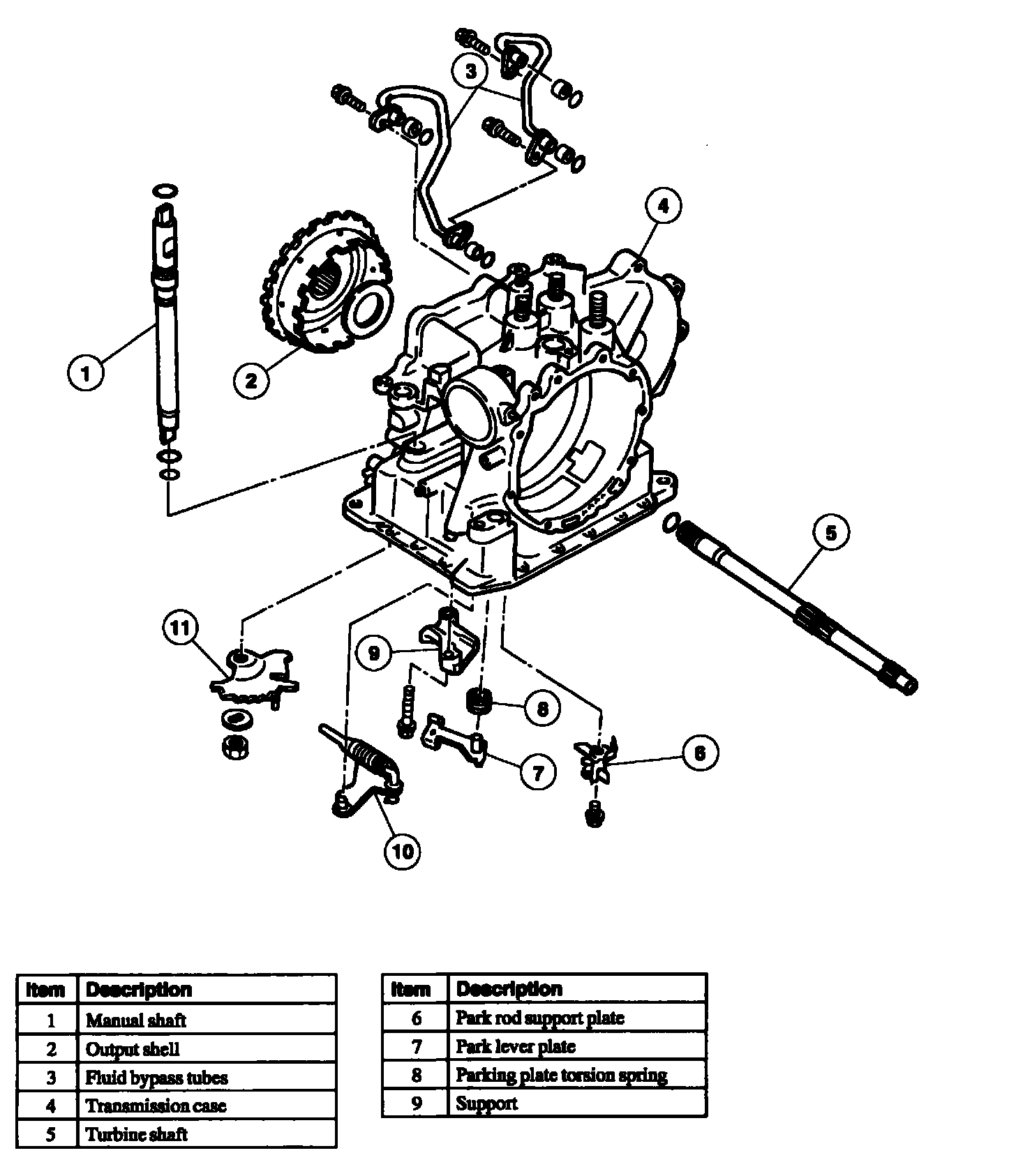

Apply Components

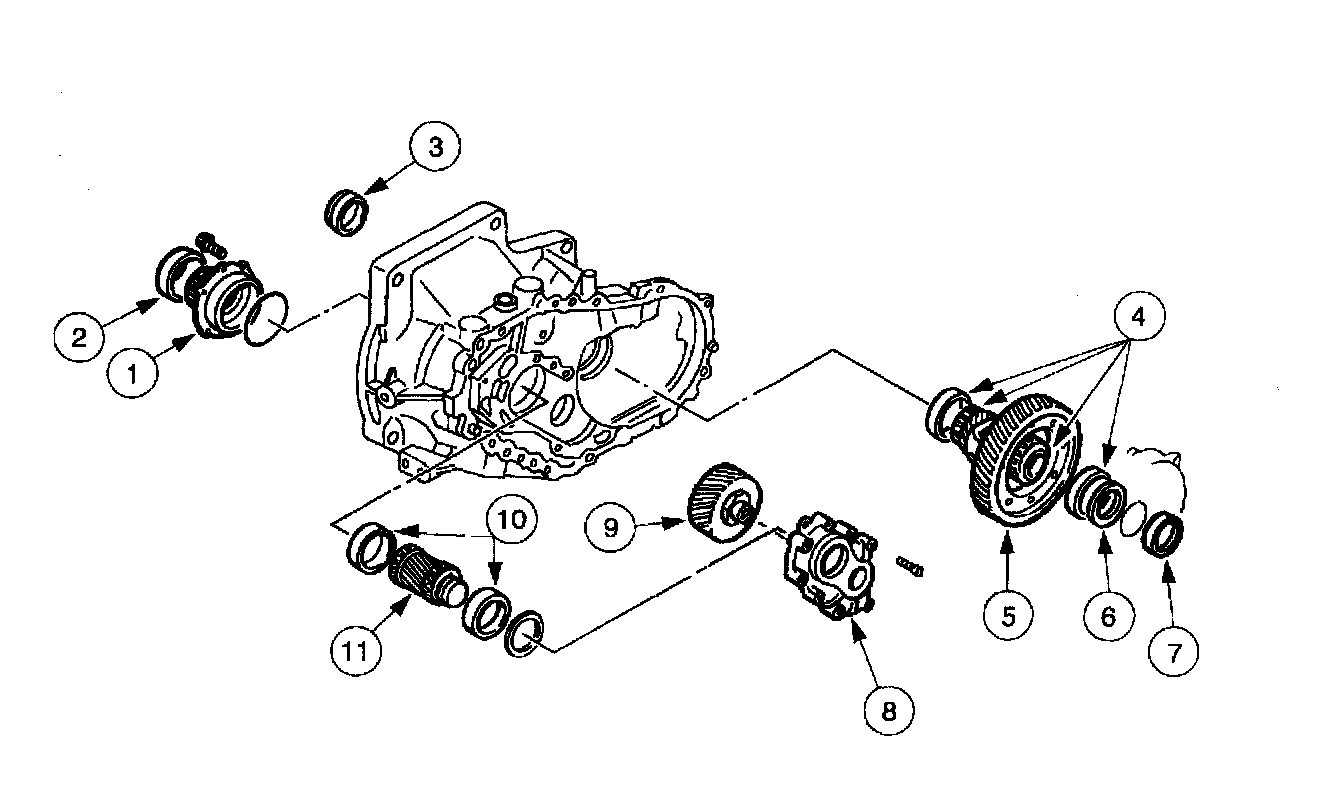

Differential, Exploded View

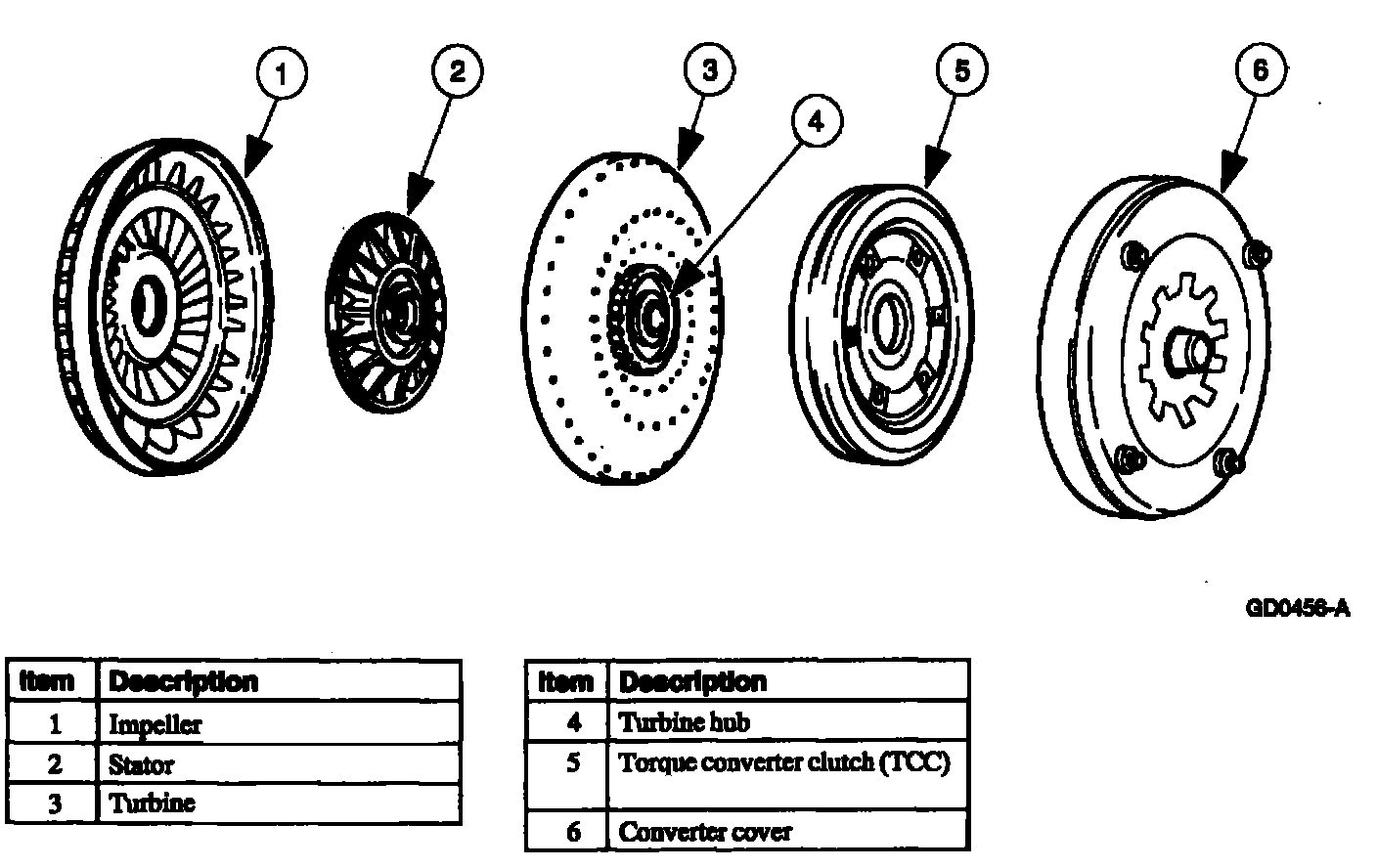

Torque Converter Exploded View
