Reference Value PID/Measured Signal Chart

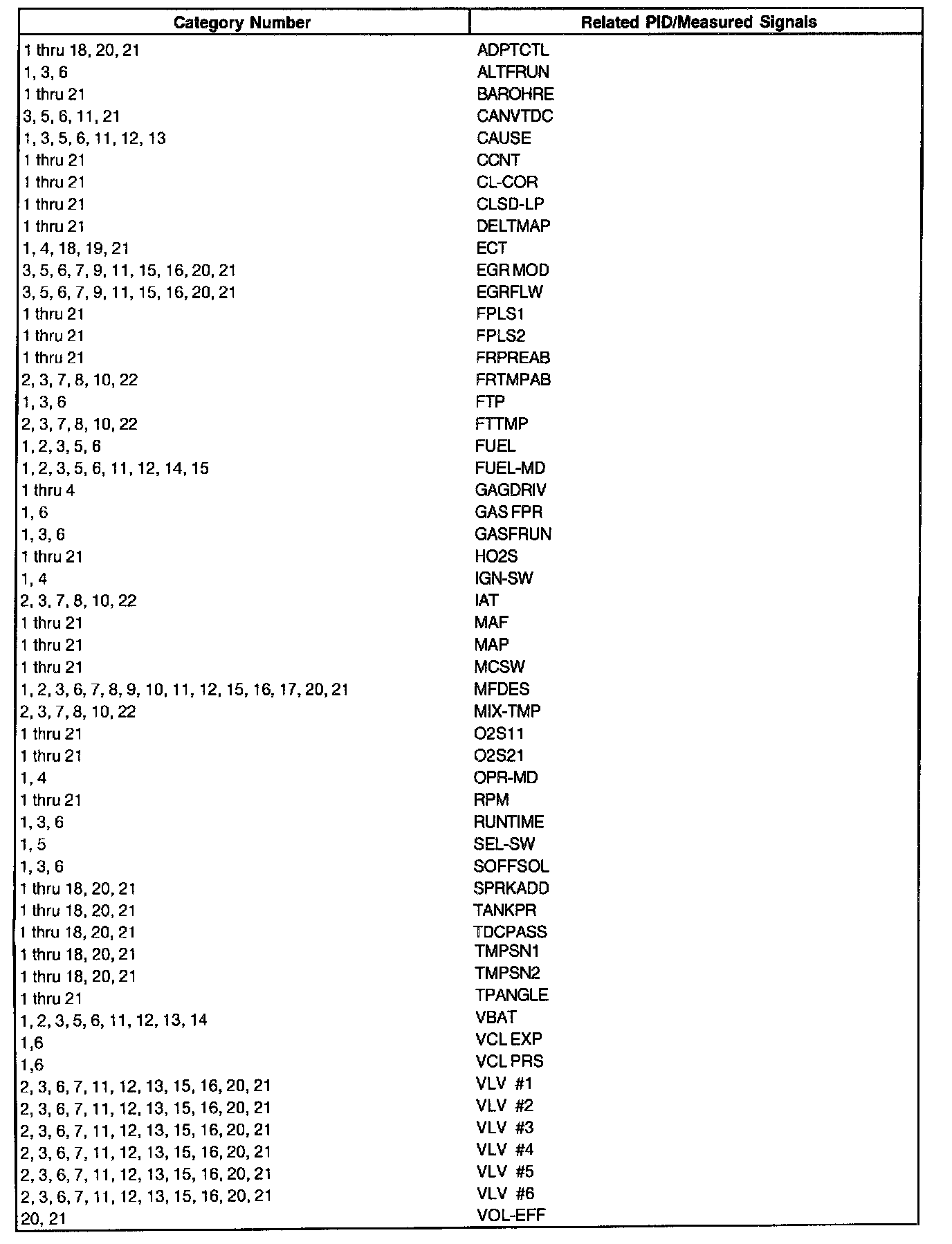

PID/Measured Signal Chart:

The listing reflects PID and/or measured values which may reveal a possible concern within each system area. Match the category number with the related PID/measured signal and proceed to the Typical Diagnostic Reference Value Charts. Typical Diagnostic Reference Values
