Home >> Ford >> 2000 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Pinpoint Tests >> Test C: Doors Do Not Lock/Unlock Using the Remote Transmitter

Test C: Doors Do Not Lock/Unlock Using the Remote Transmitter

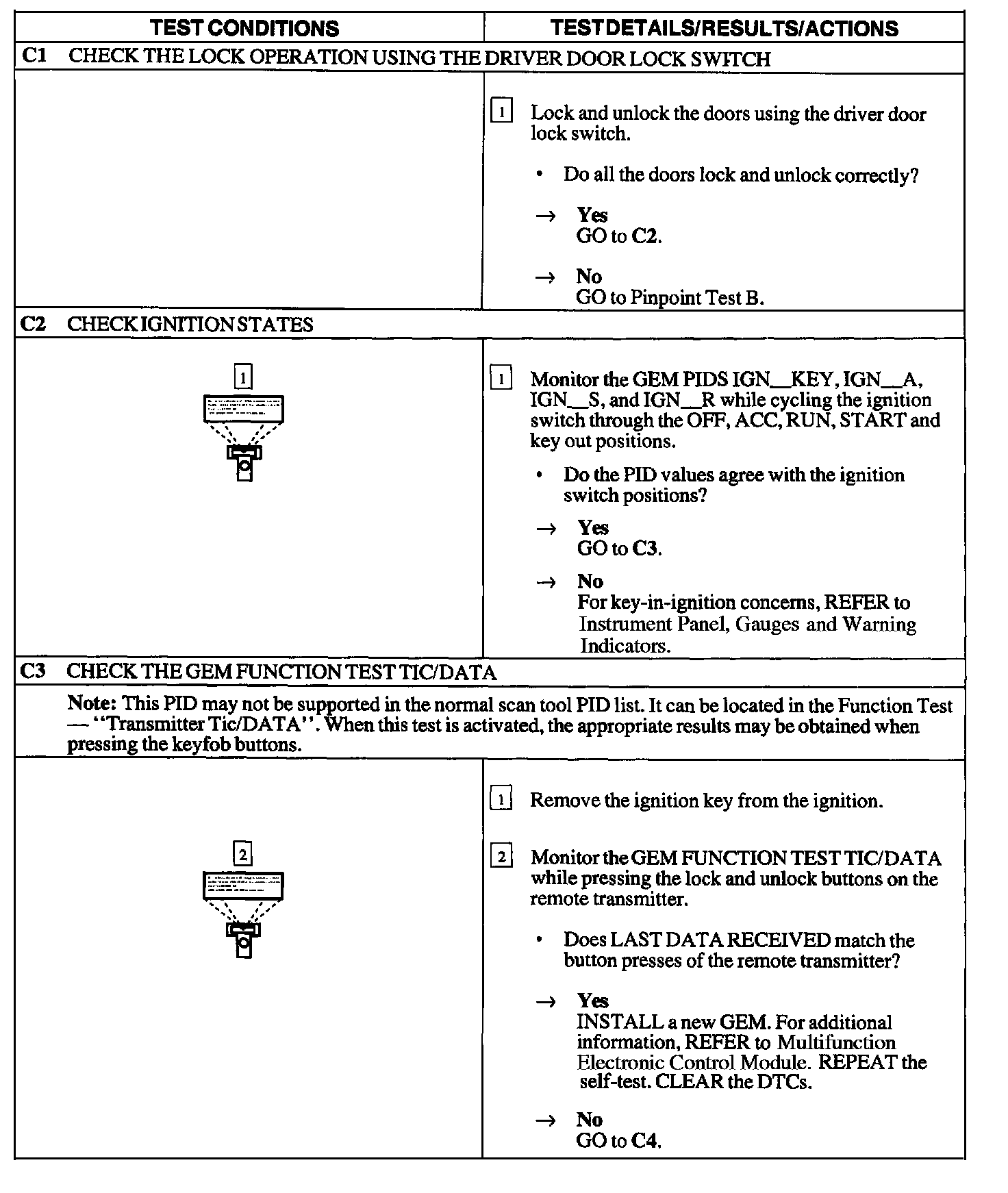

C1 - C3:






C4:

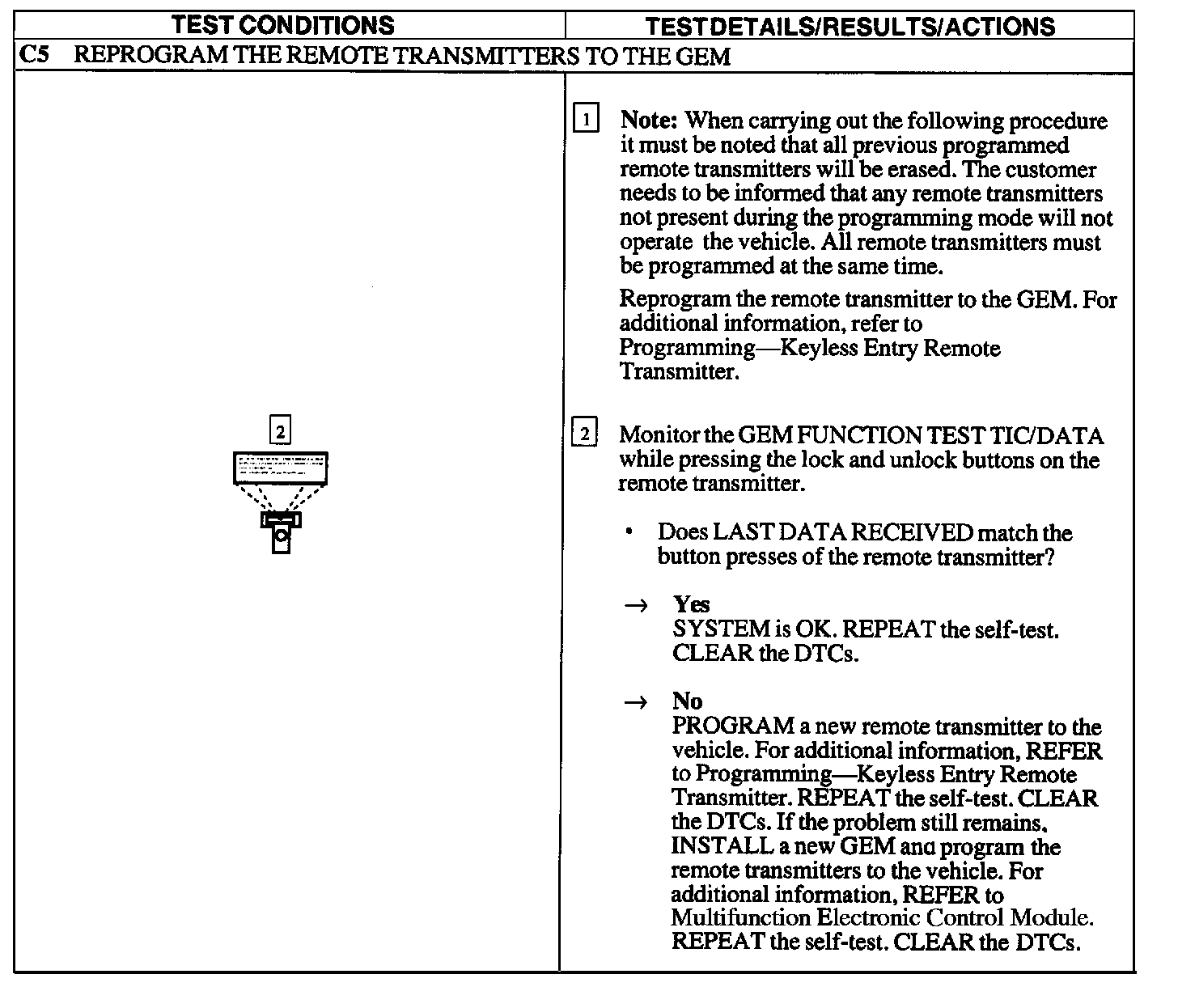

C5:
