Test G: Incorrect Key Code (Unprogrammed Key)
Test G: Incorrect Key Code (Unprogrammed Key)

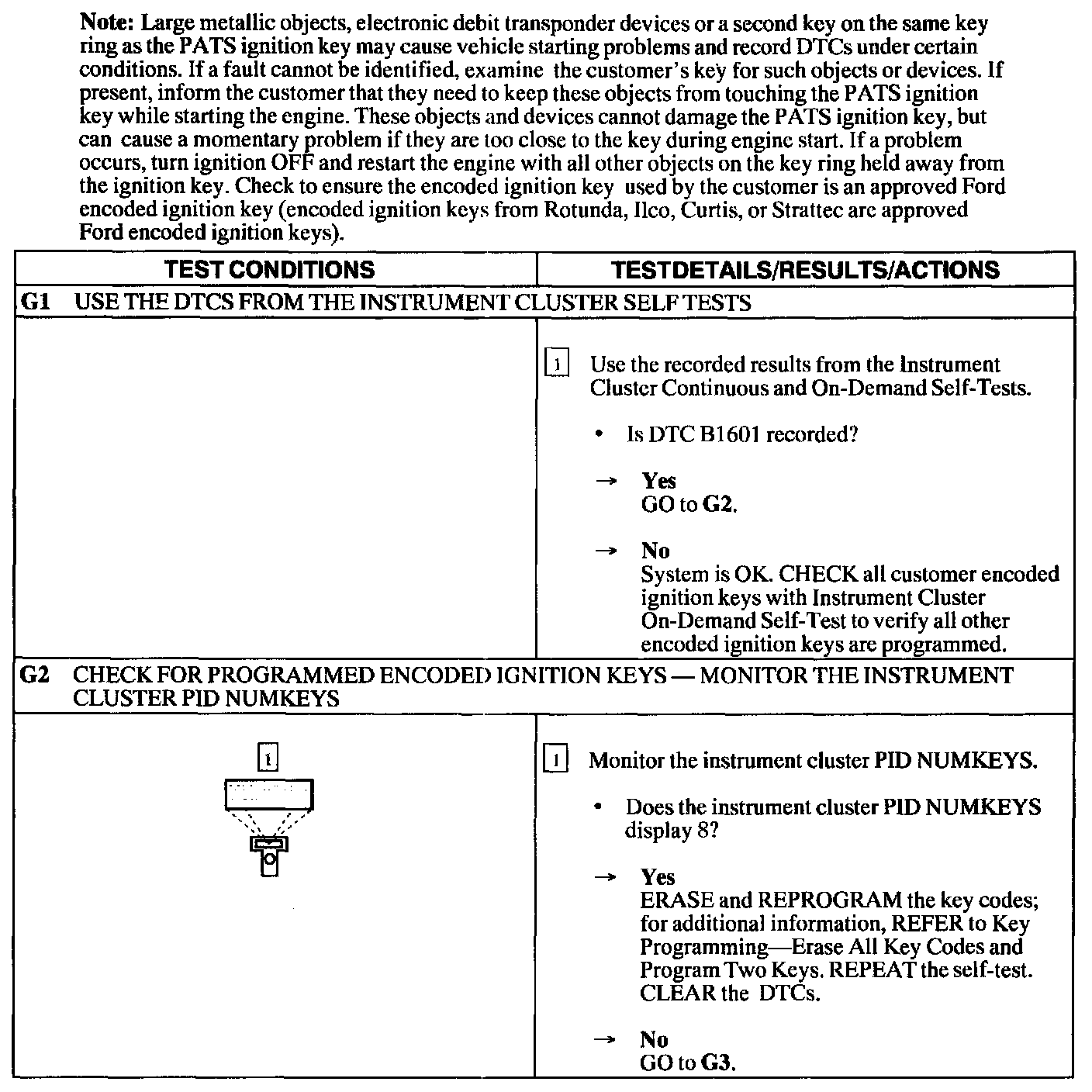

G1 - G2:

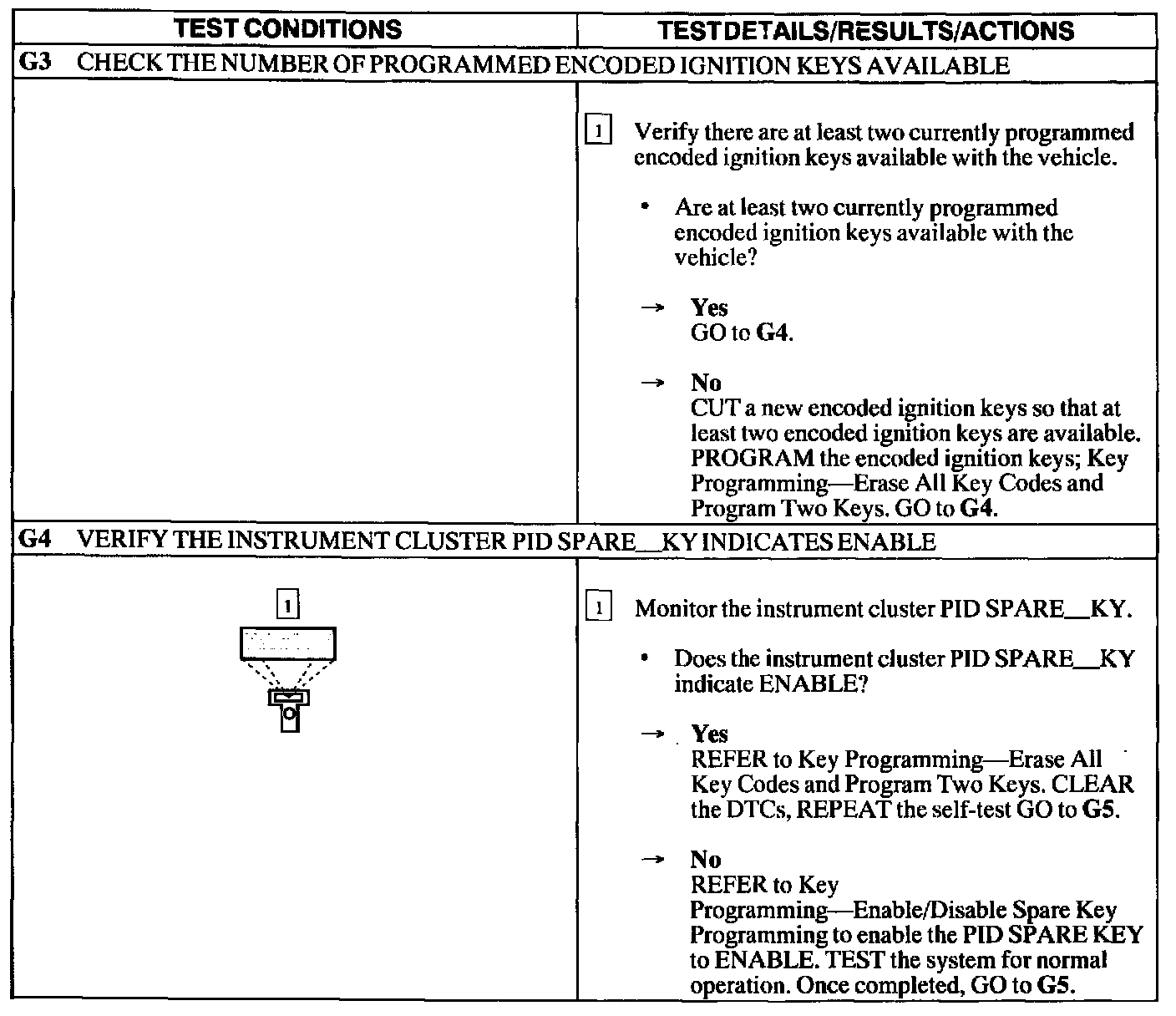

G3 - G4:

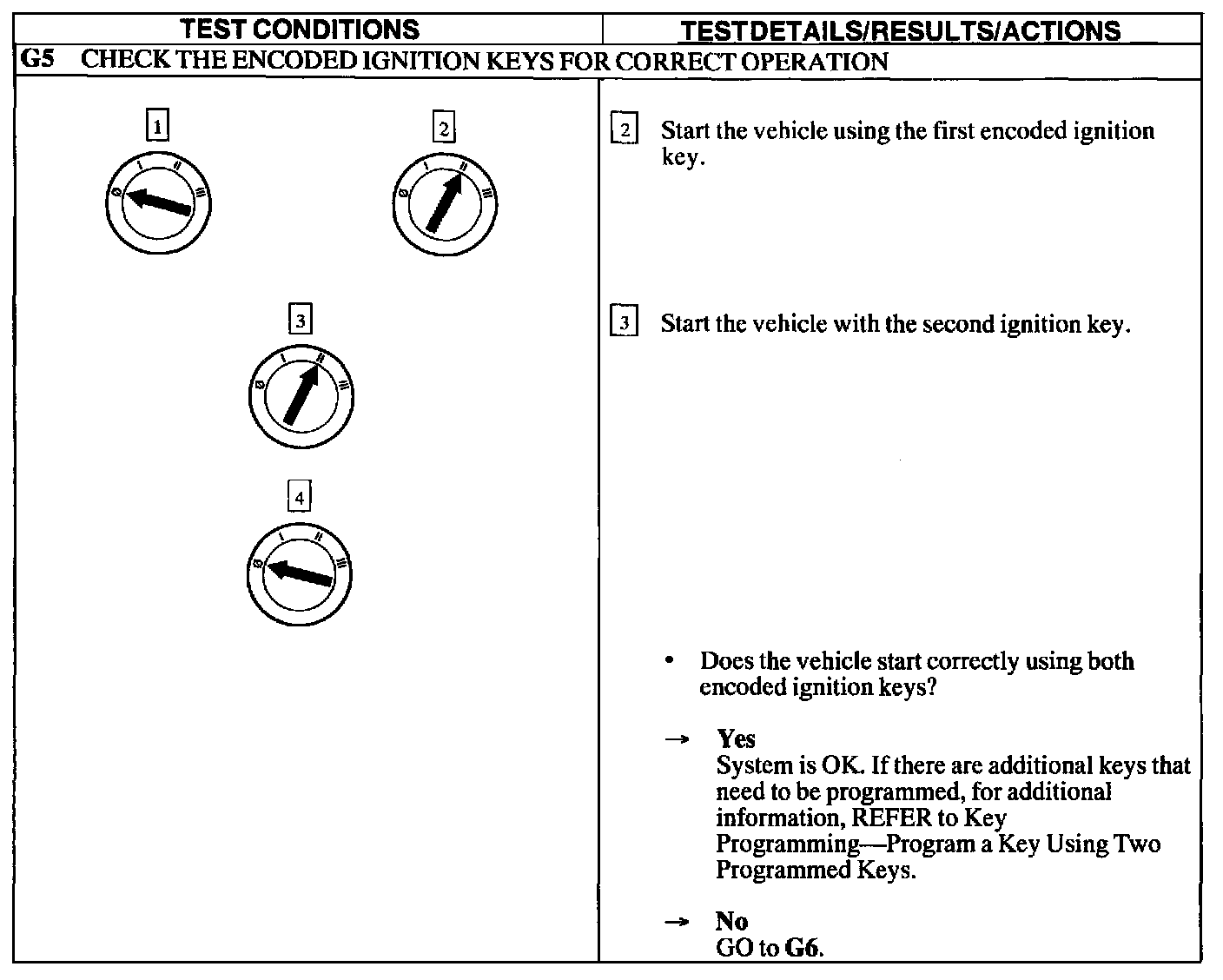

G5:

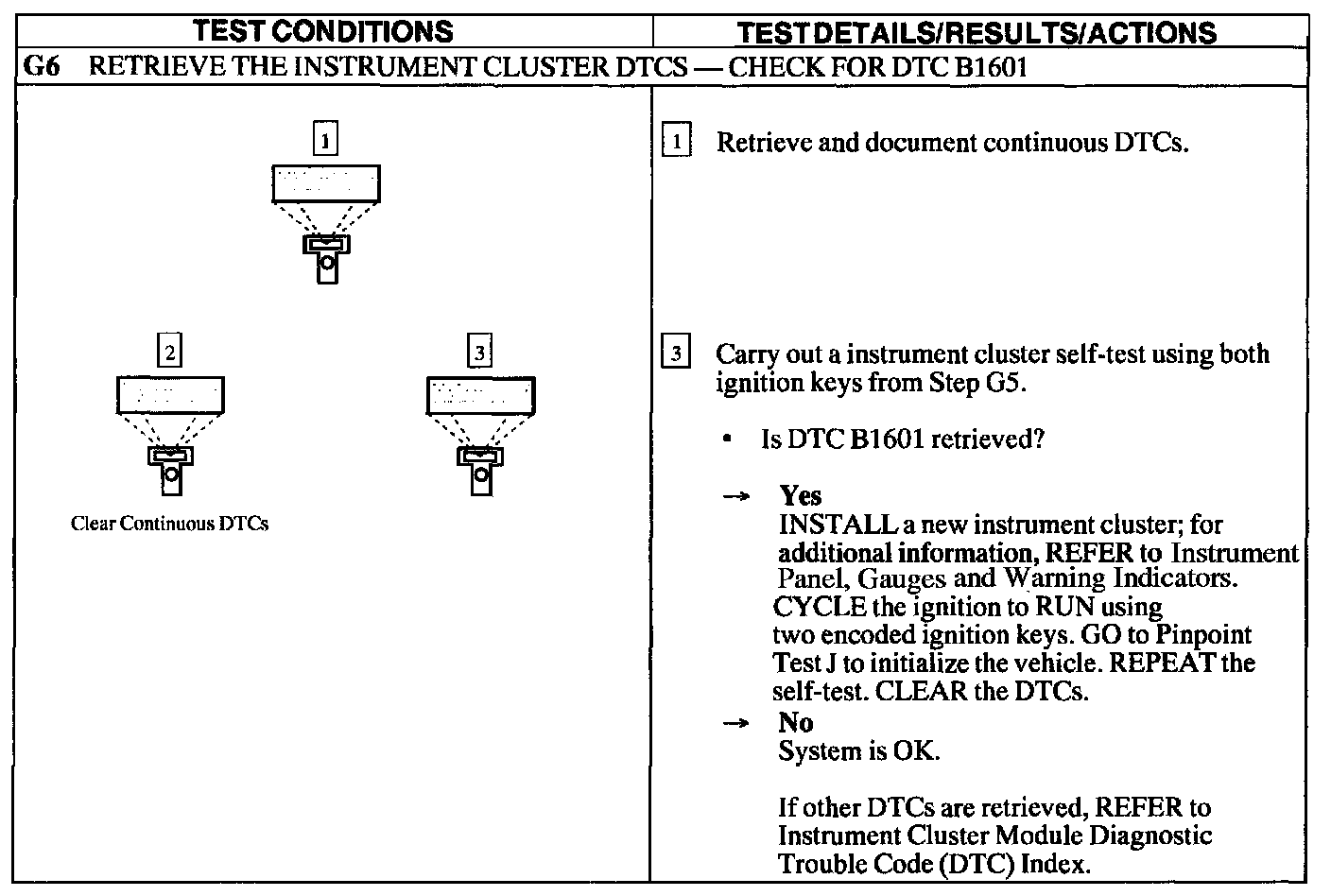

G6:
G: System Operates Incorrectly-Incorrect Key Code (Unprogrammed Key)
