Home >> Ford >> 2000 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Pinpoint Tests >> Test E: Door Locks Inoperative Using Driv/Pass Lock Control Switch

Test E: Door Locks Inoperative Using Driv/Pass Lock Control Switch

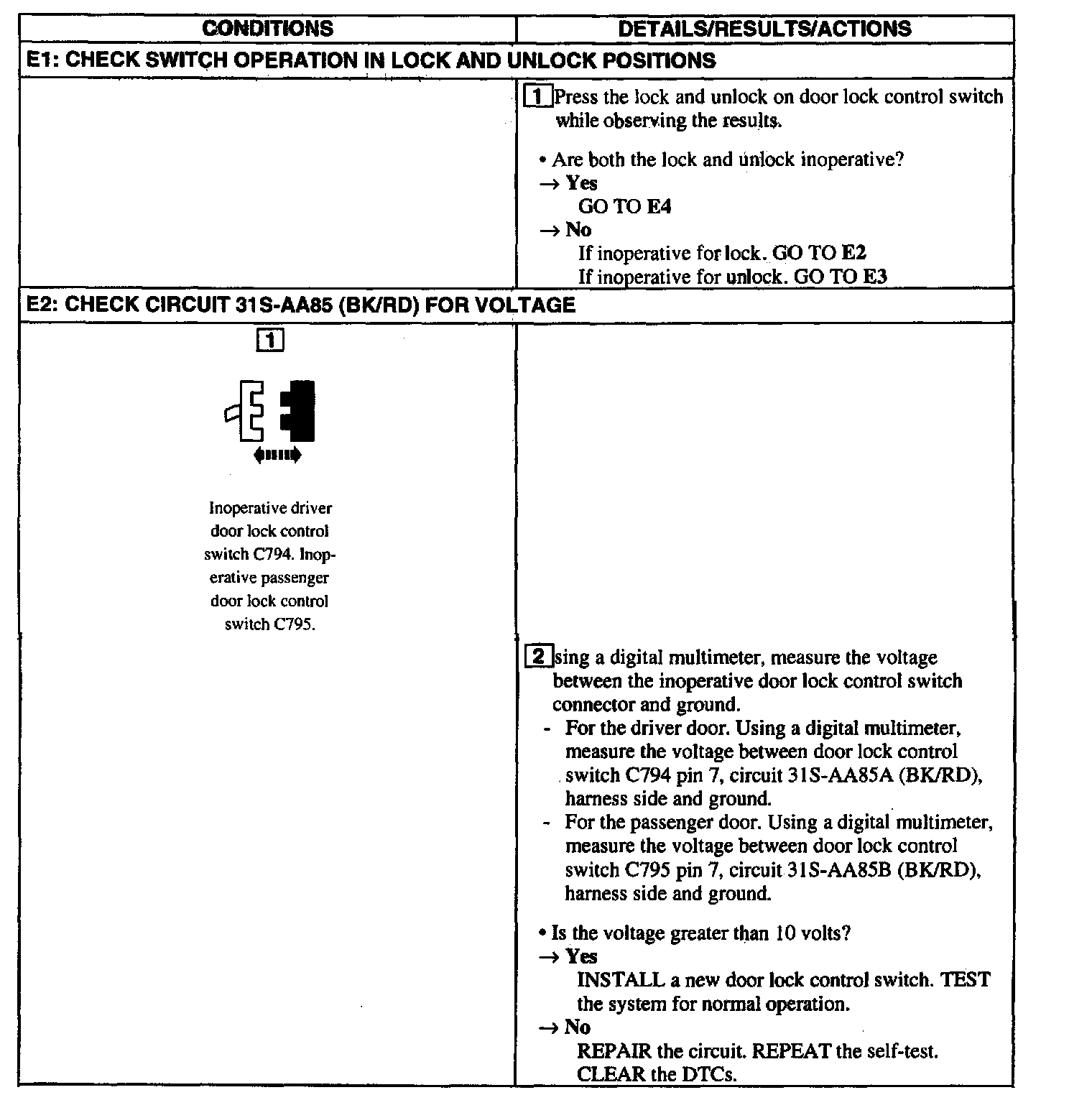

E1 - E2:

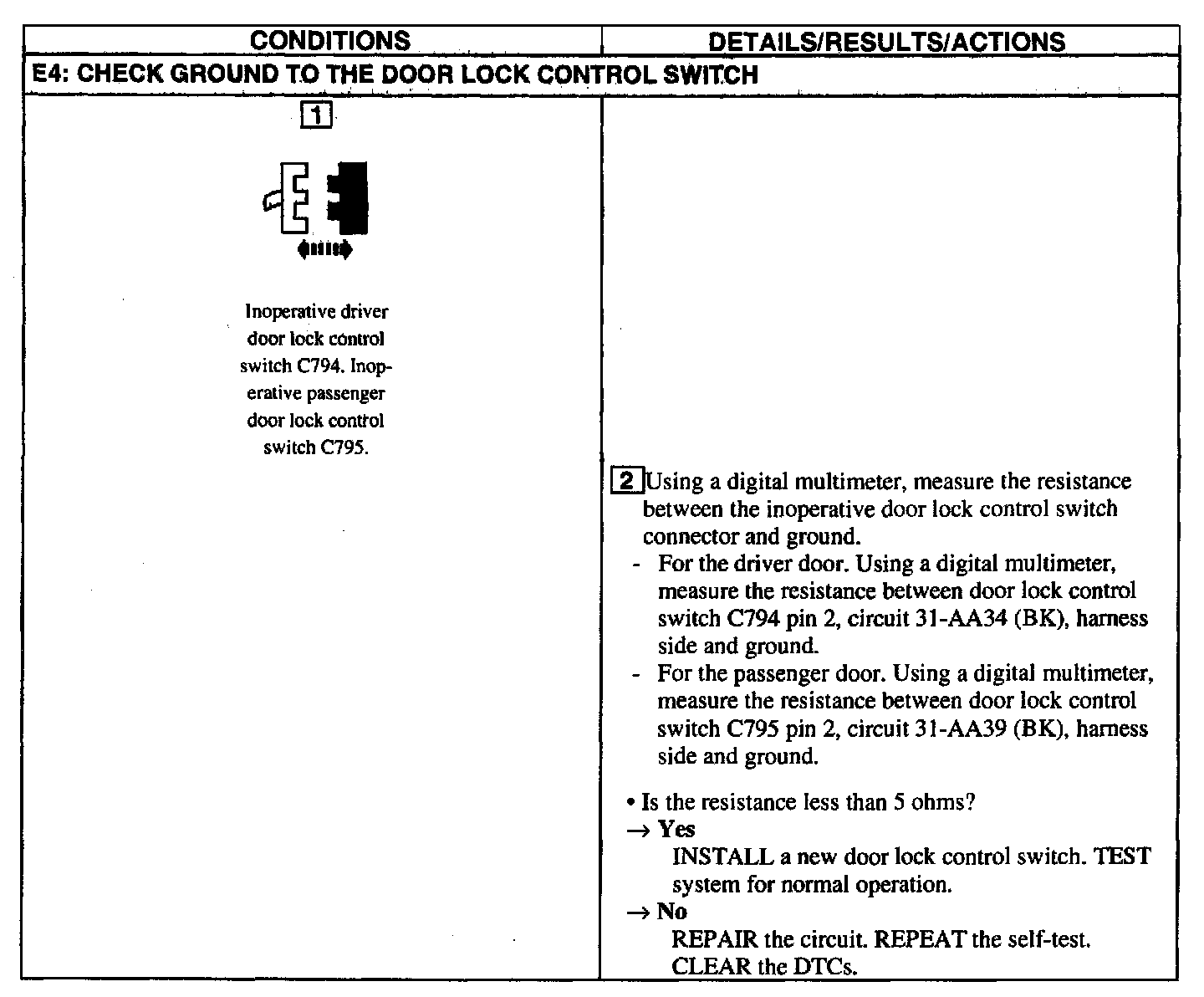

E4:
