Test A: No Communication With the Lighting Control Module
Test A: No Communication With the Lighting Control Module

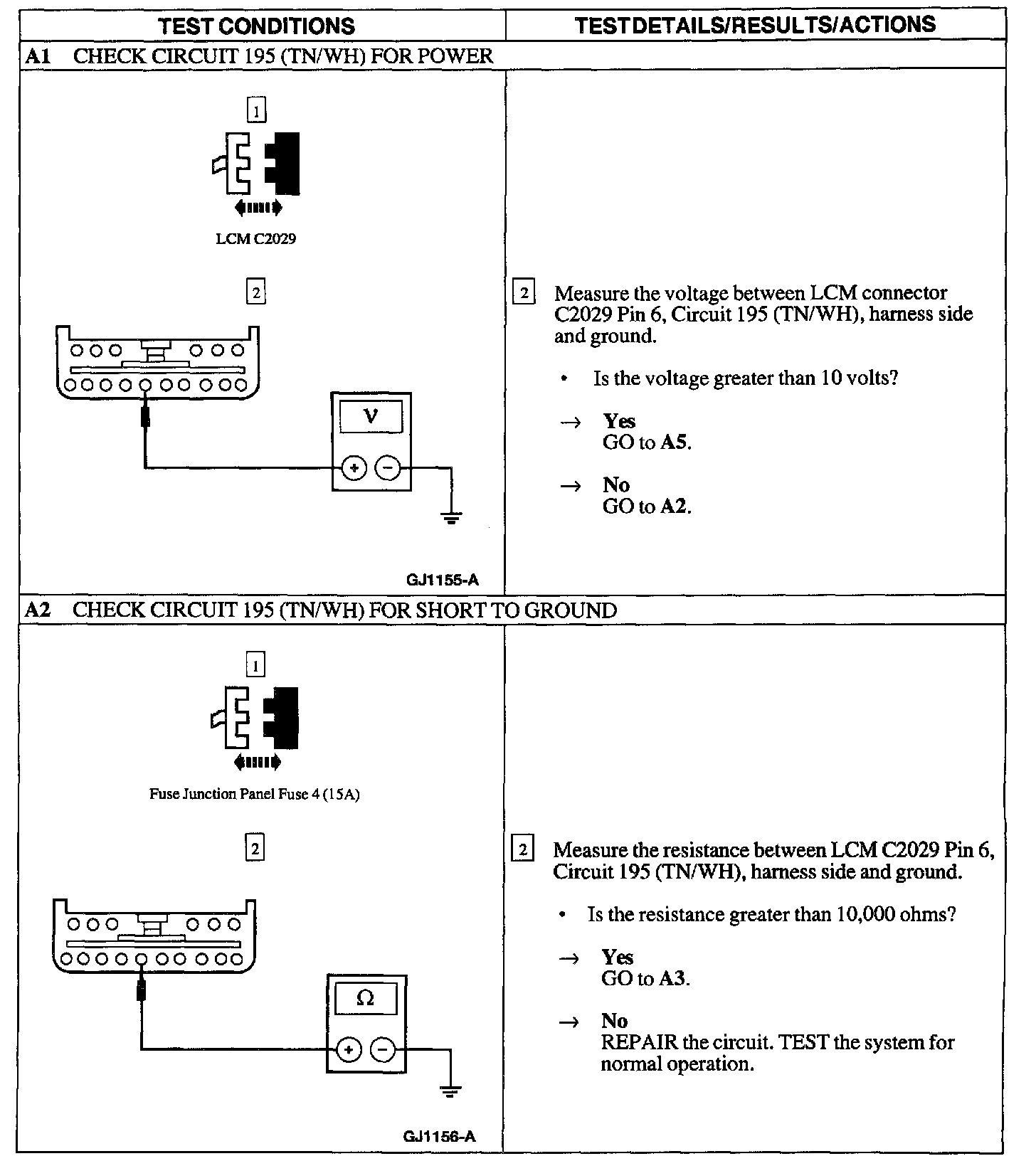

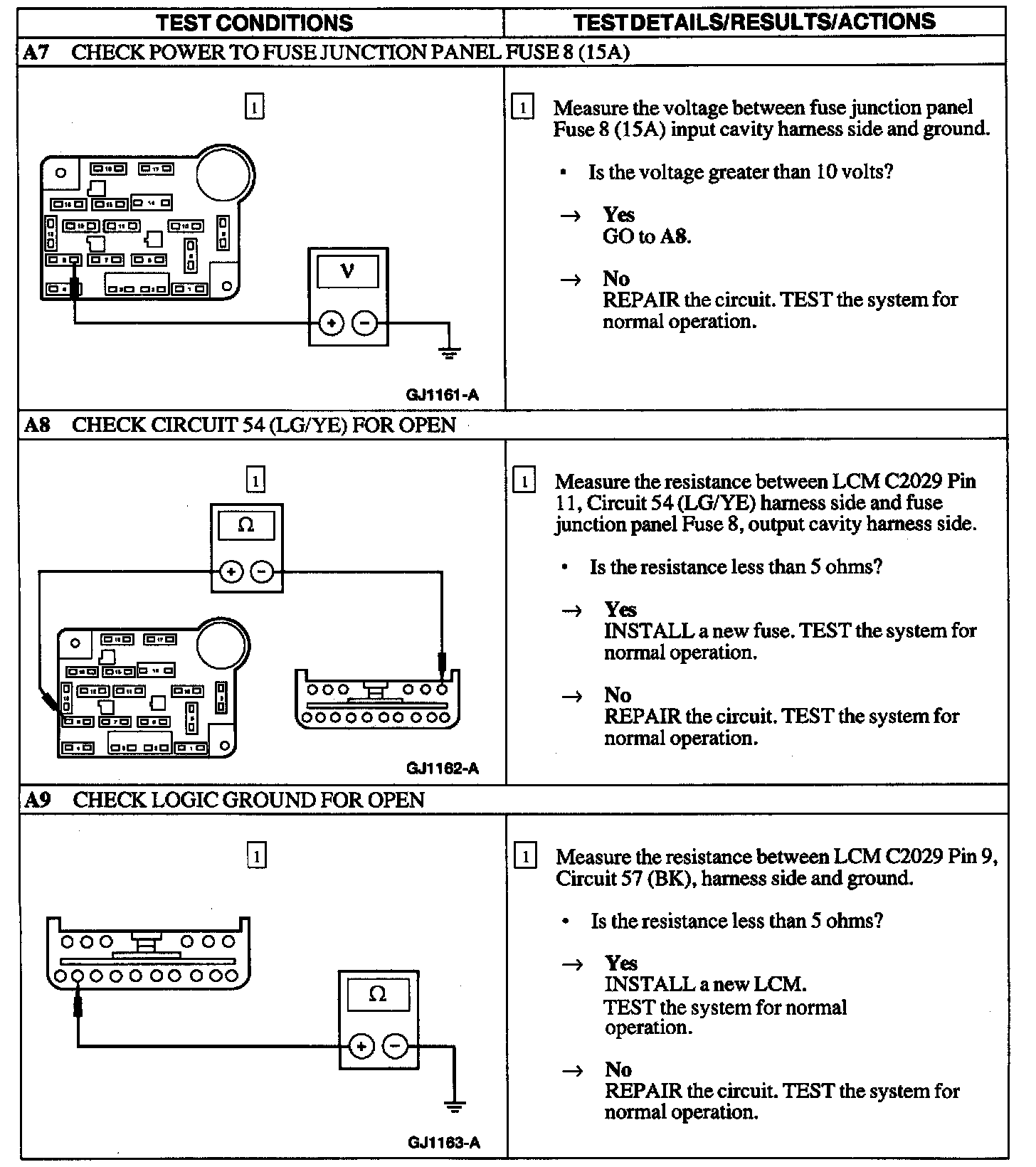

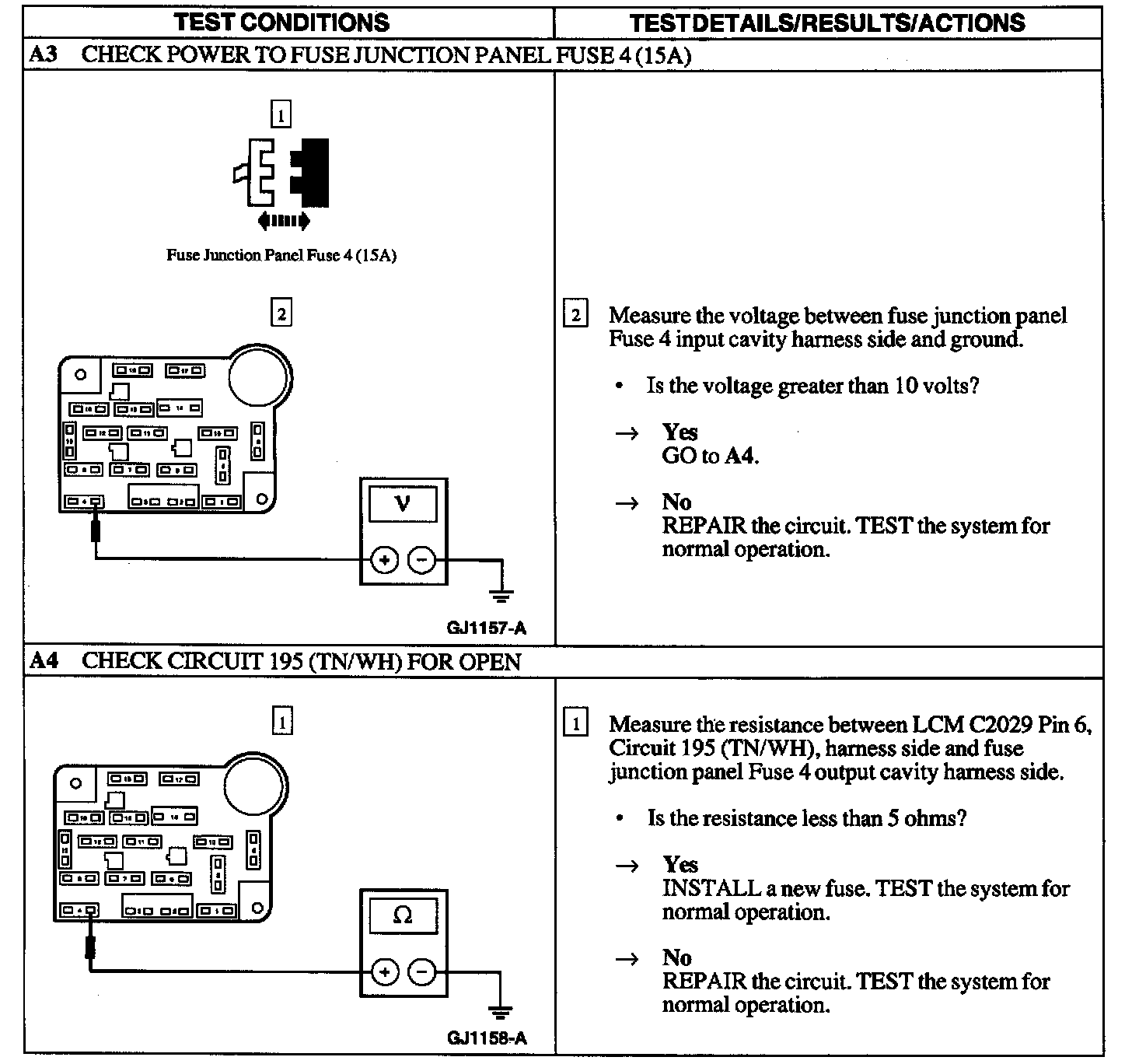

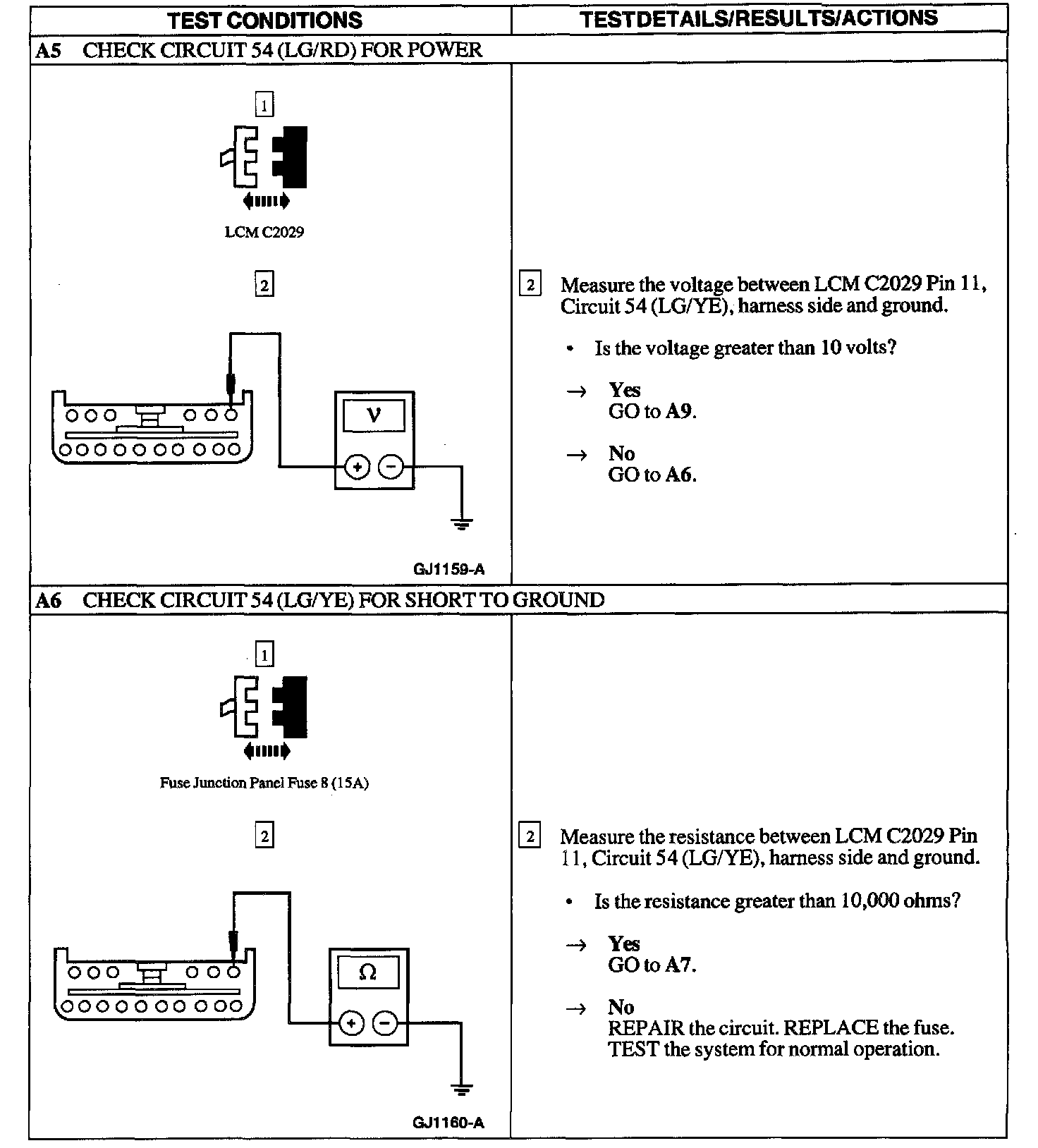

Pinpoint Test A: NO COMMUNICATION WITH THE LIGHTING CONTROL MODULE (LCM)
