Home >> Ford >> 2000 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> ABS Control Module Parameter Identification (PID) Index

ABS Control Module Parameter Identification (PID) Index

1 Of 2:




2 Of 2:

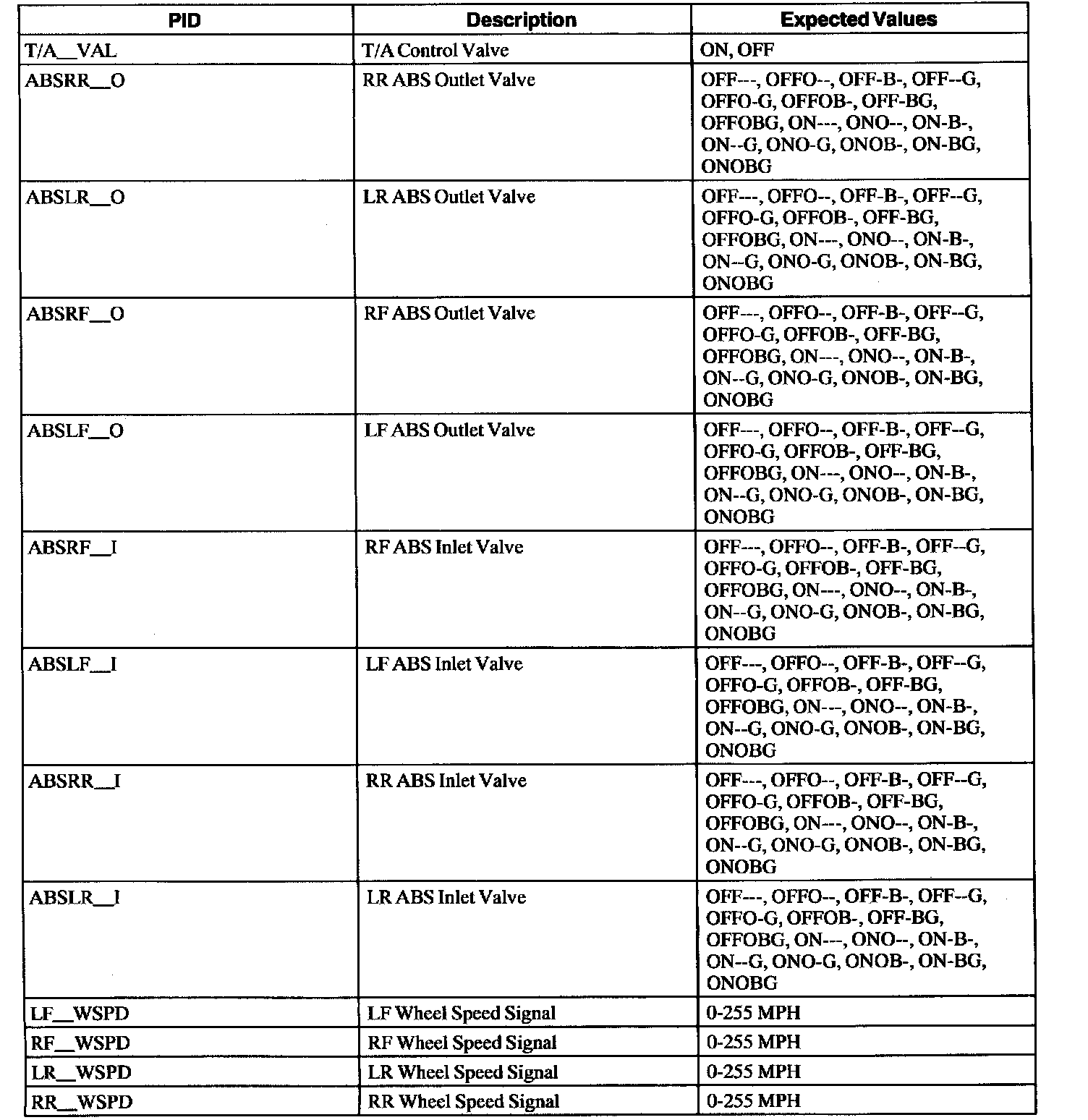

Anti-Lock Brake Control Module Parameter Identification (PID) Index
