Home >> Ford >> 1999 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Switch >> Testing and Inspection >> Pinpoint Tests >> Test A: No Communication With Generic Electronic Module

Test A: No Communication With Generic Electronic Module

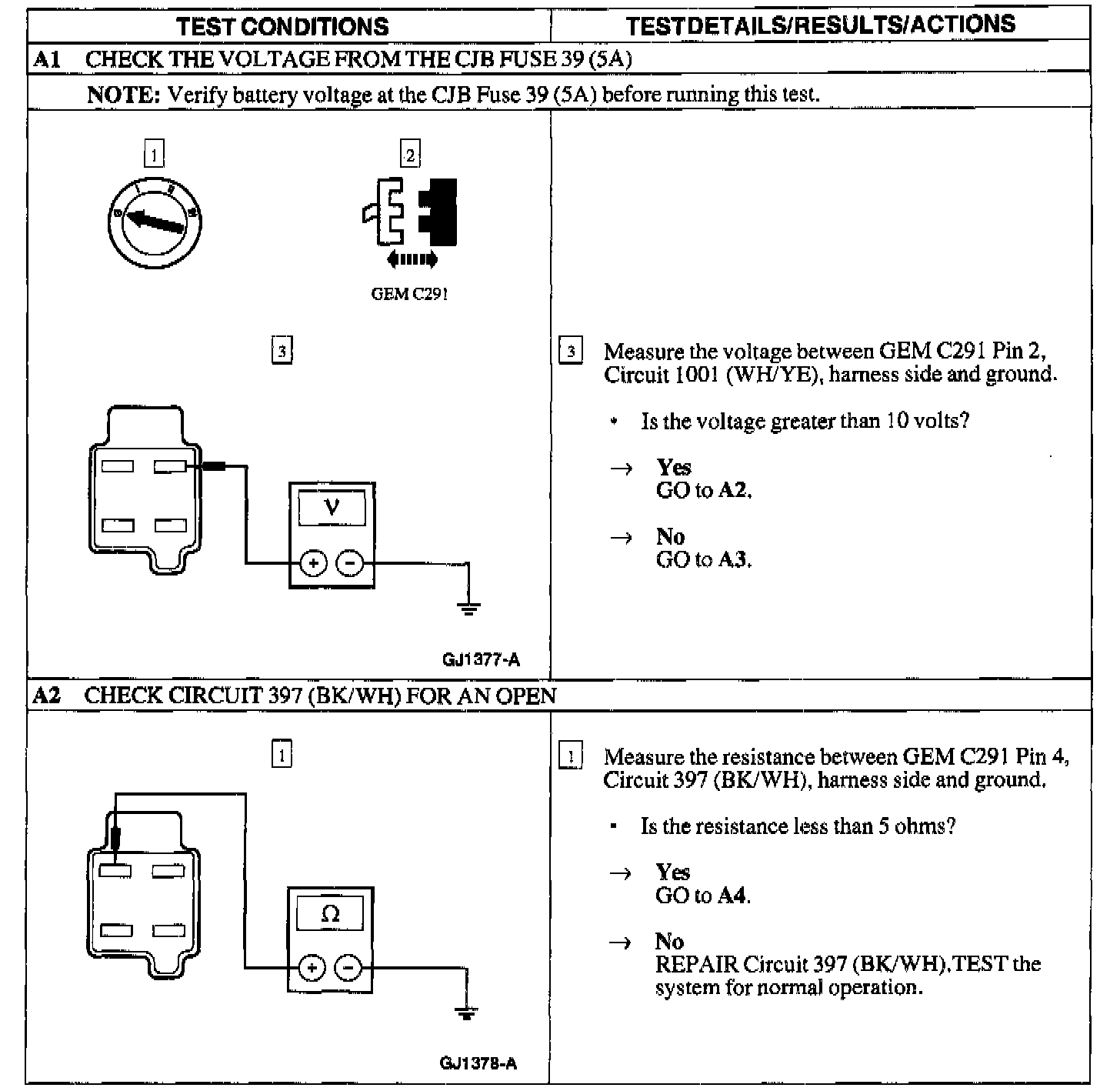

Test A1 - A2:

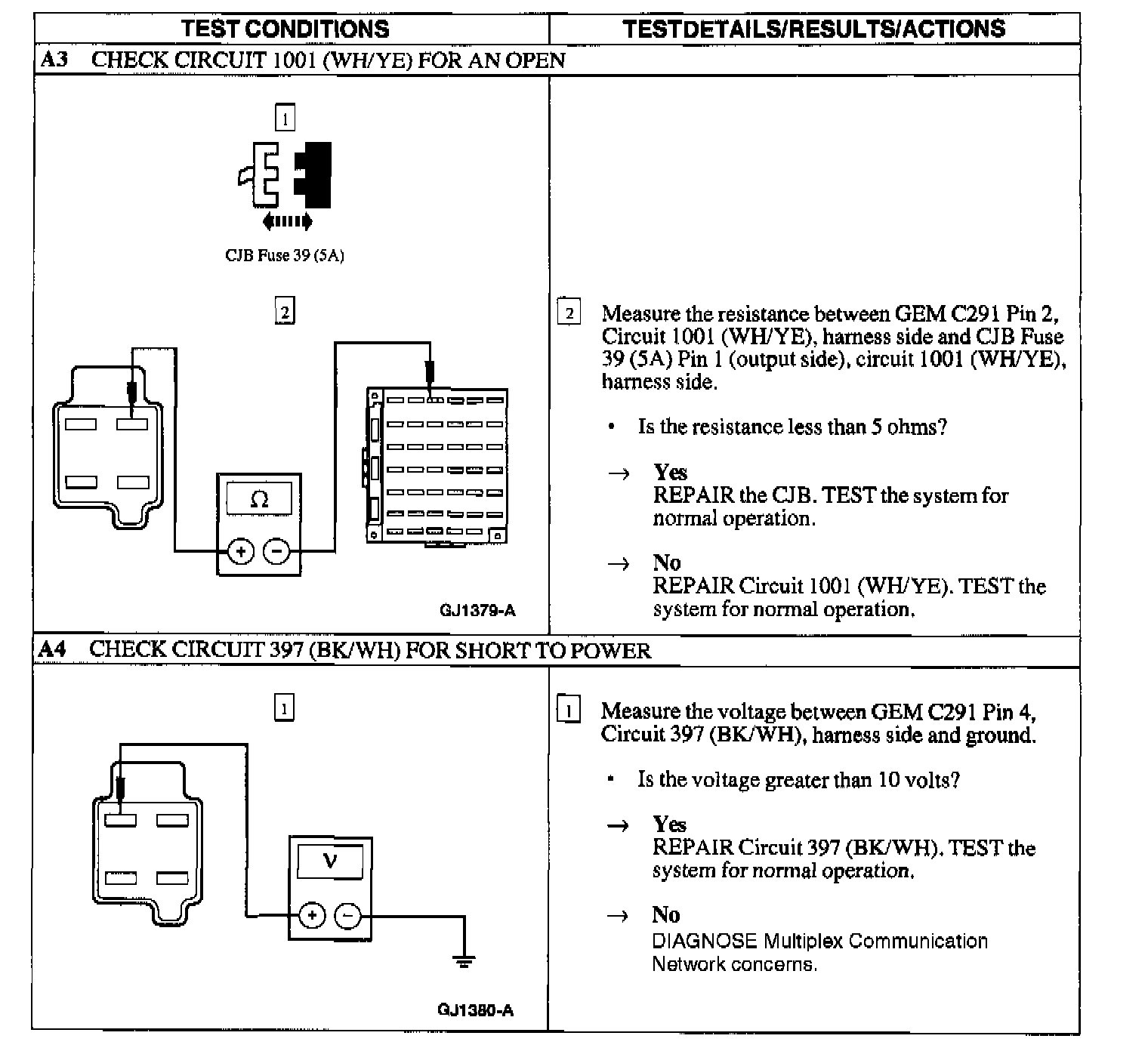

Test A3 - A4:
