Home >> Ford >> 1997 >> Probe V6-153 2.5L DOHC VIN B MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

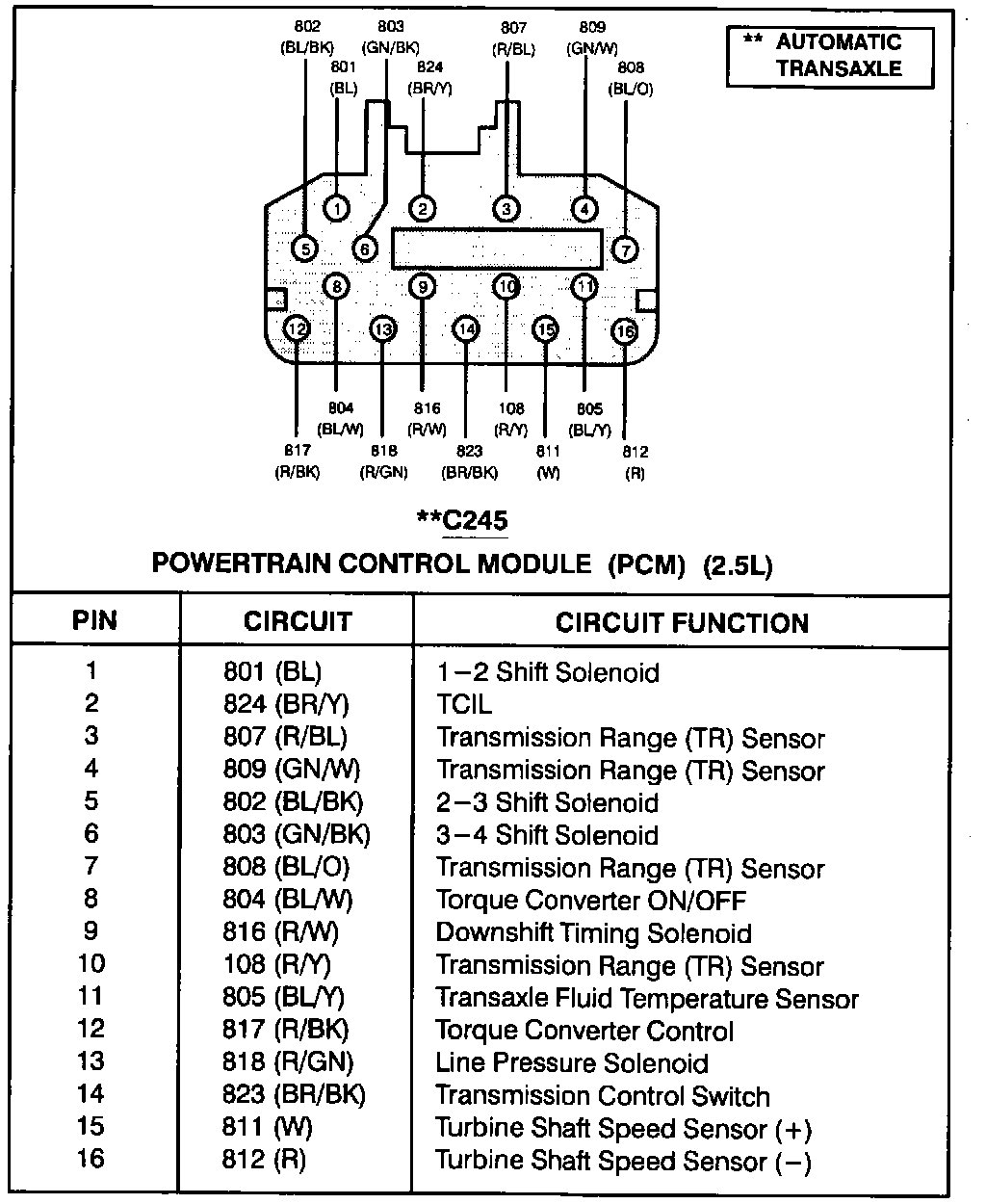

Powertrain Control Module (C245):

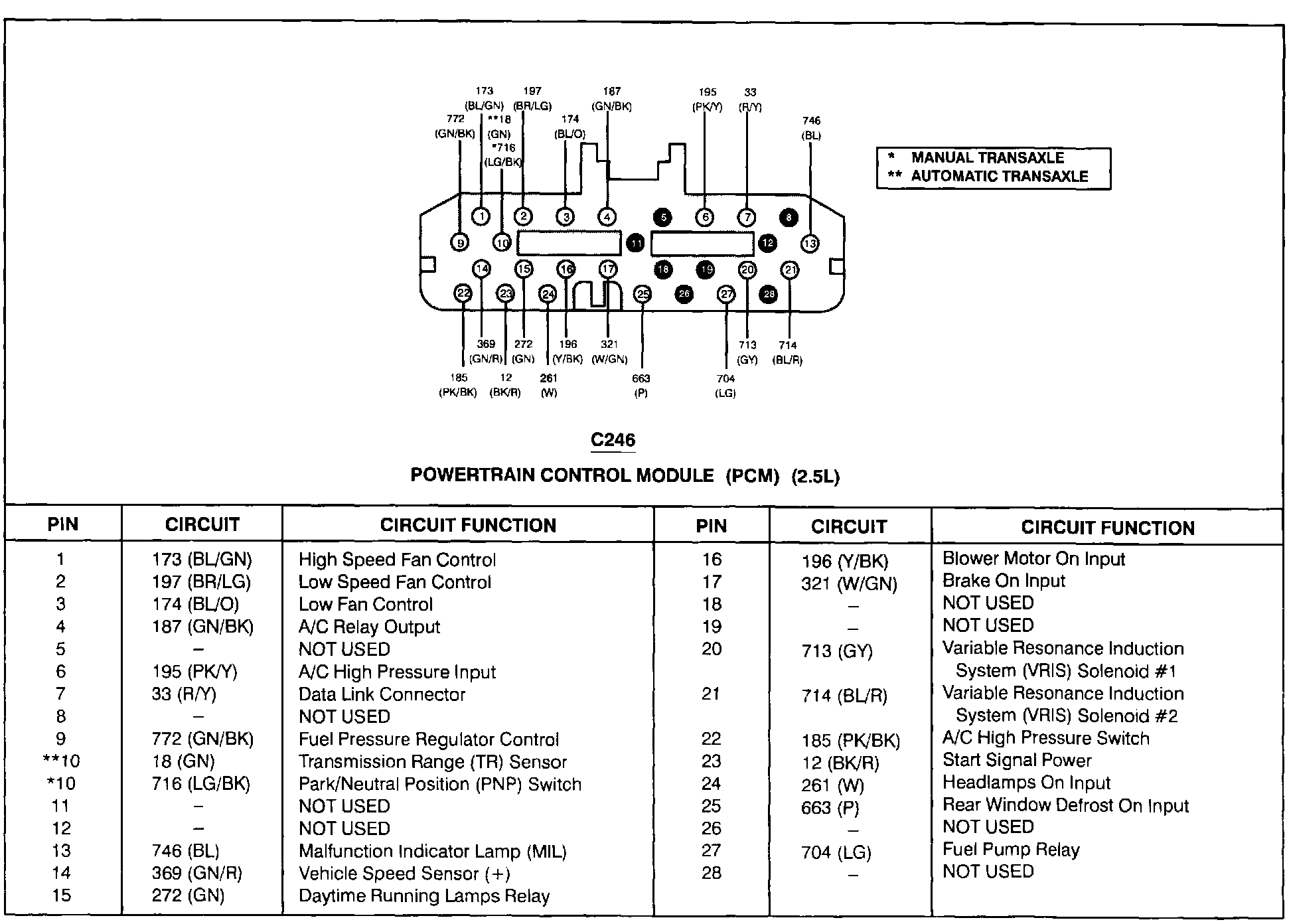

Powertrain Control Module (C246):

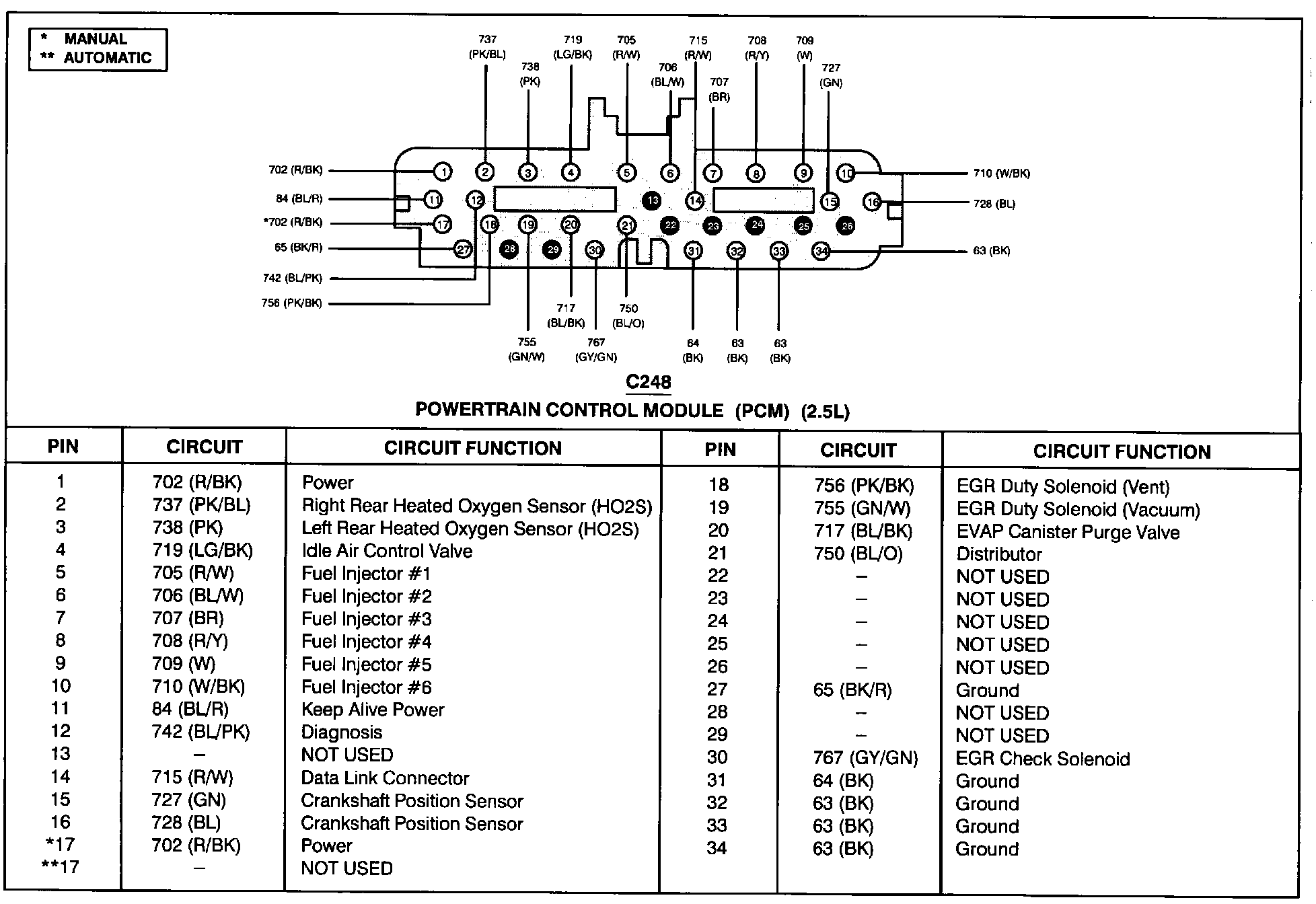

Powertrain Control Module (C248):

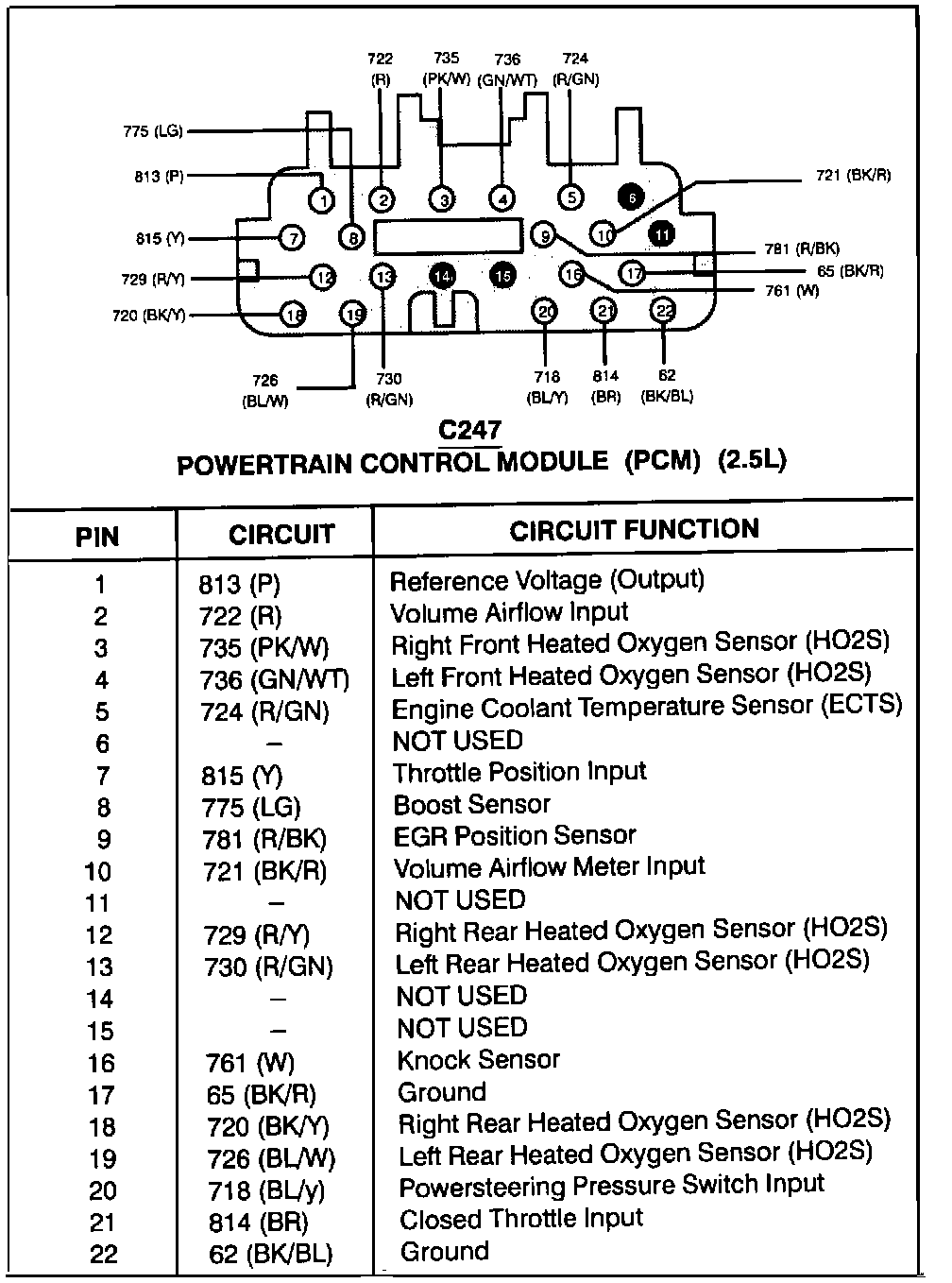

Powertrain Control Module (C247):
