Ignition Control Module: Locations

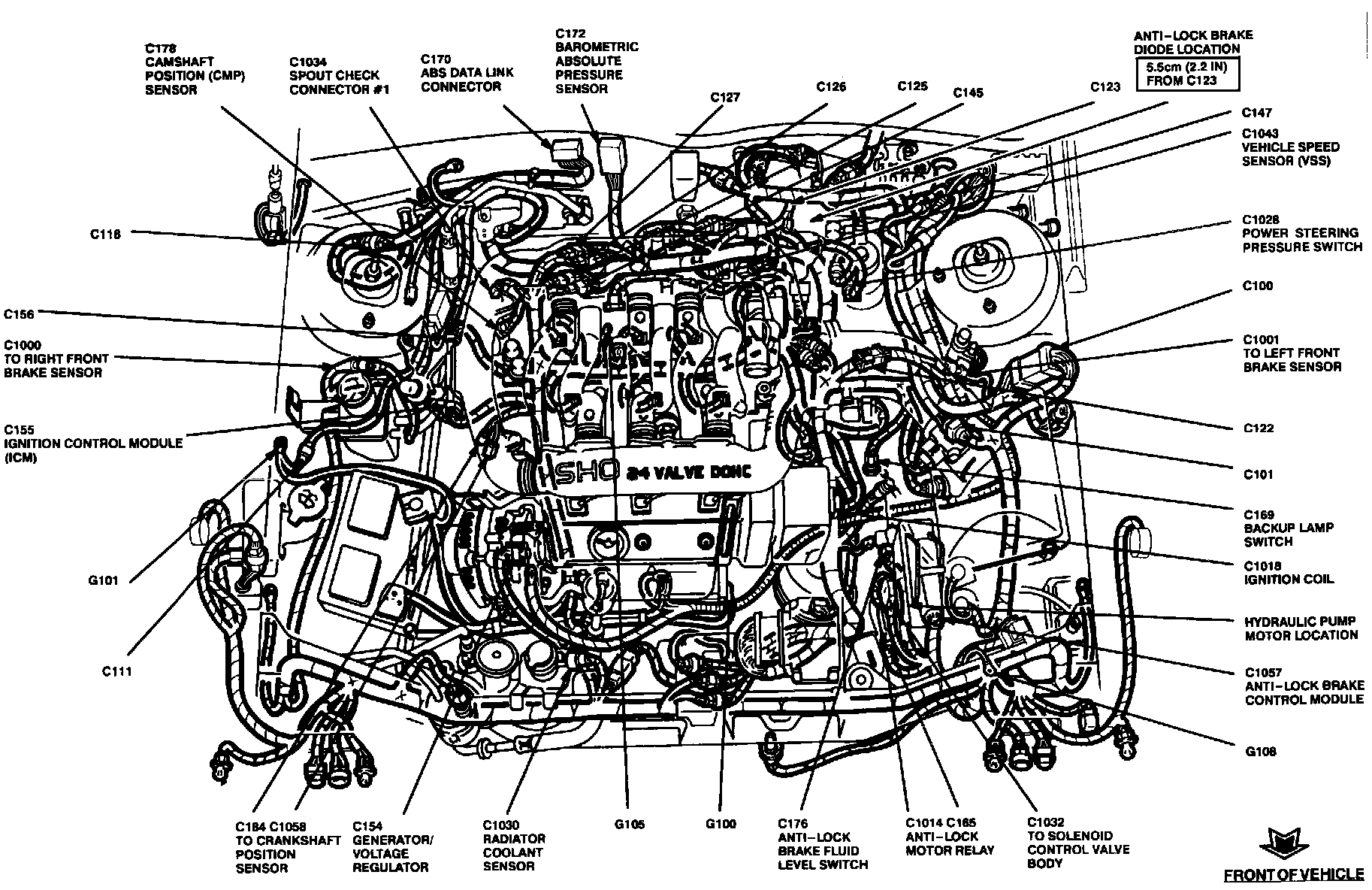

Engine View:






The Ignition Control Module (ICM), is located at the RH side of the engine.
