Data Link Connector: Locations

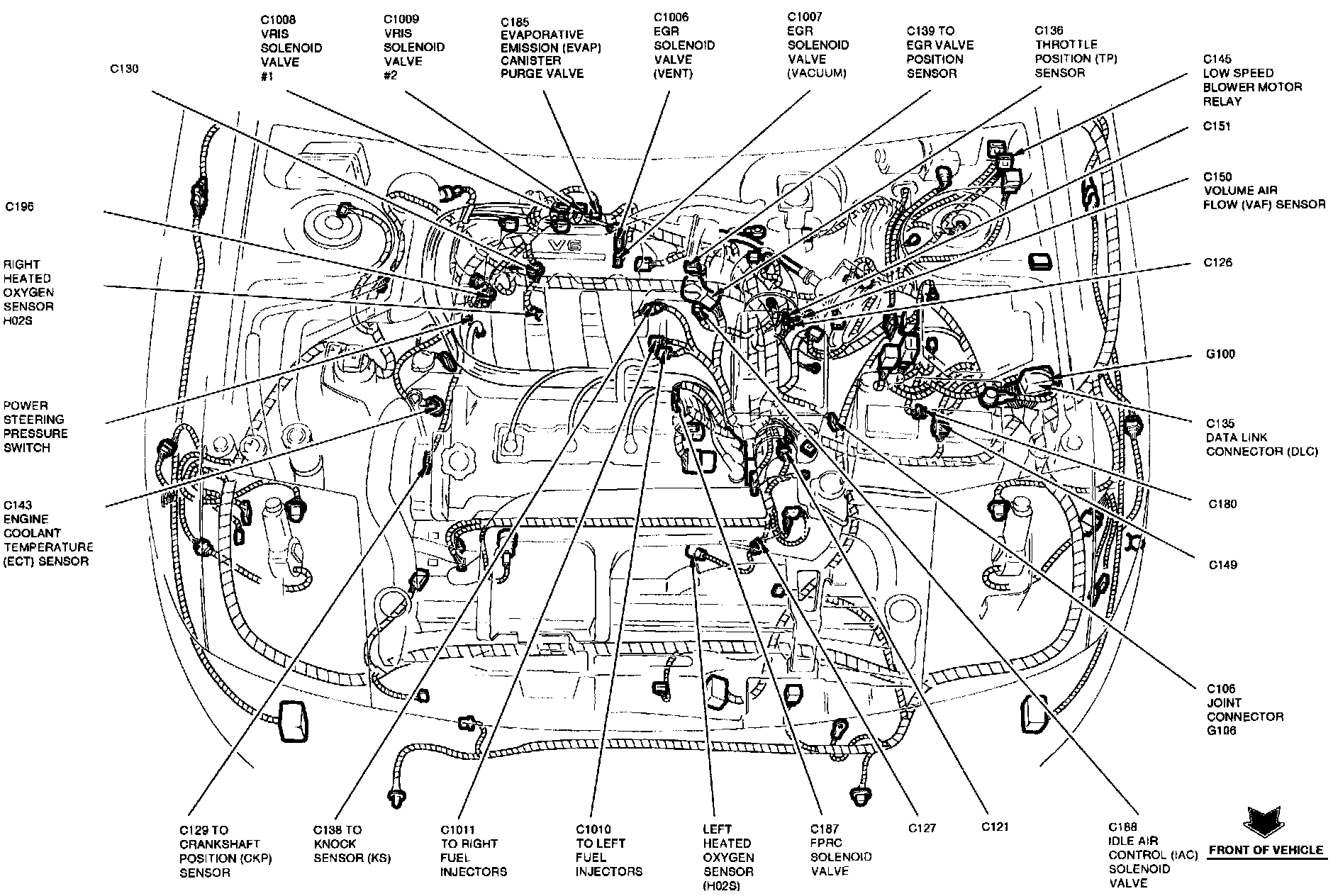

Engine View:
The Data Link Connector is located at the LH side of the engine compartment, on fender apron.
