Home >> Ford >> 1995 >> Mustang V8-302 5.0L HO >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Locations >> Component Locations

Component Locations

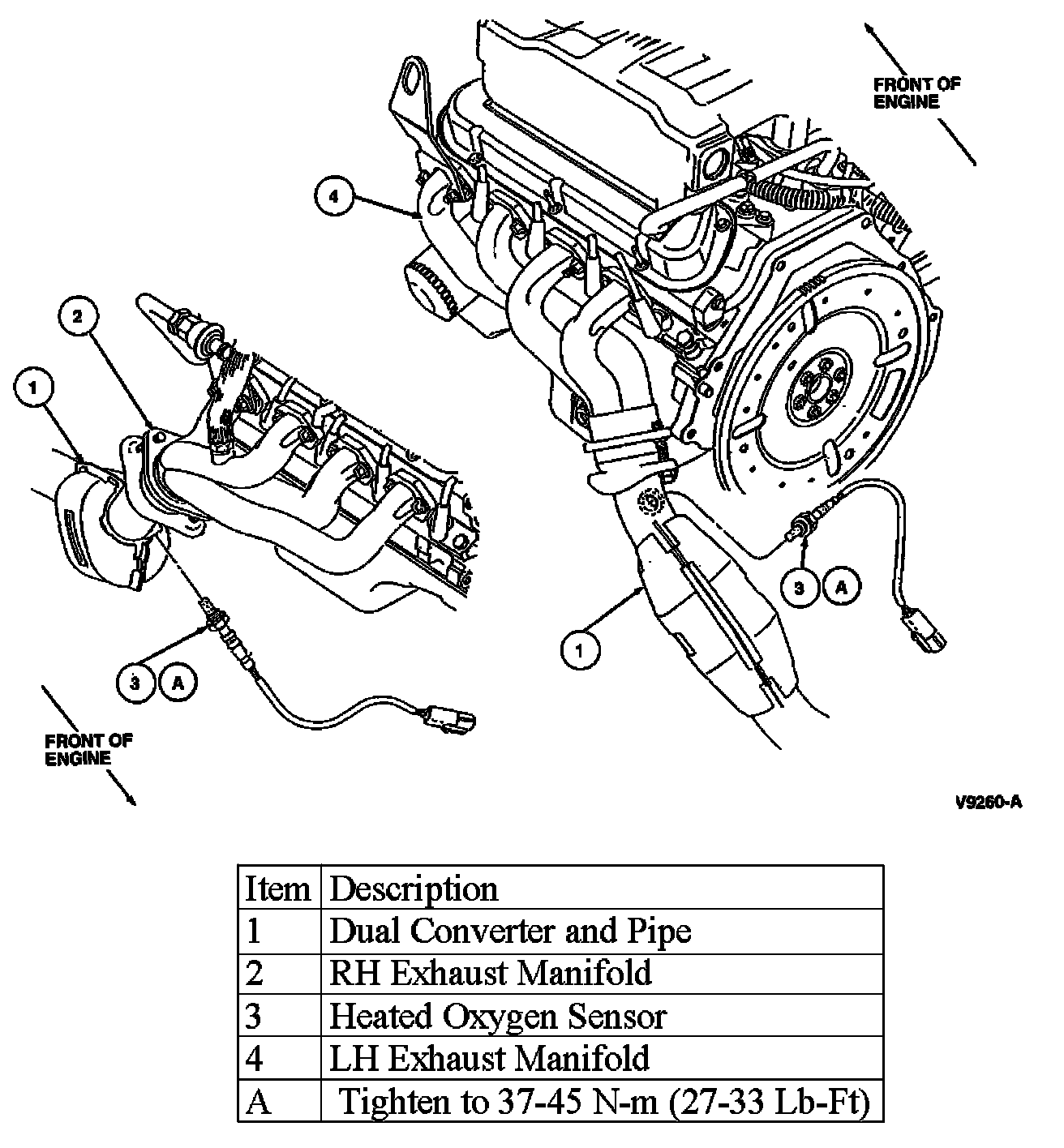

Forward Of Catalytic Converters:






The Heated Oxygen Sensors (HO2S) are located in the dual converter and pipe.
