Driver's Seat Module

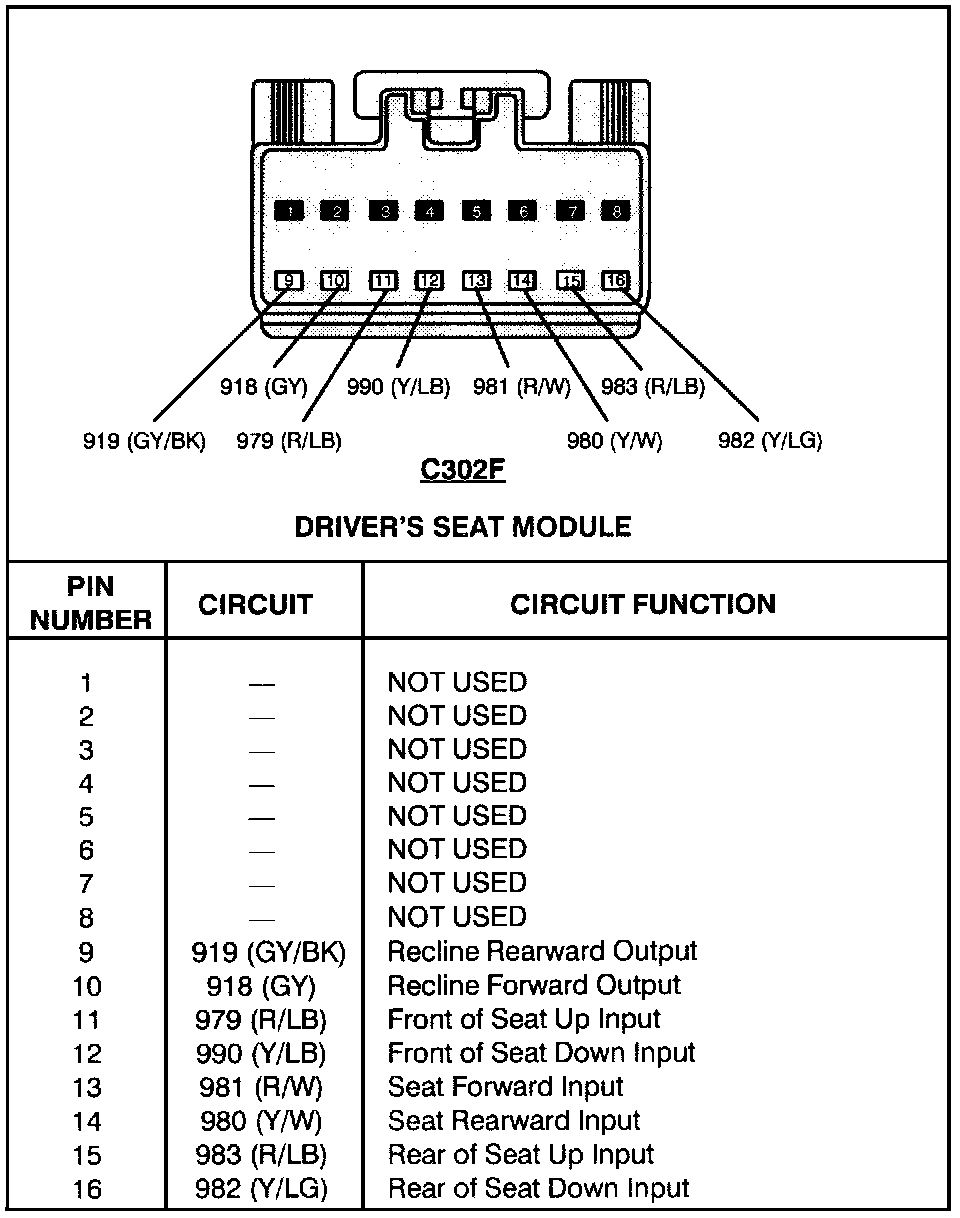

Driver's Seat Module (C302F):

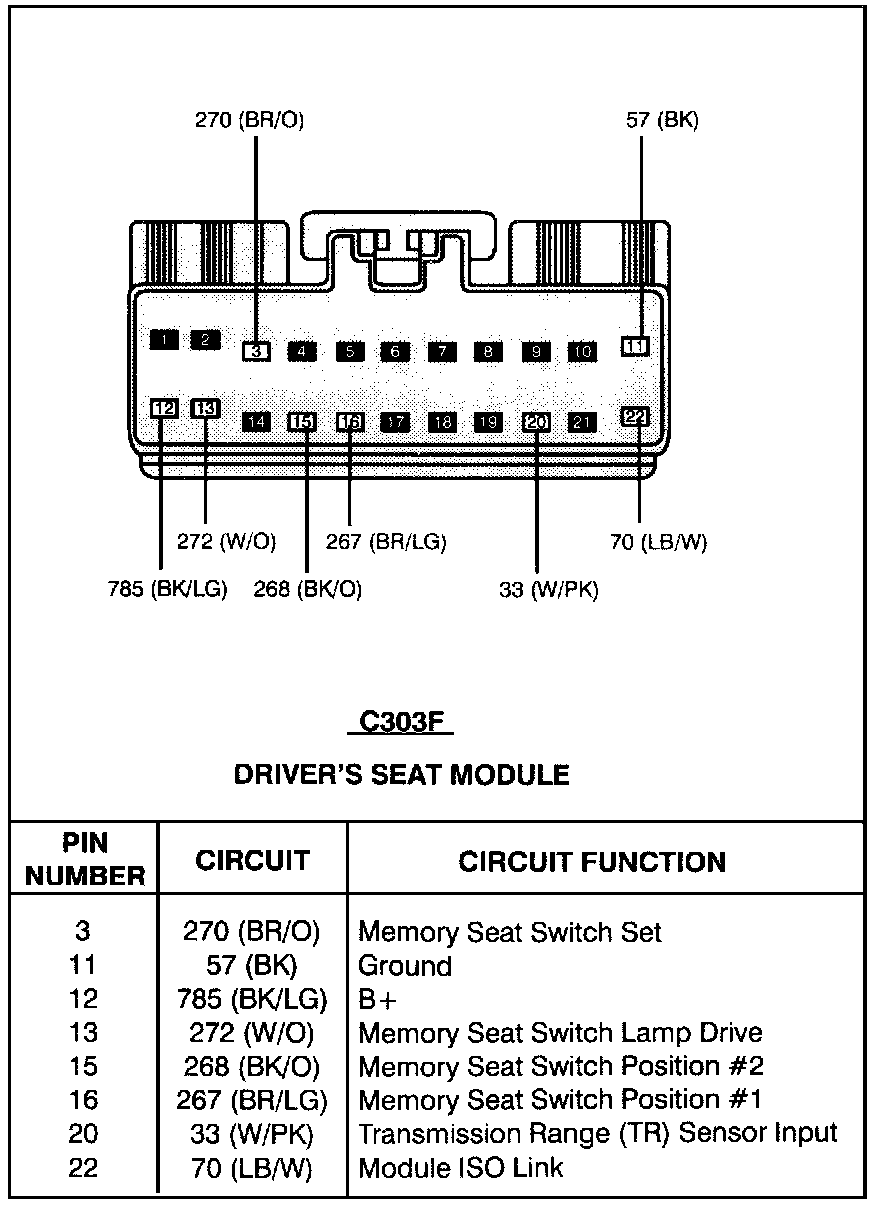

Driver's Seat Module (C303F):

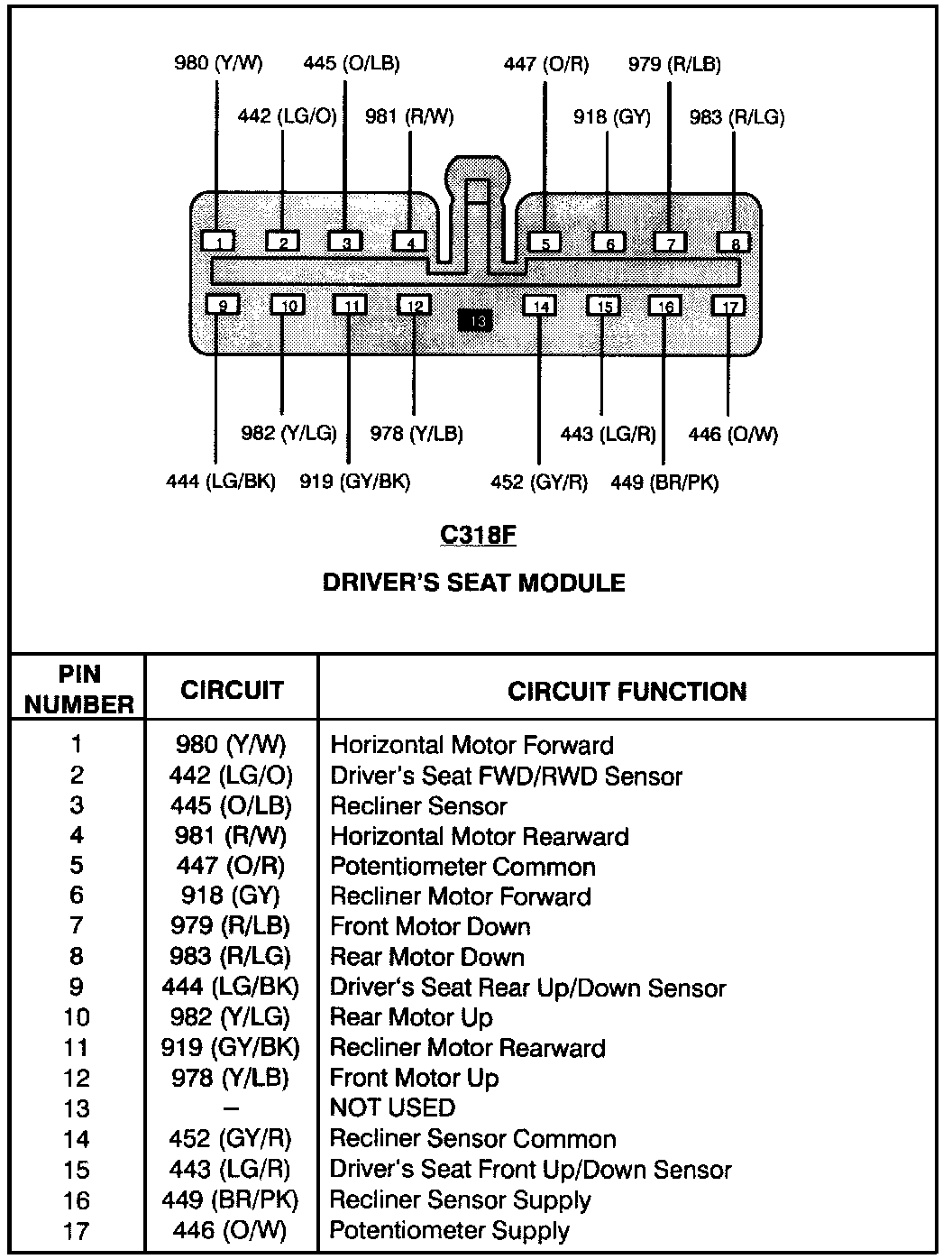

Driver's Seat Module (C318F):

Driver's Seat Module (C319F):
