Main Relay (Computer/Fuel System): Locations

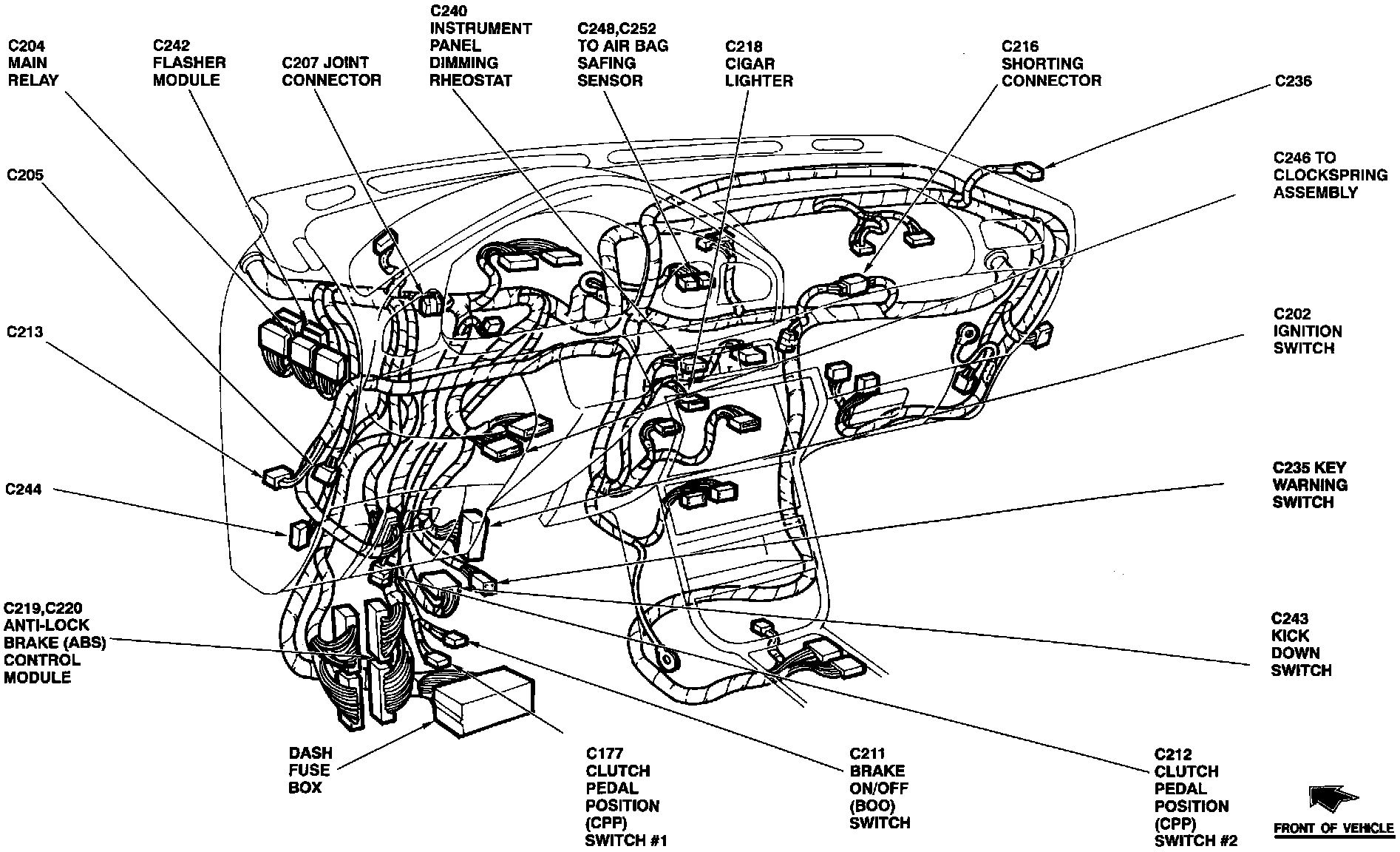

Instrument Panel View:





The Main Relay is located behind the instrument panel, at LH cowl.
