Control Assembly: Testing and Inspection

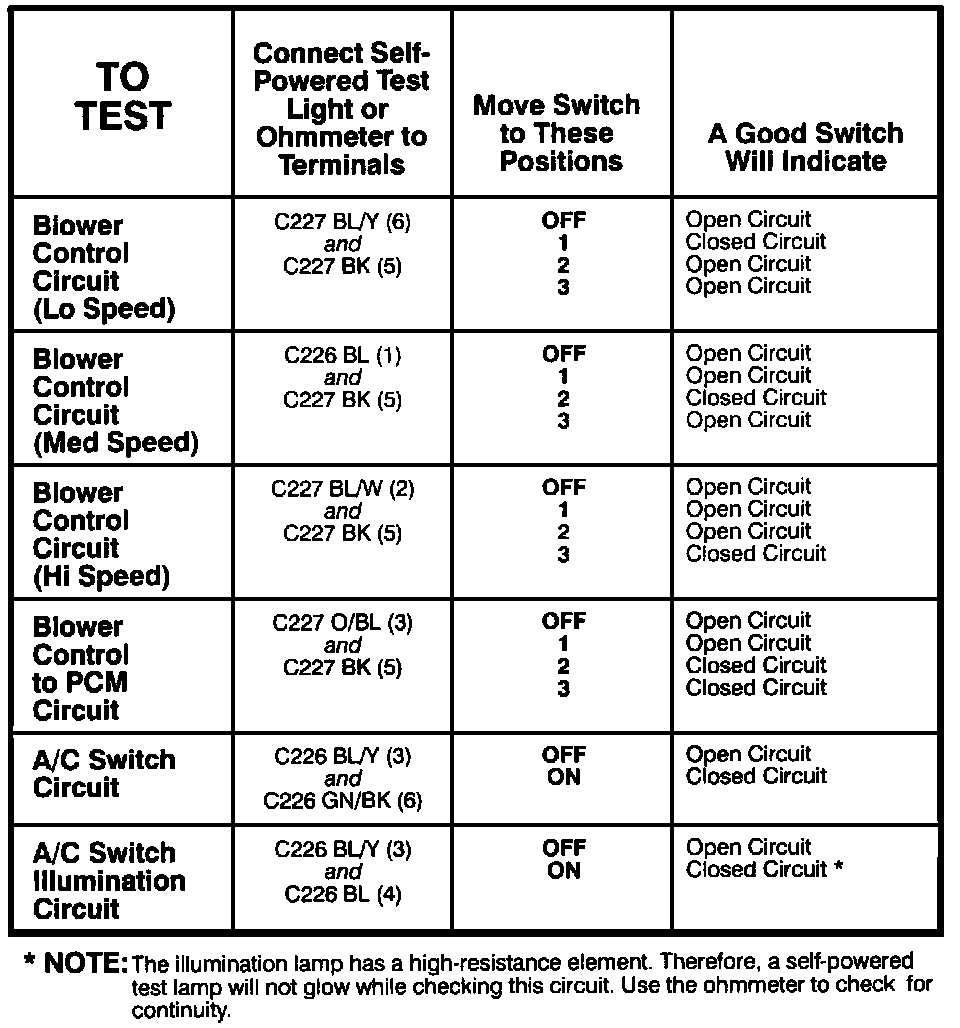

Heater-A/C Control Switch - Component Testing Switch:




Heater-A/C Control Switch - Terminals:




Heater-A/C Control Switch - Schematic:
