Probe L4-133 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Control Module, A/T
Control Module, A/T
4EAT CONTROL MODULE
ELECTRICAL DIAGRAM

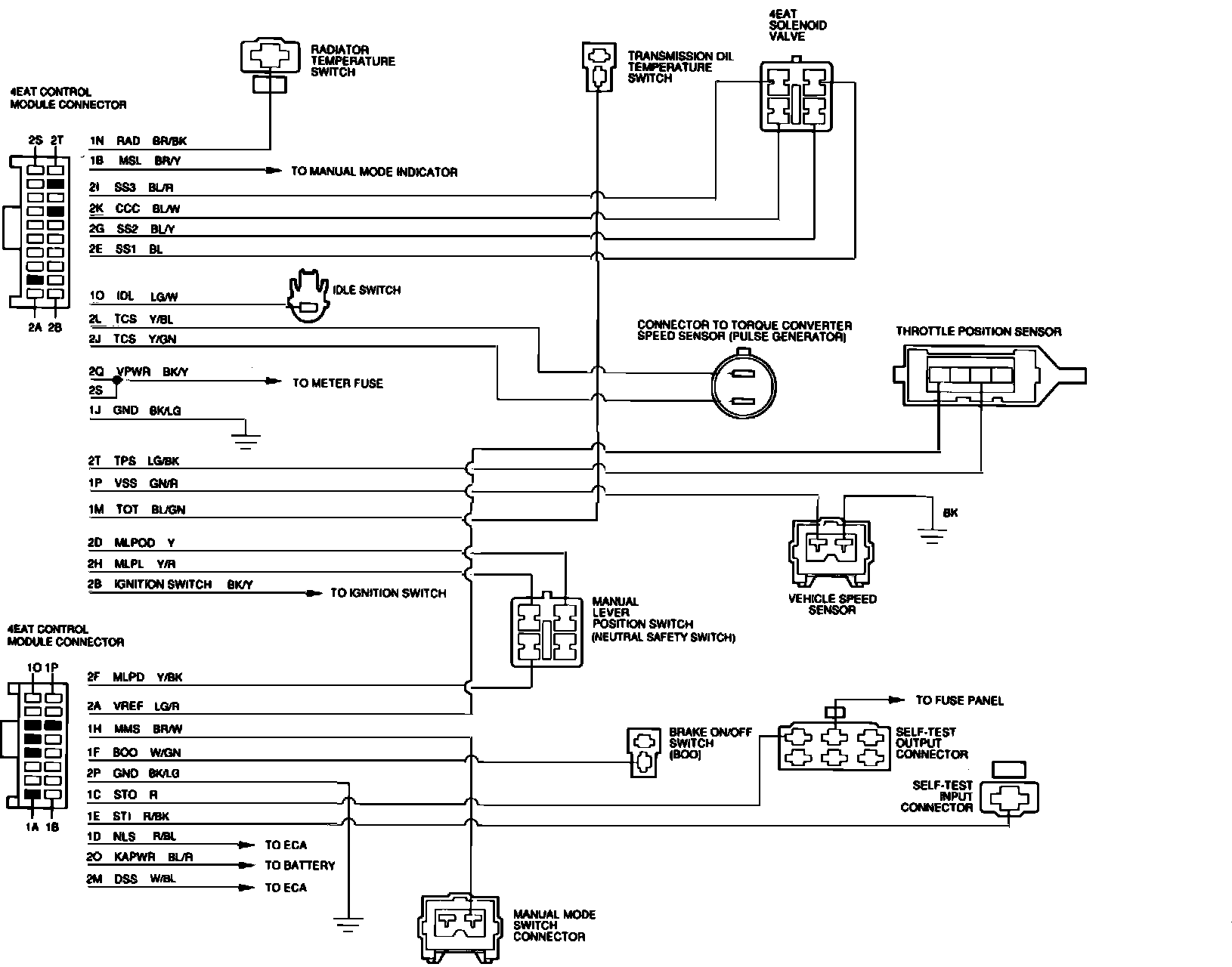

Electrical Schematic:
4EAT CONTROL MODULE
CONNECTOR PIN USAGE

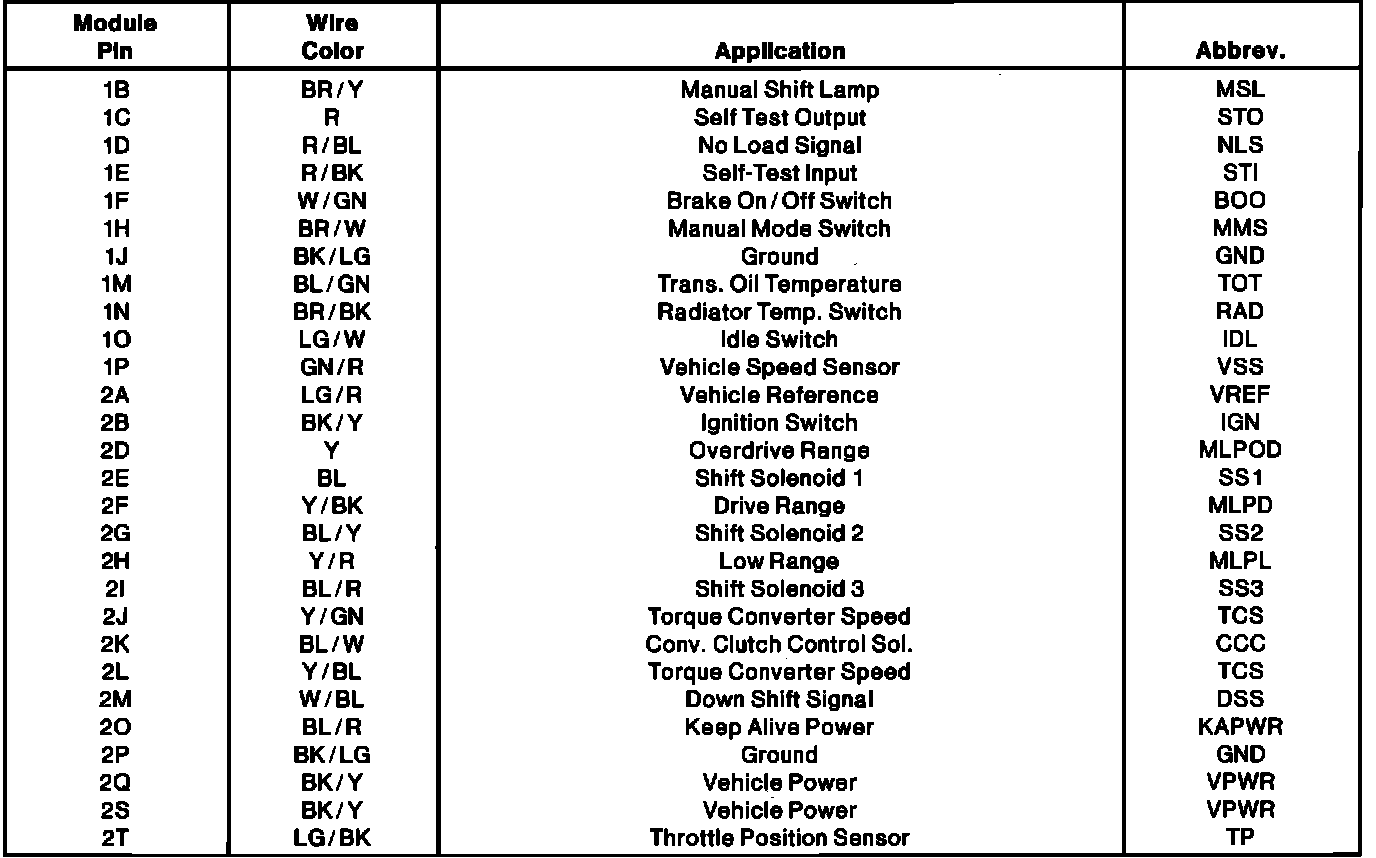

Control Module Pinout:
