Home >> Ford >> 1991 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> Automatic

Automatic

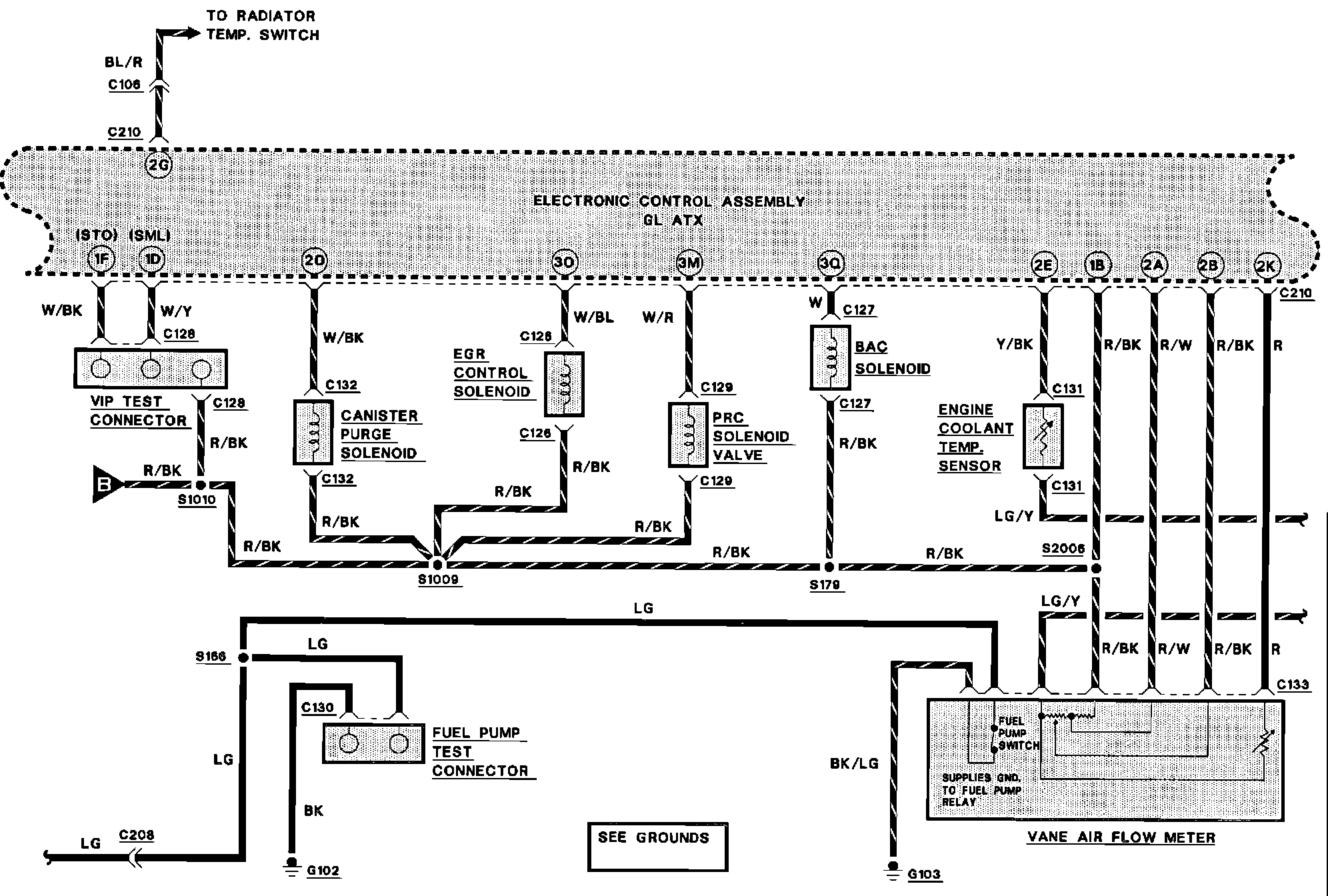

Engine Controls (GL, ATX):

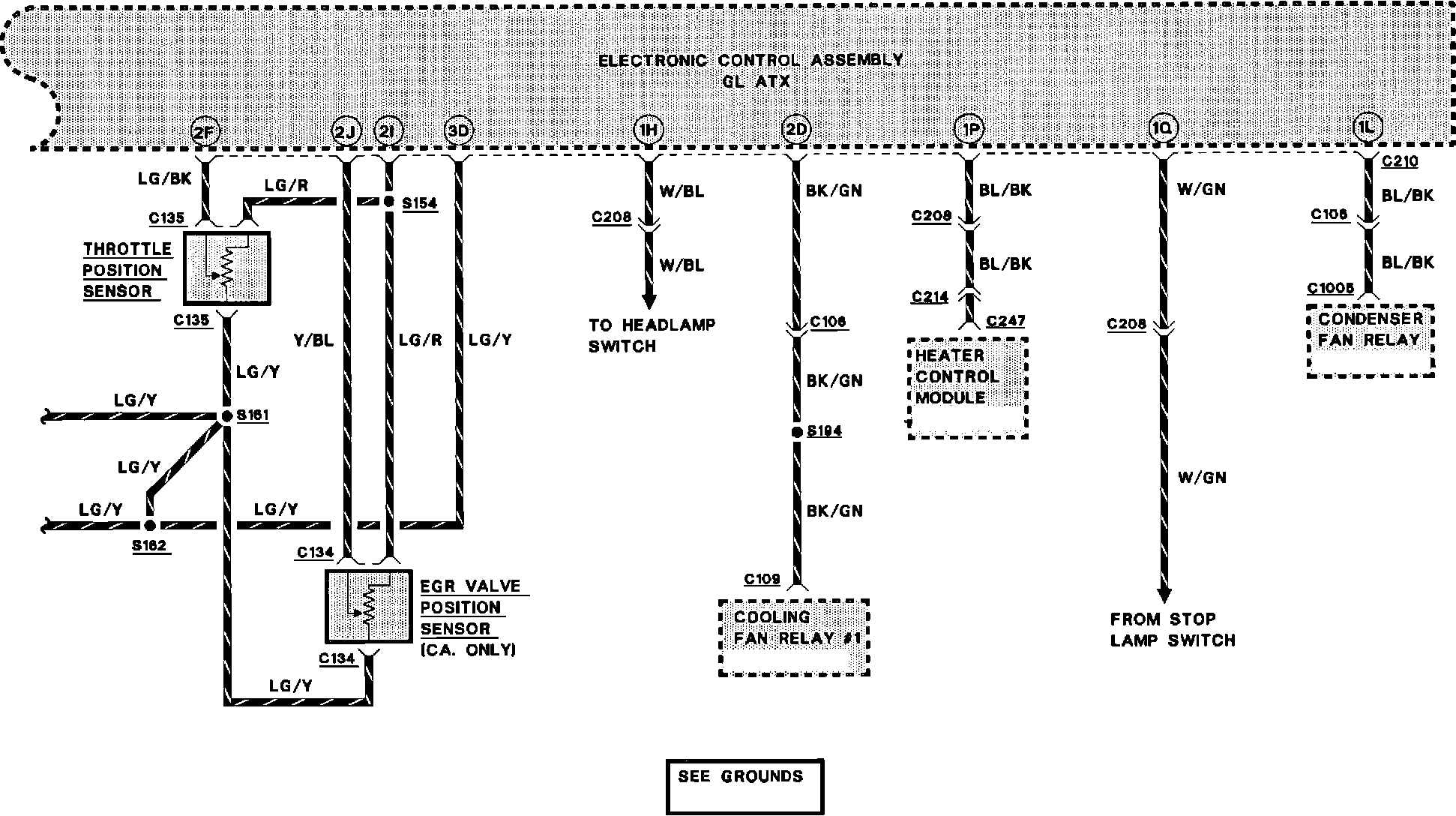

Engine Controls (GL, ATX):

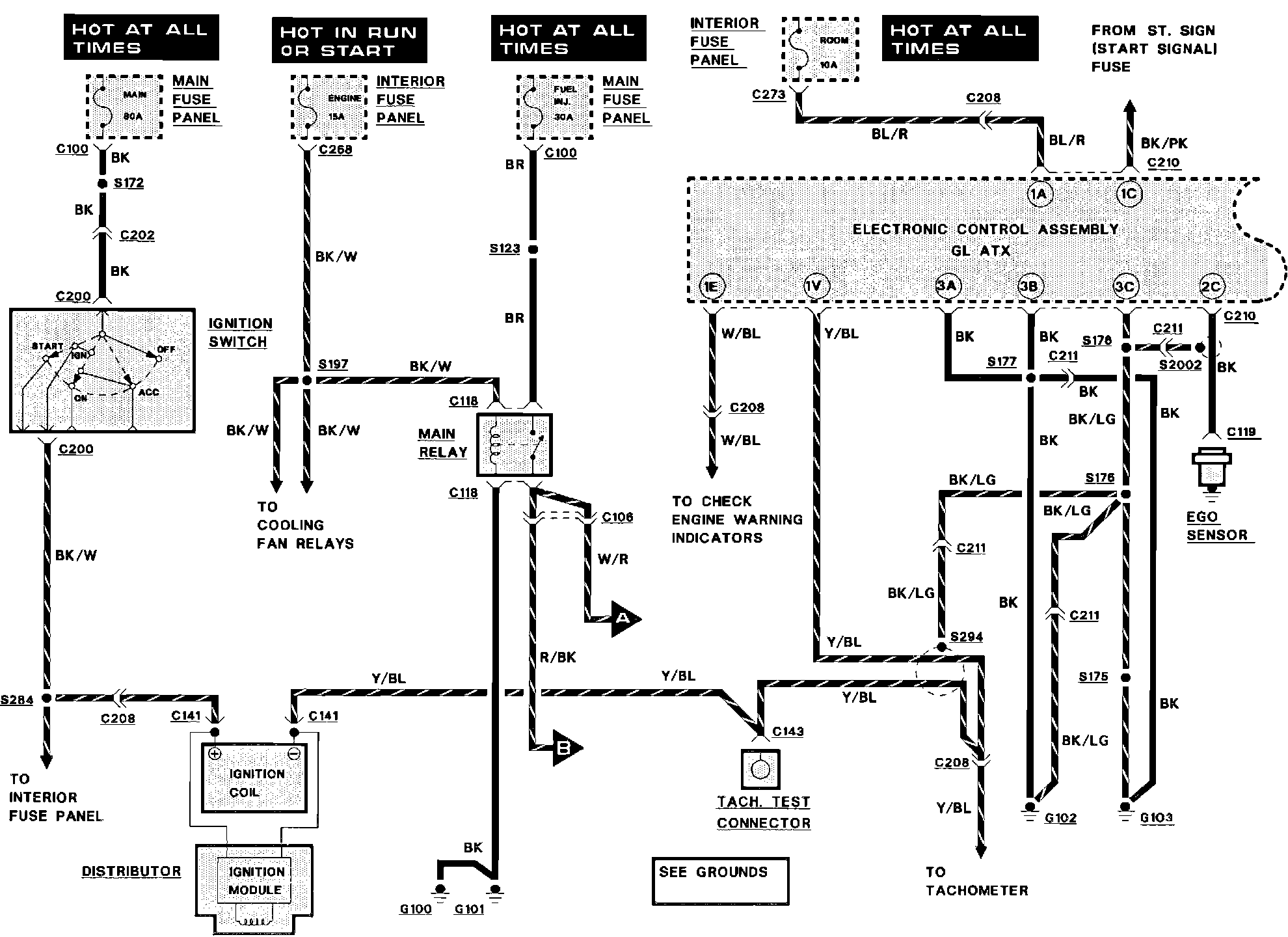

Engine Controls (GL, ATX):

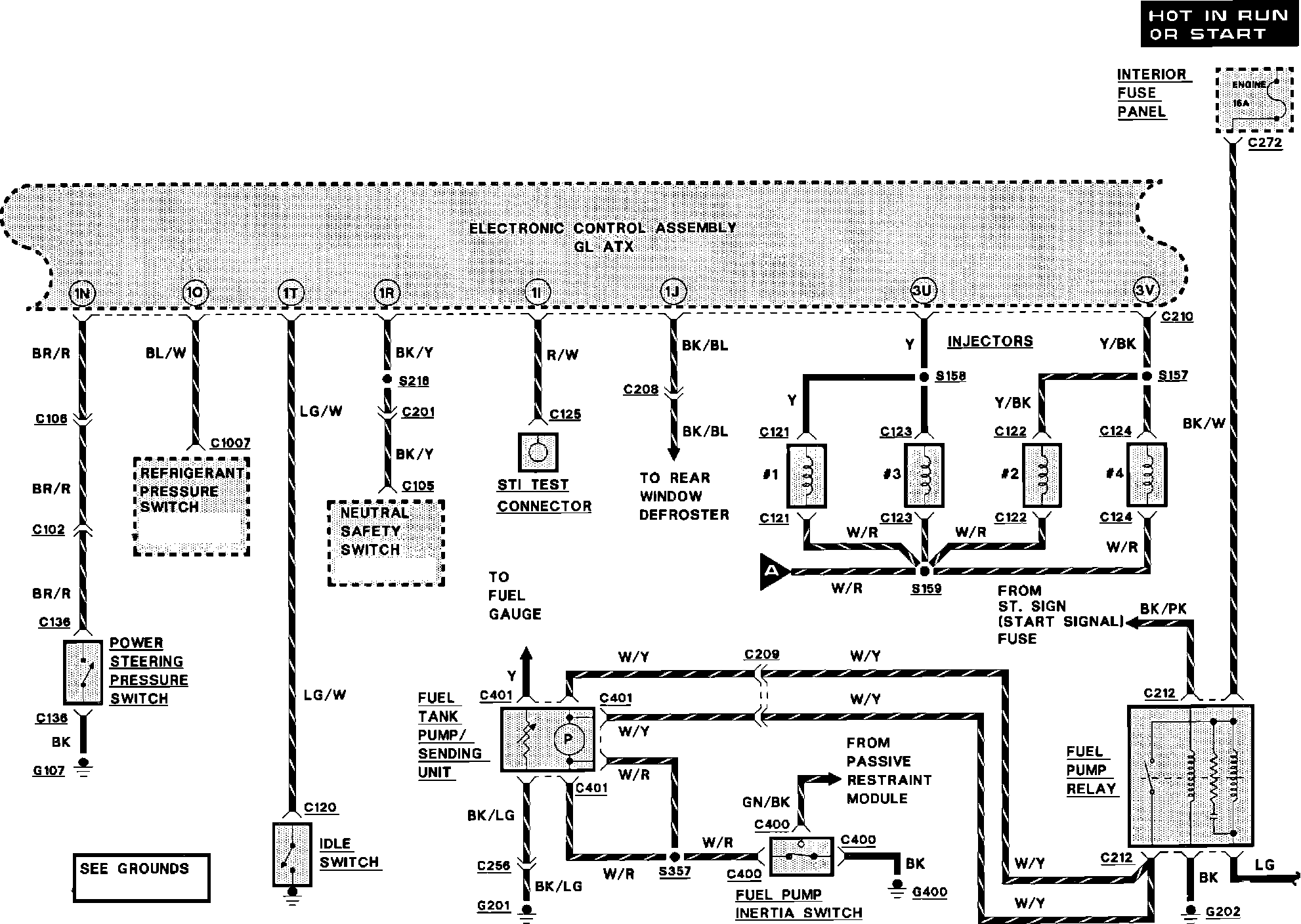

Engine Controls (GL, ATX):
