Home >> Ford >> 1991 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> EGR Valve Position Sensor >> Testing and Inspection >> EVP Testing Notes and Test Schematic

EVP Testing Notes and Test Schematic

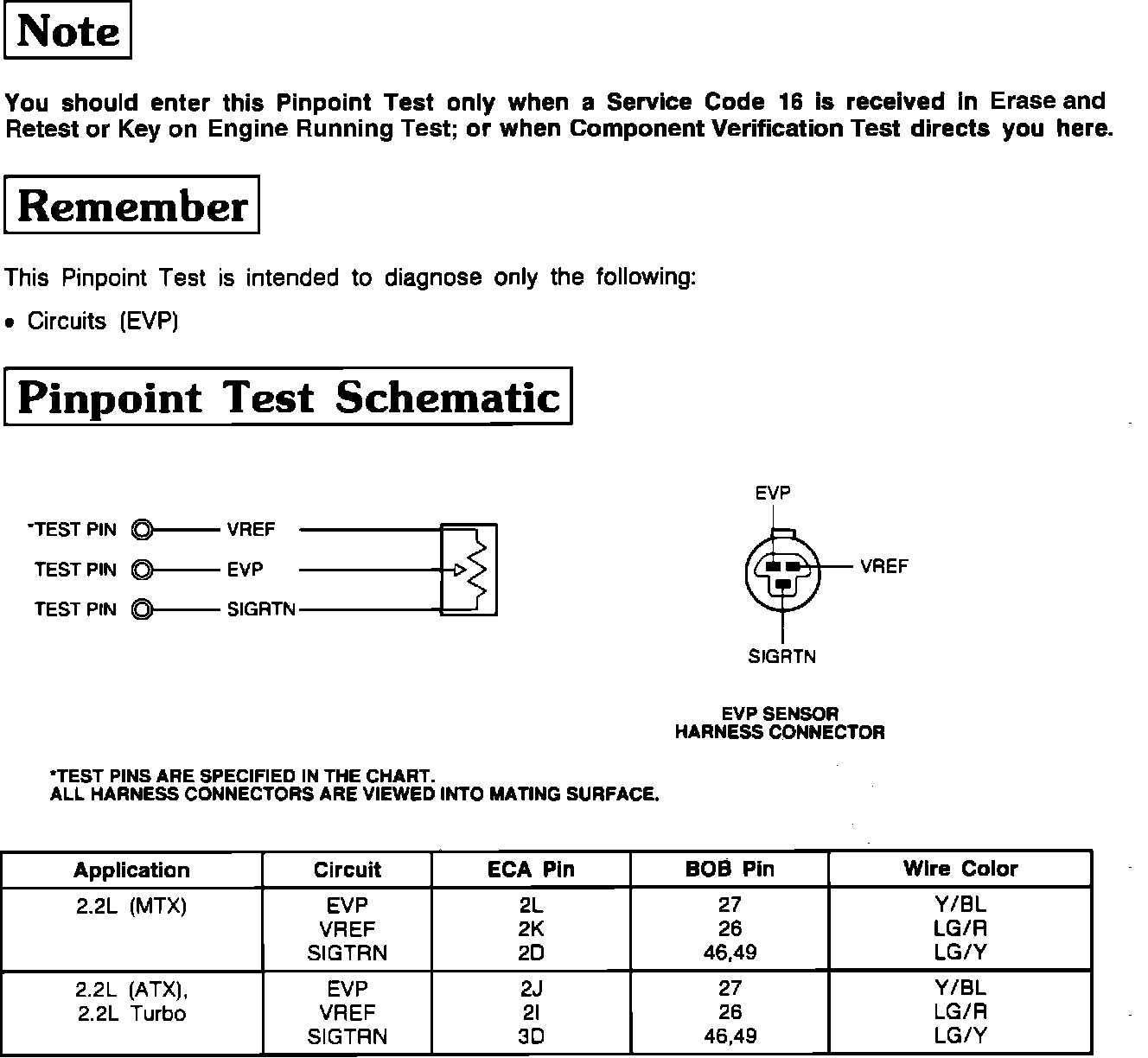

Pinpoint Test EVP Testing Notes And Test Schematic:
