Home >> Ford >> 1991 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Fuse Panel >> Interior Fuse Panel

Interior Fuse Panel

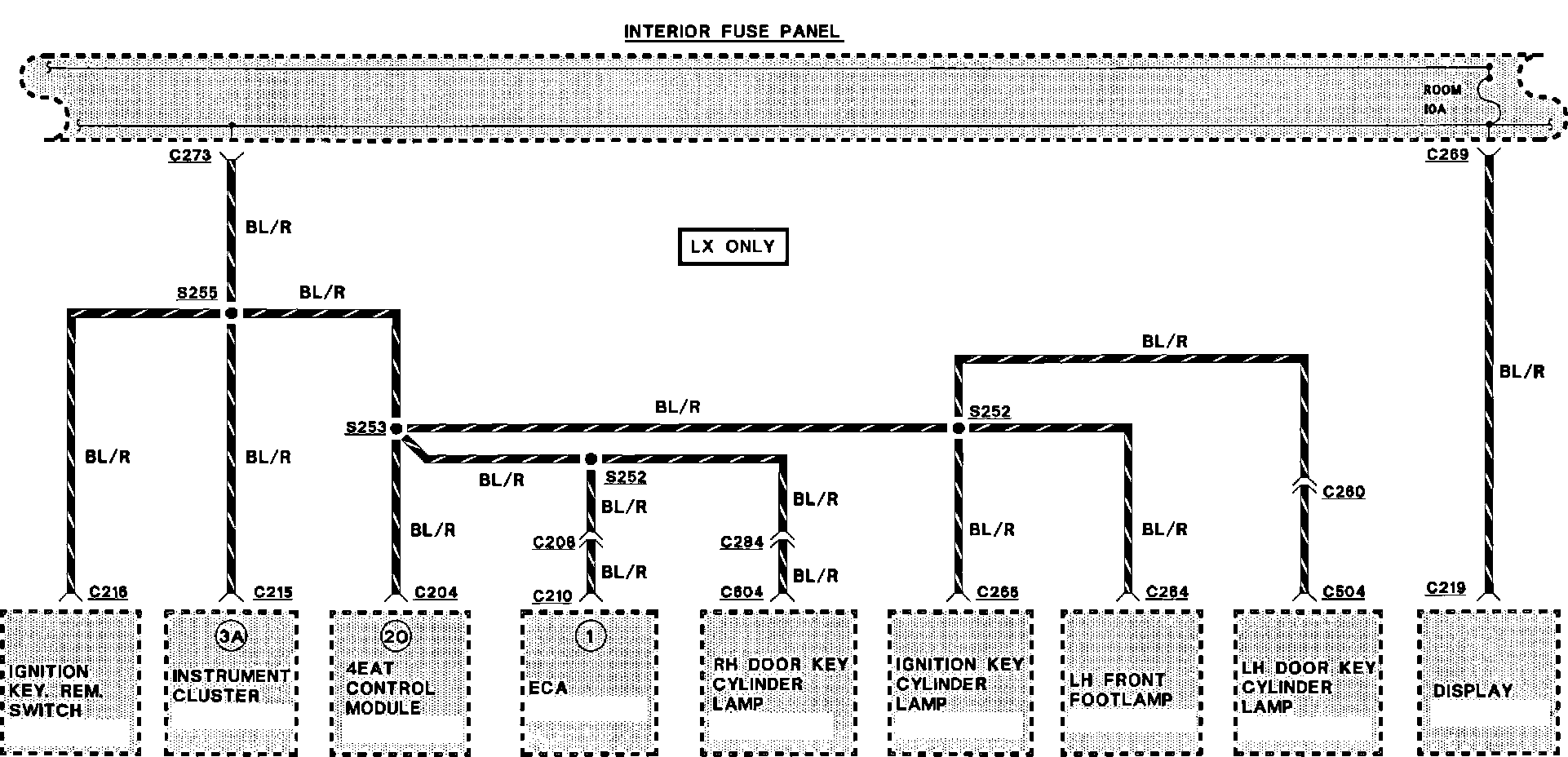

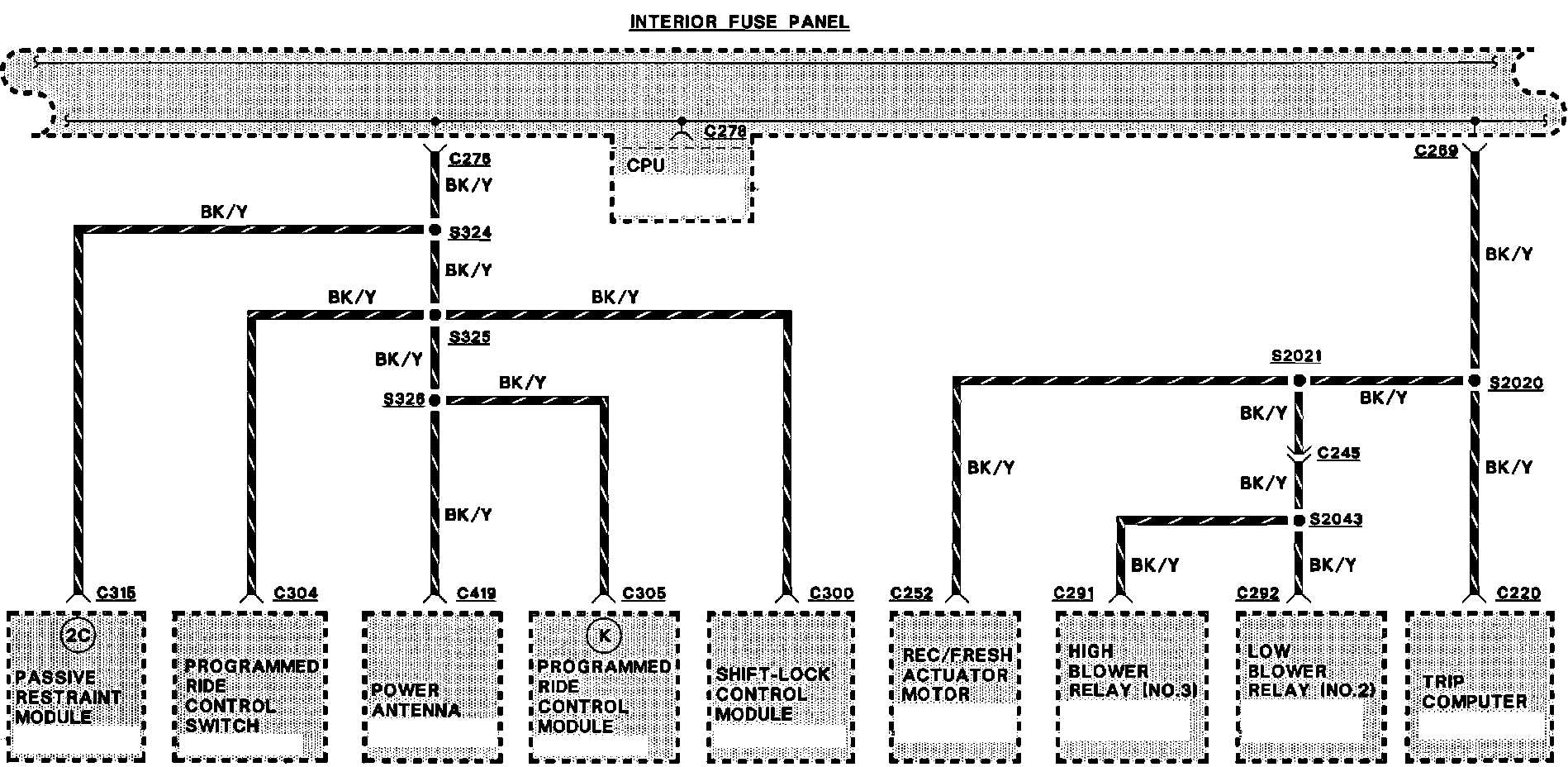

Power Distribution (Fuse 8 - Interior Fuse Panel):

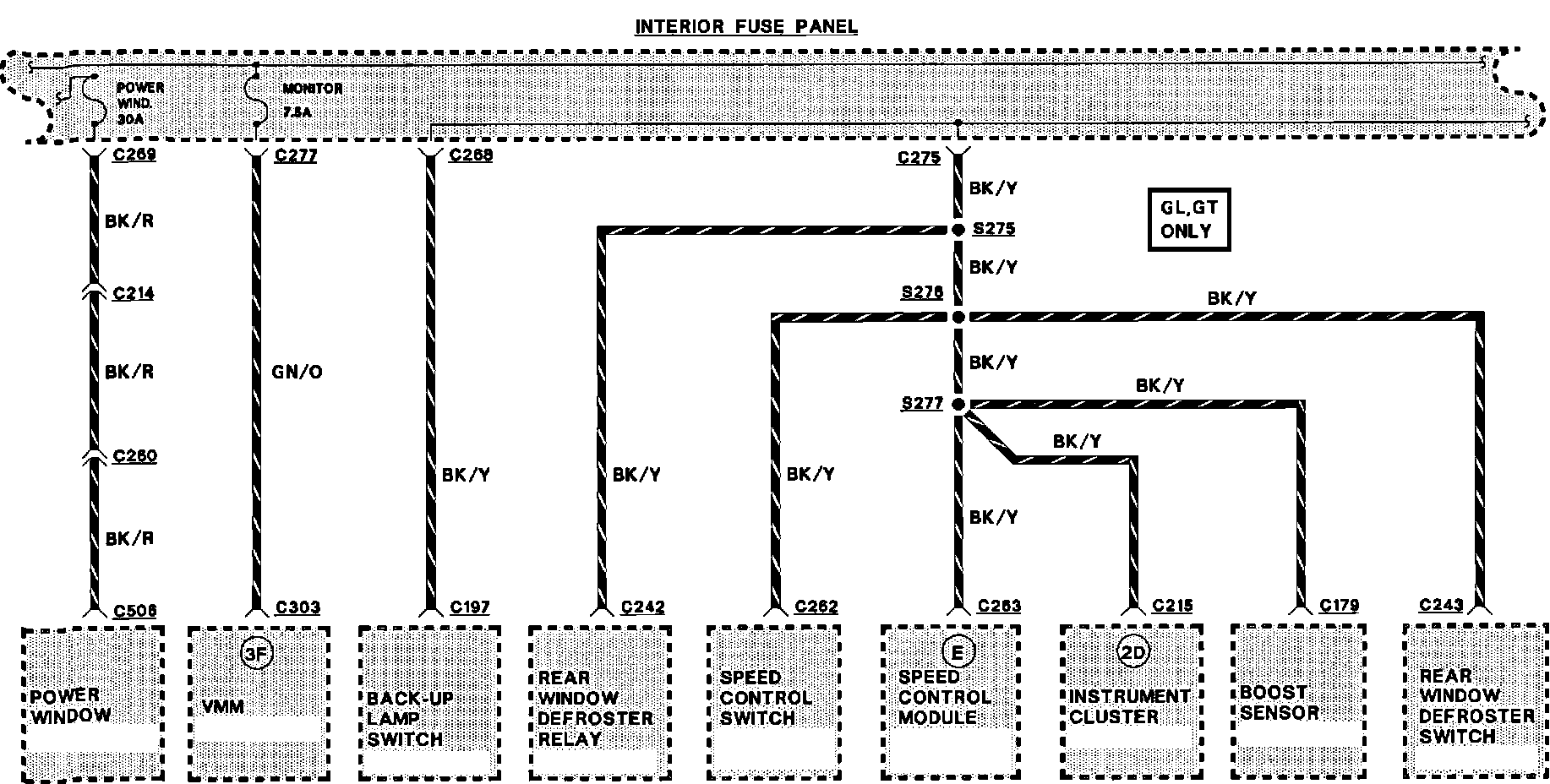

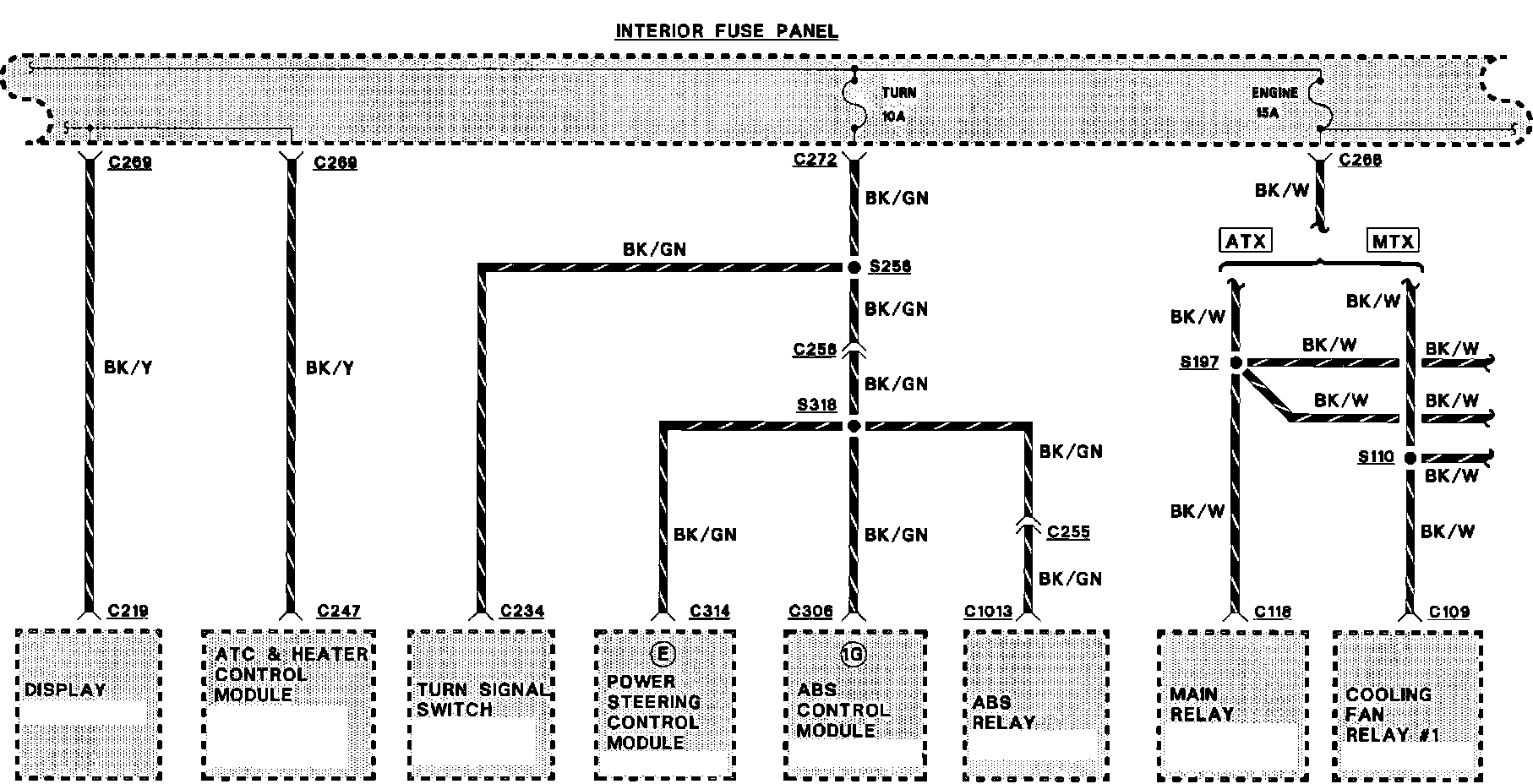

Power Distribution (Fuse 8 - Interior Fuse Panel):

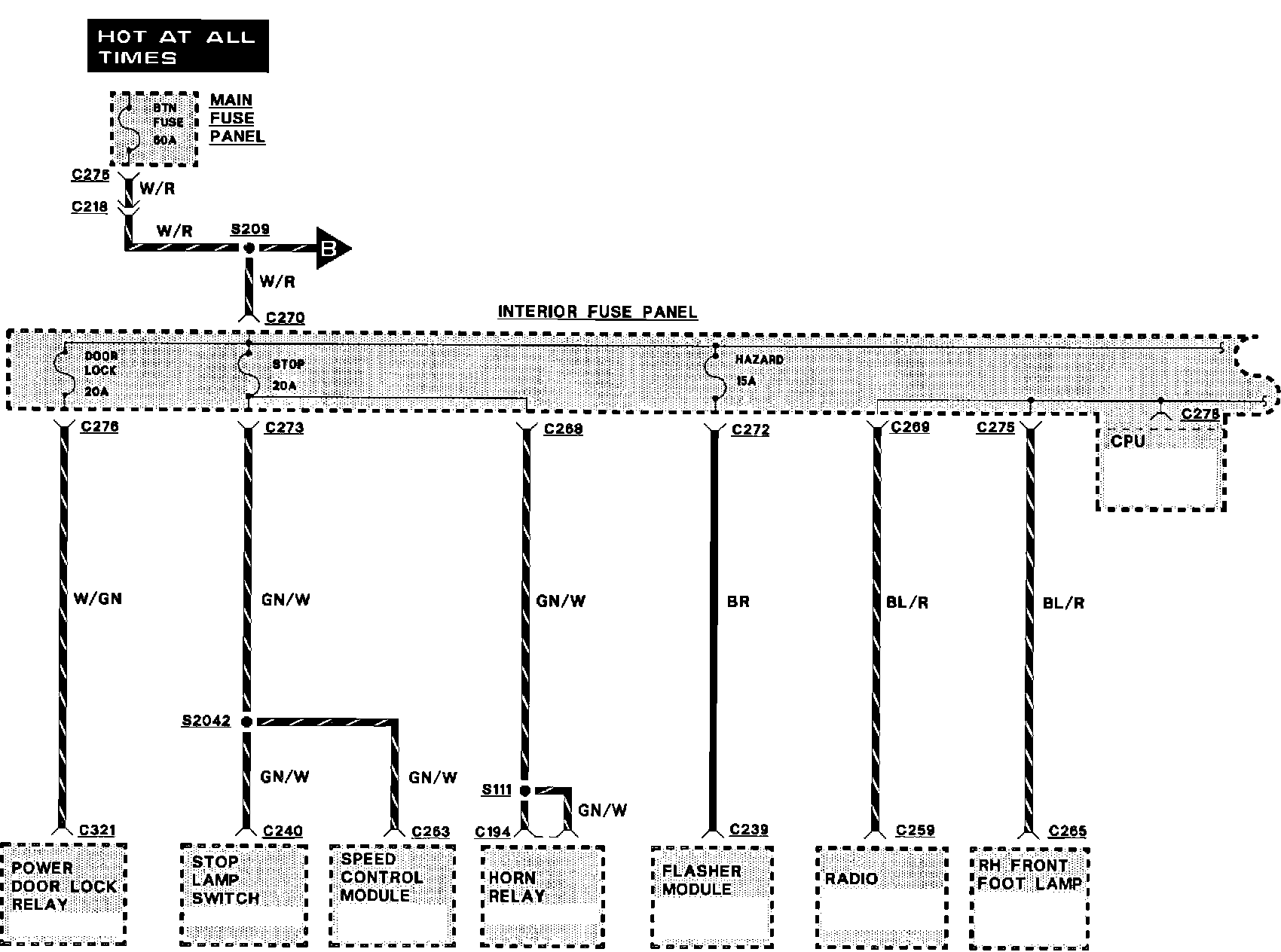

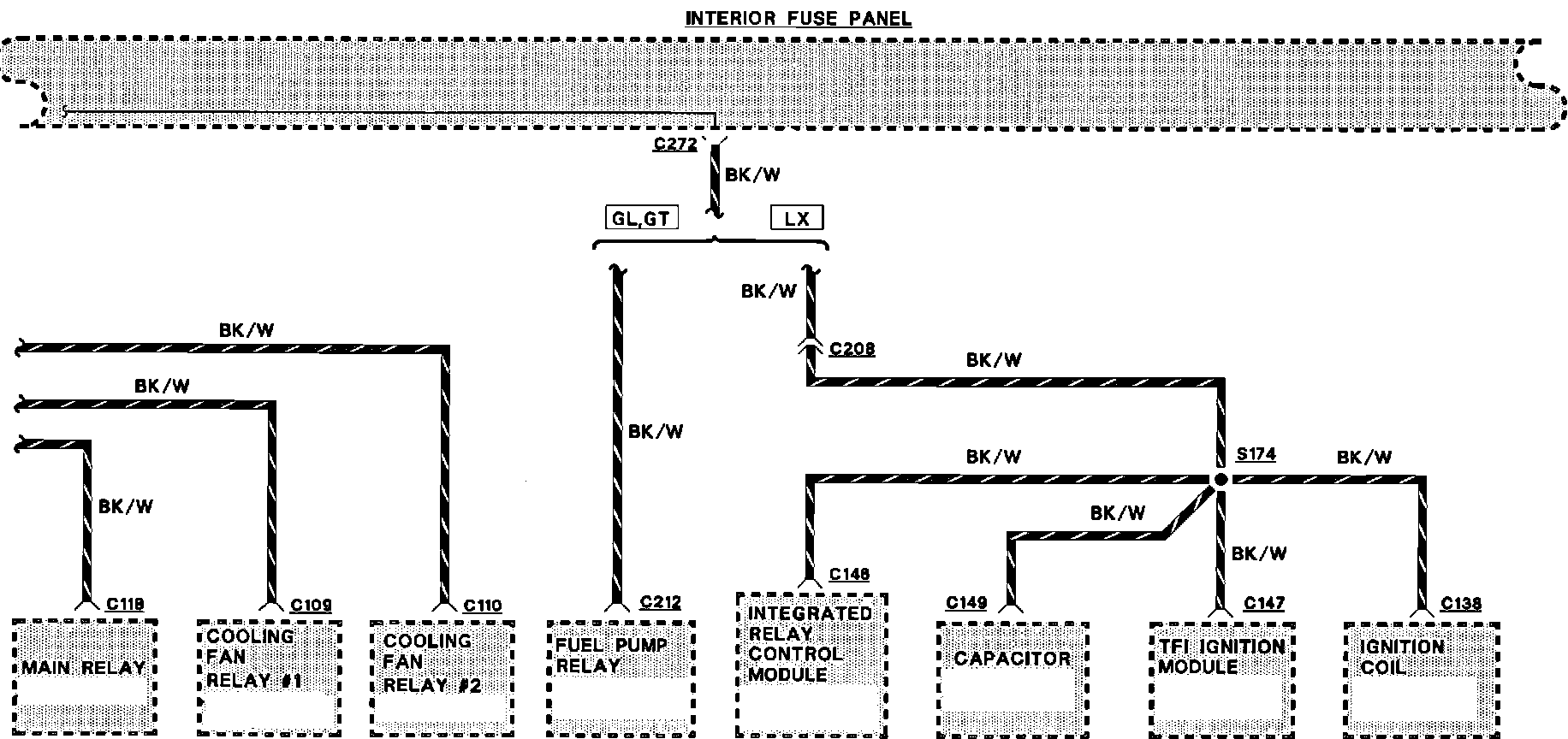

Power Distribution (Fuse 8 - Interior Fuse Panel):

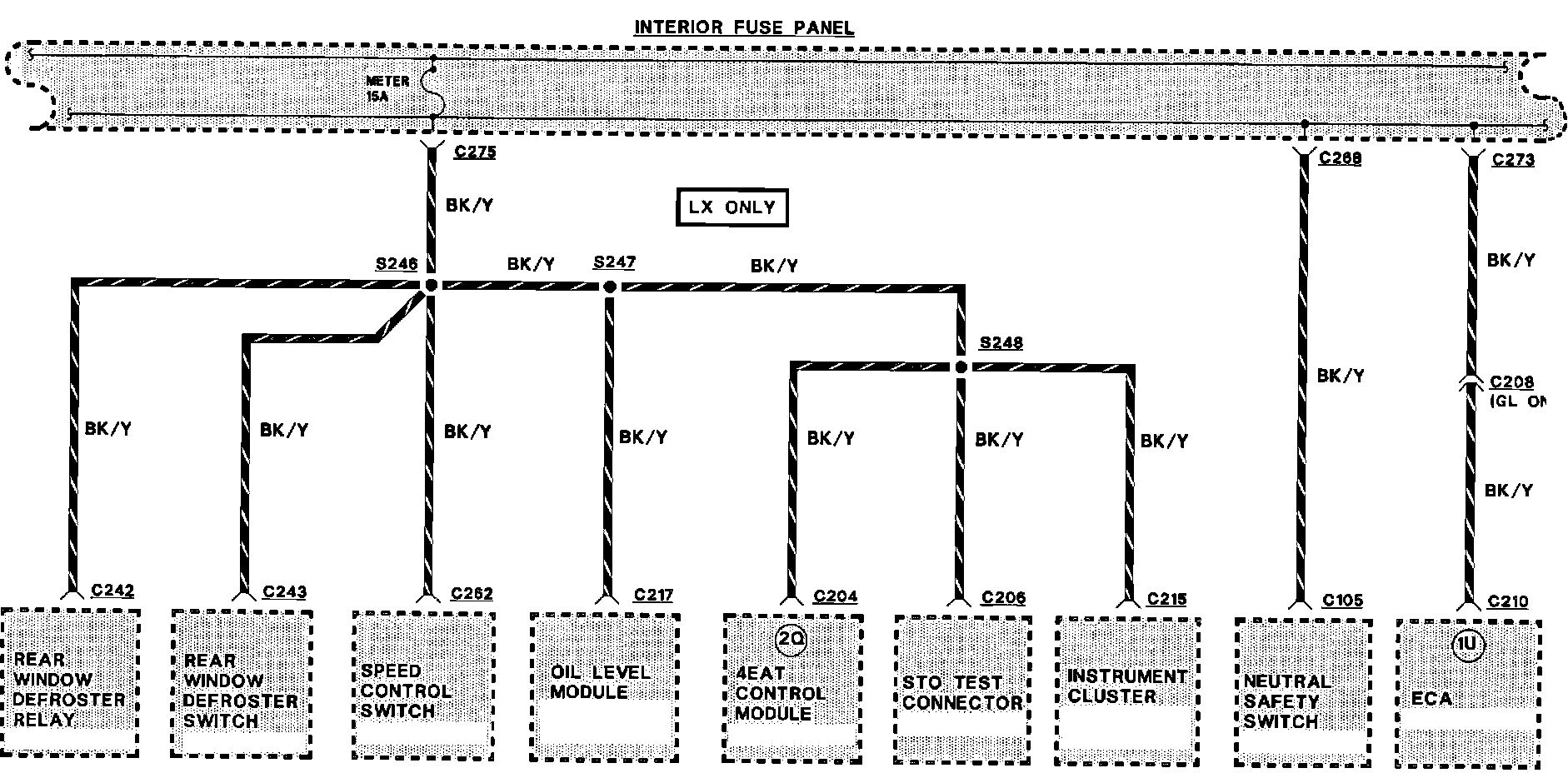

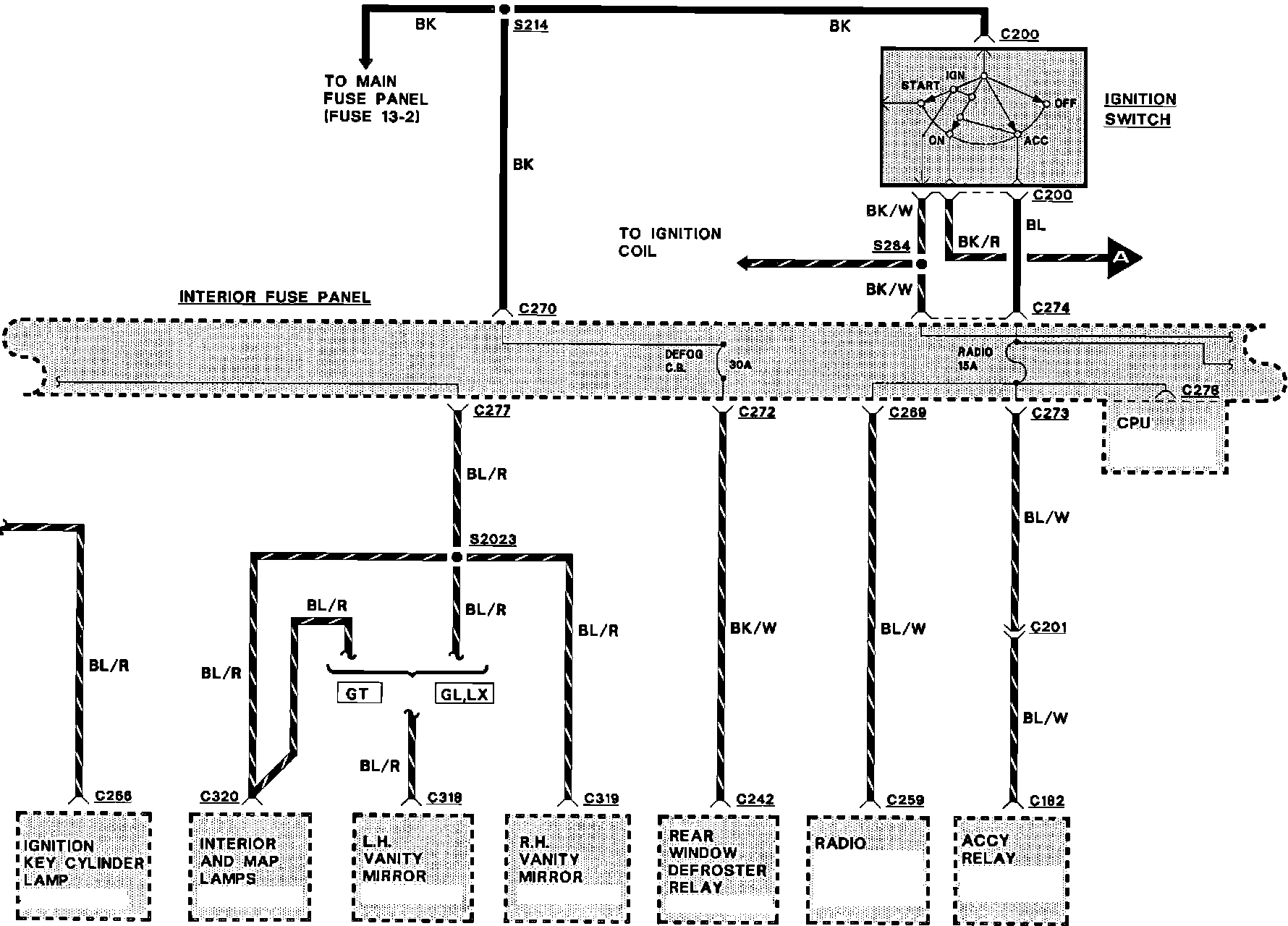

Power Distribution (Fuse 8 - Interior Fuse Panel):

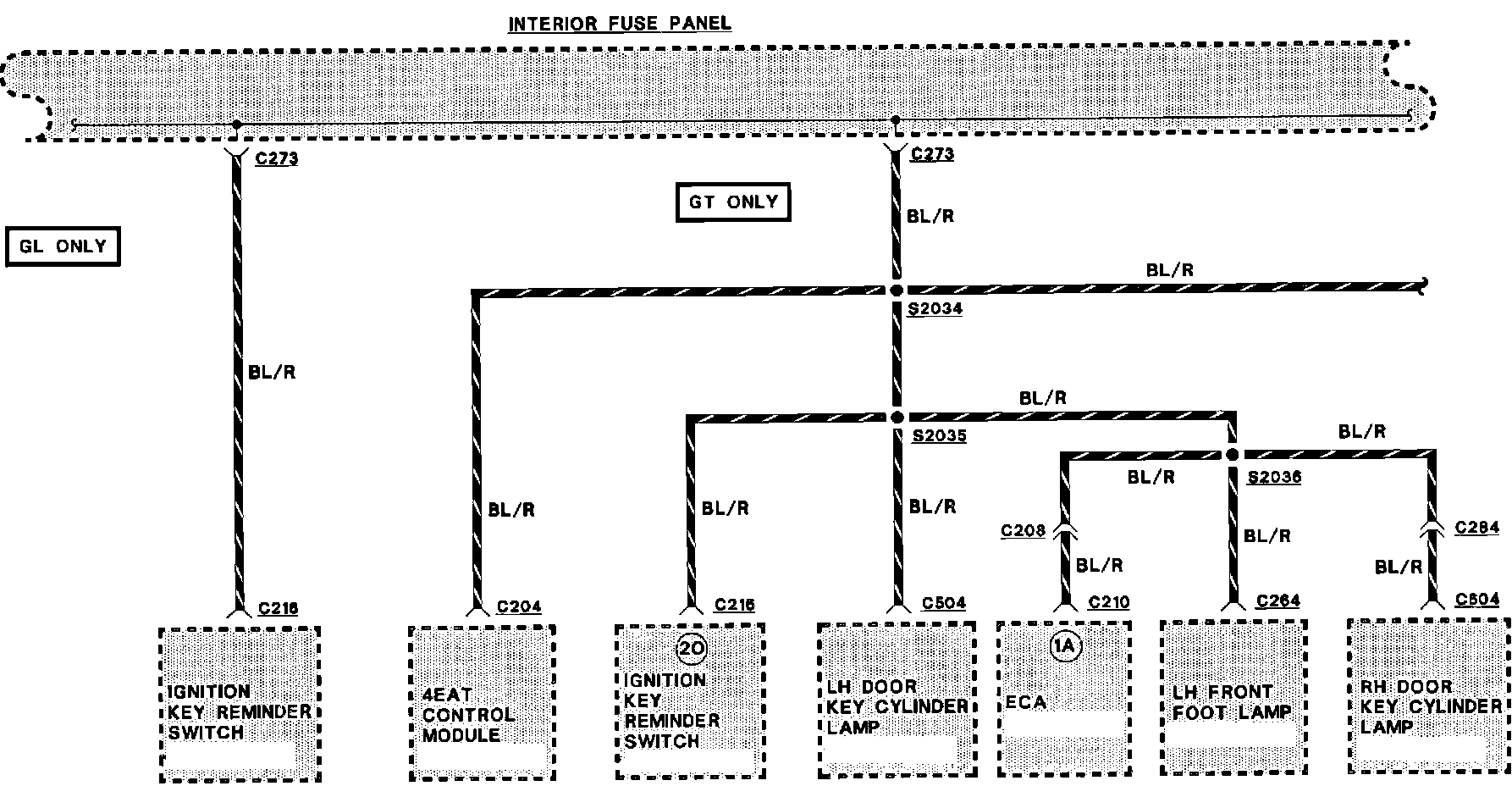

Power Distribution (Fuse 8 - Interior Fuse Panel):

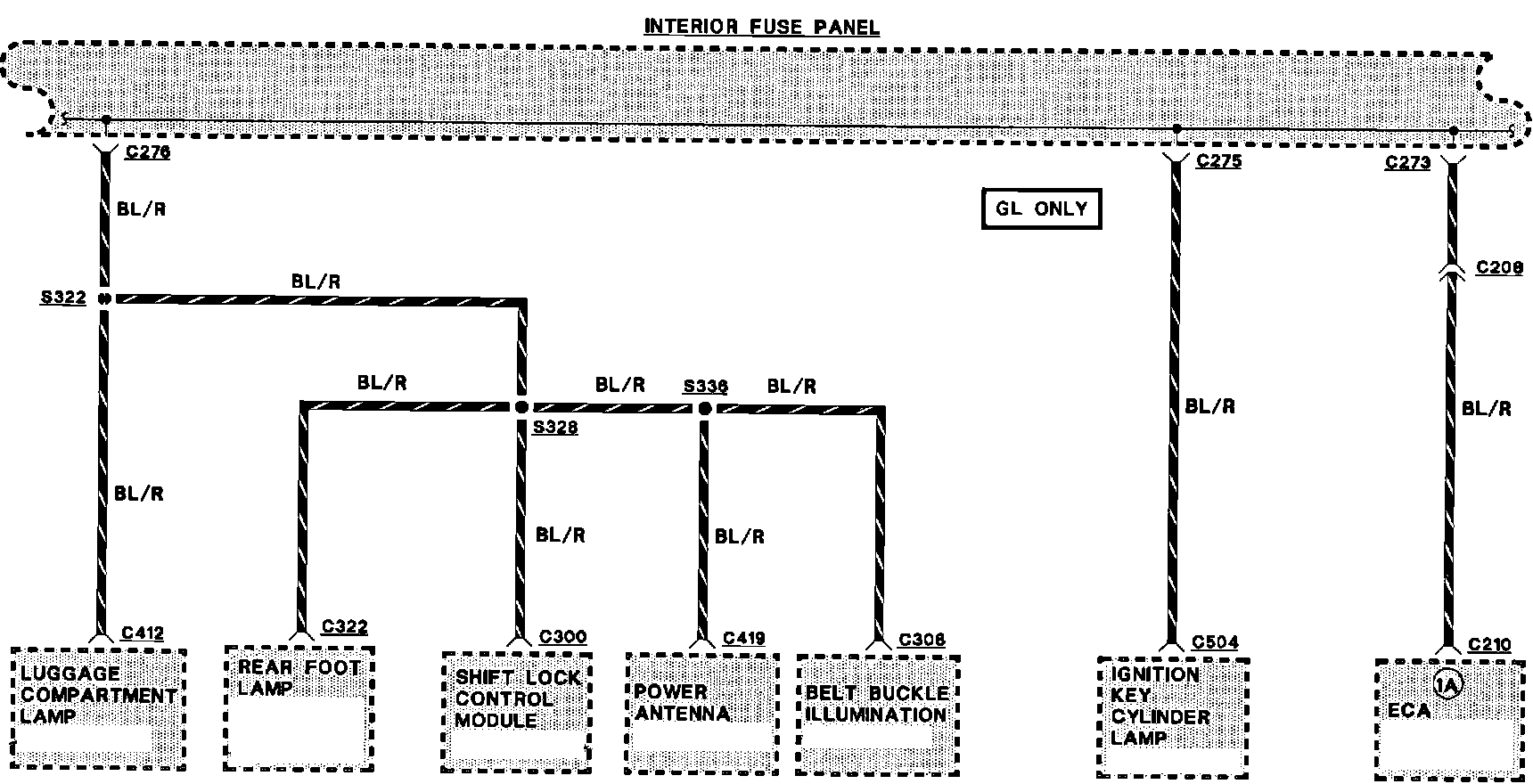

Power Distribution (Fuse 8 - Interior Fuse Panel):

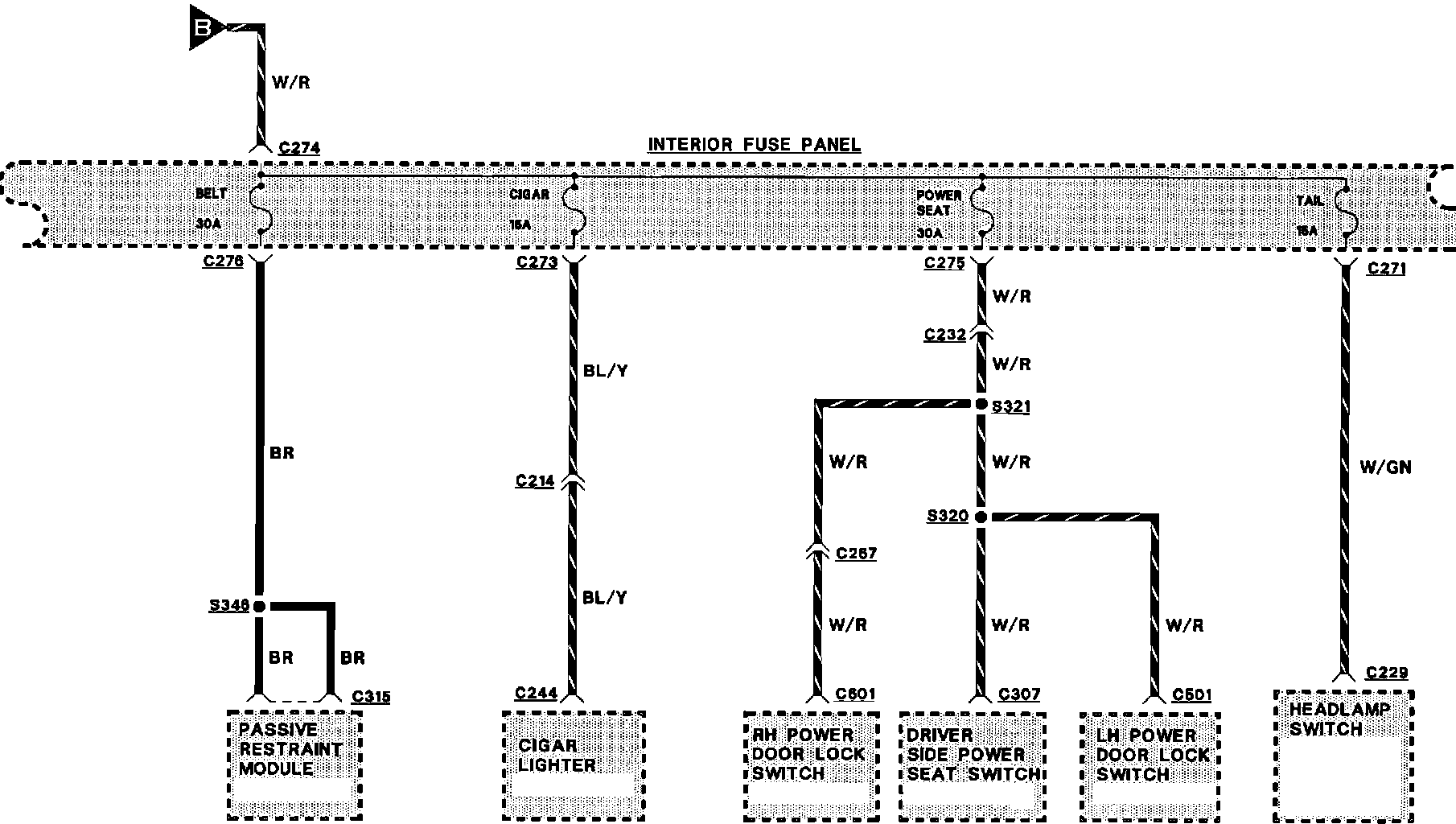

Power Distribution (Fuse 8 - Interior Fuse Panel):

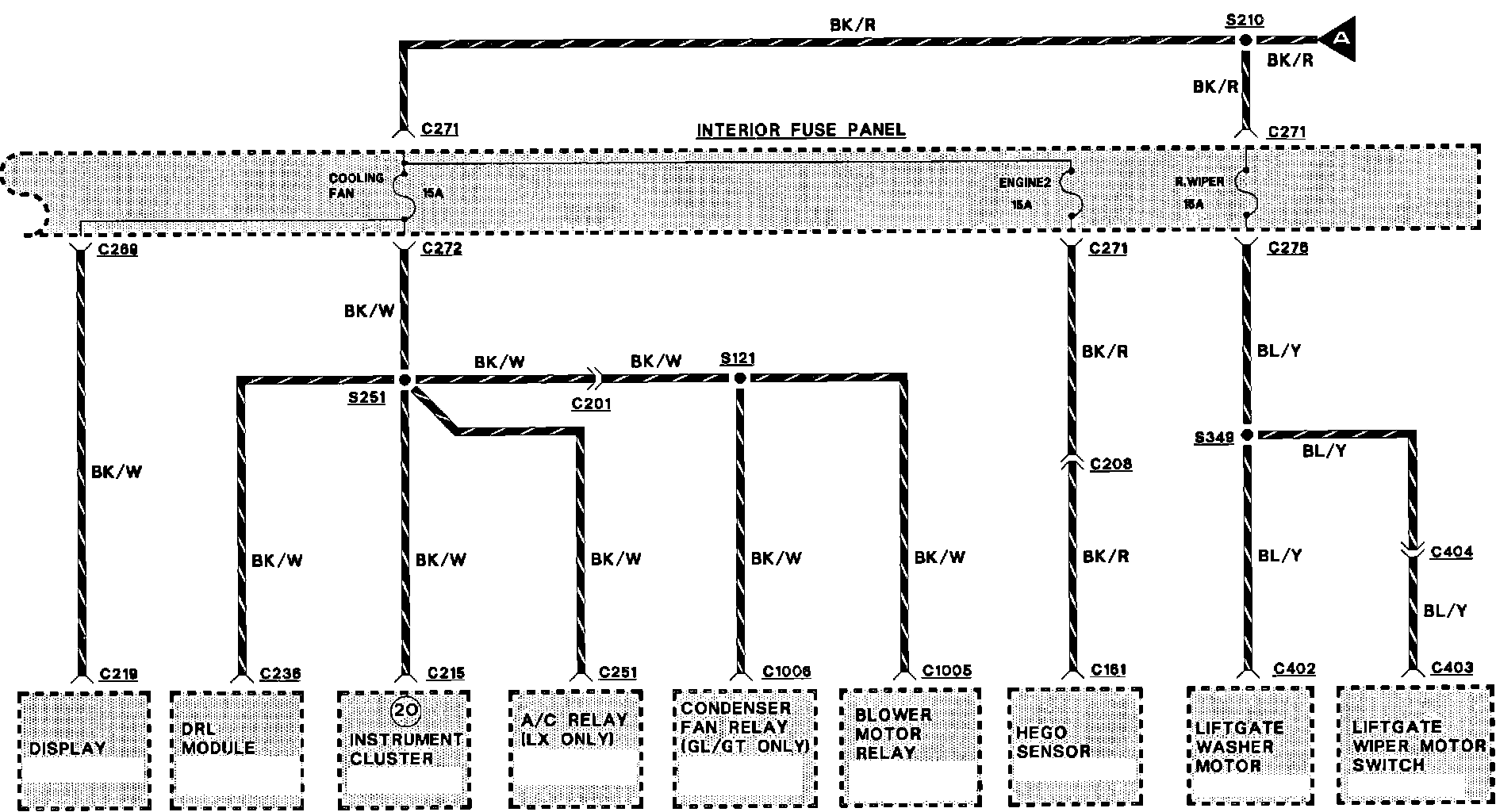

Power Distribution (Fuse 8 - Interior Fuse Panel):



Power Distribution (Fuse 8 - Interior Fuse Panel):



Power Distribution (Fuse 8 - Interior Fuse Panel):



Power Distribution (Fuse 8 - Interior Fuse Panel):



Power Distribution (Fuse 8 - Interior Fuse Panel):
