Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Part 2 of 2

Part 2 of 2

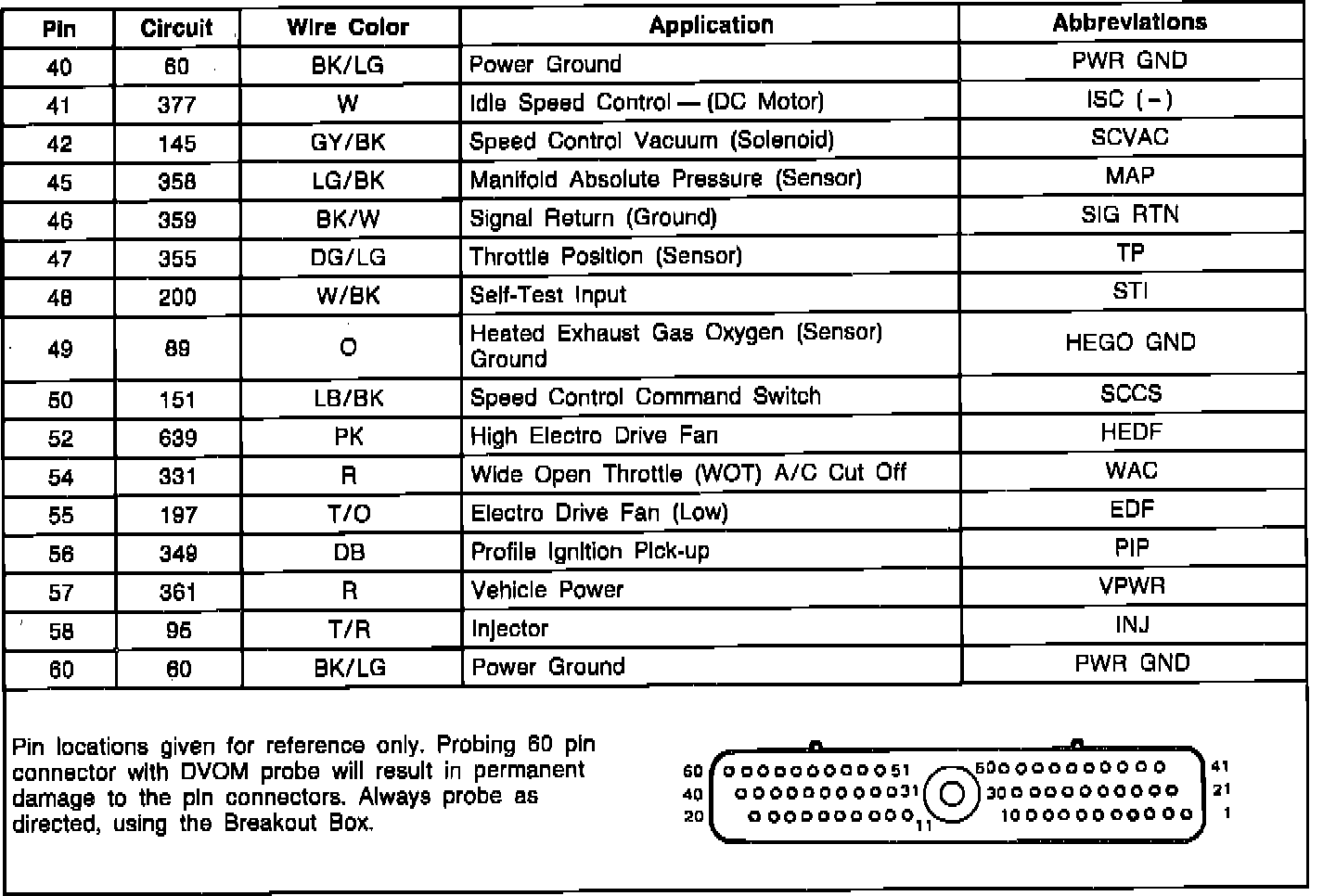

Connector Terminal I.D. - No. 40-60:
