SML - Switch Monitor Lamp
>>
SML1 - SML3
SML1 - SML3

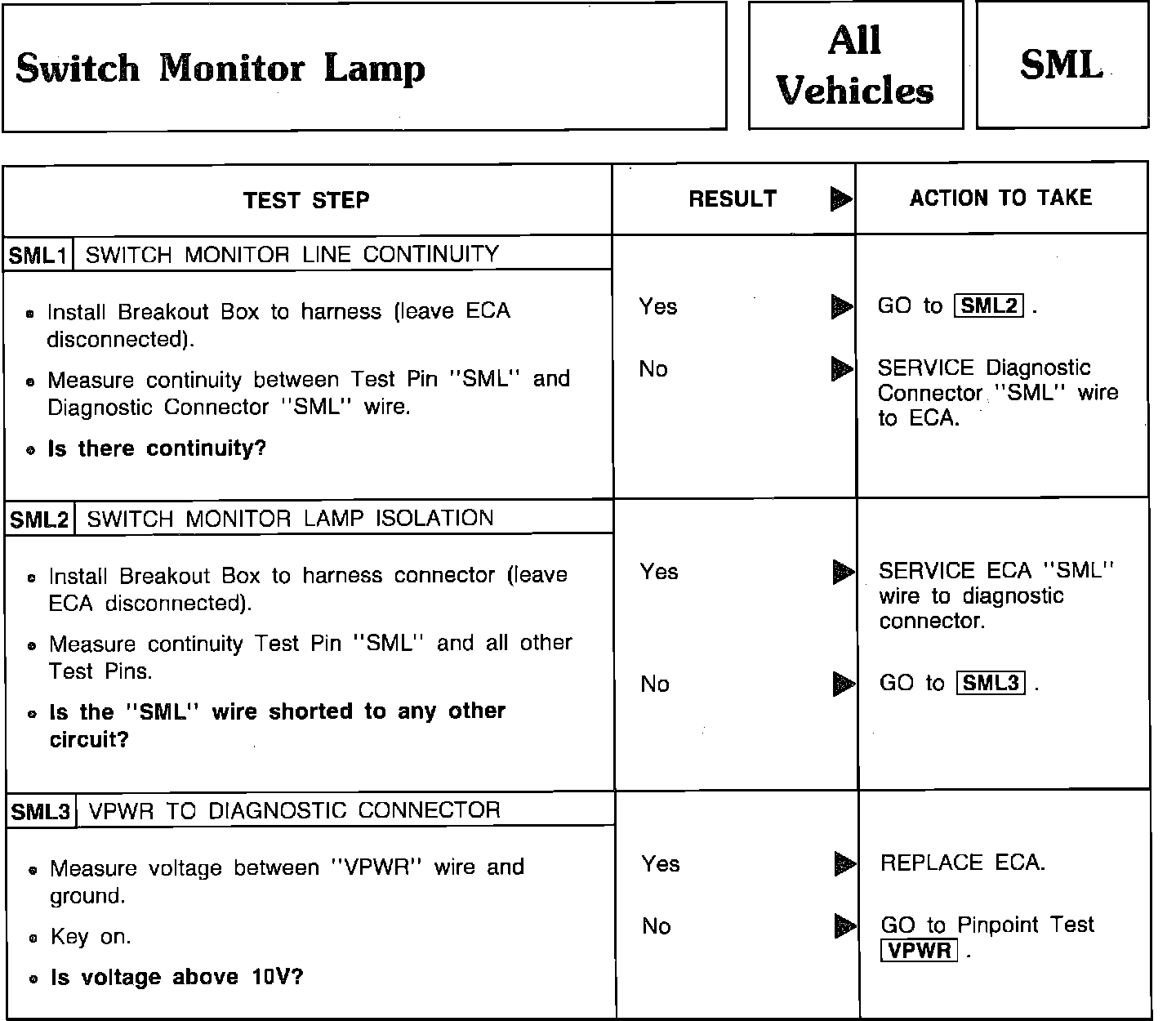

Pinpoint Test SML1 Thru SML3 - Switch Monitor Lamp:
