Home >> Ford >> 1990 >> Festiva L4-81 1.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> STO - Self Test Output >> STO1 - STO2

STO1 - STO2

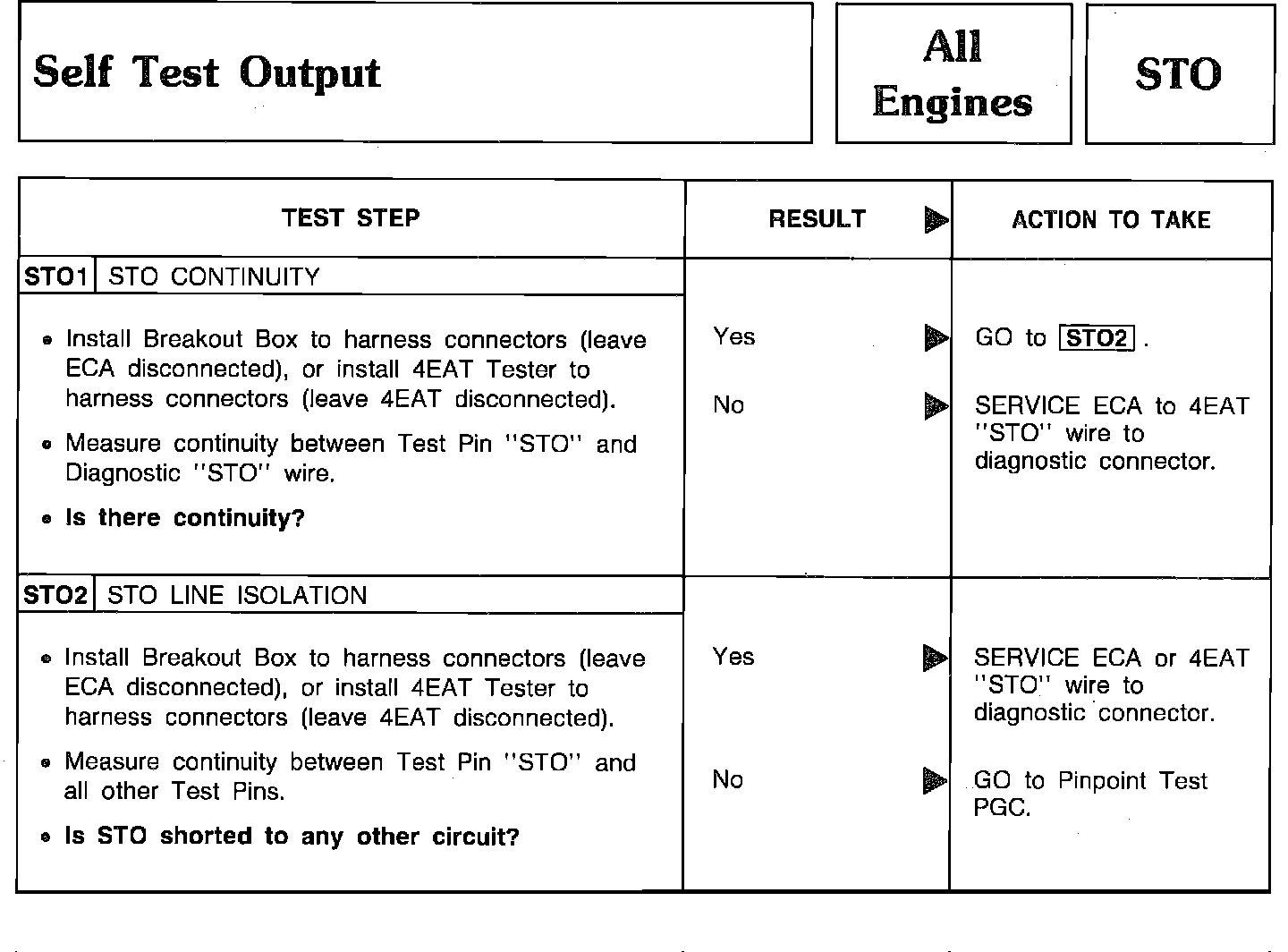

Pinpoint Test STO1 & STO2 - Self Test Output:
